Ignition Coil - Service Manual Revision

BULLETIN NUMBER ISSUE DATE GROUP
SB86-04-007 August 22, 1986 ELECTRICAL
4ZDI IGNITION COIL RESISTANCE (WORKSHOP MANUAL CORRECTION)
VEHICLES AFFECTED

1986 P'UP (KB) and Trooper II (KT) models with 4ZDI gasoline engine.

SERVICE INFORMATION

The ignition coil secondary winding resistance is incorrectly specified in the following manuals:
Manual Page No.

1986 P'UP (KB)
(Publication No. AIMI-SVC-114, 04-52

part No. 2-90999-102-6)

1986 Trooper II (KT)
(Publication No. AIMI-SVC-115, 04-36
part No. 2-90999-104-6)

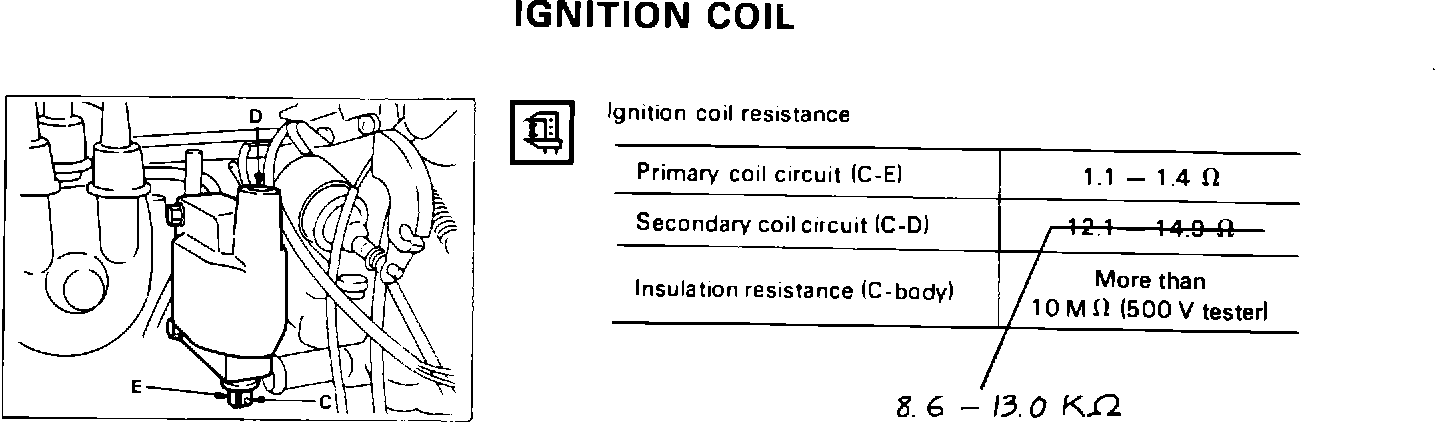

IGNITION COIL CIRCUIT CHECKS:

SERVICE PROCEDURE

Make the following pen-and-ink change on the appropriate page of each referenced workshop manual:
