Isuzu Truck
>>
1986
>>
Pickup L4-2254cc 2.3L SOHC
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Emission Control Systems
>>
Testing and Inspection
>>
Excessive CO Emissions at Idle
Excessive CO Emissions at Idle

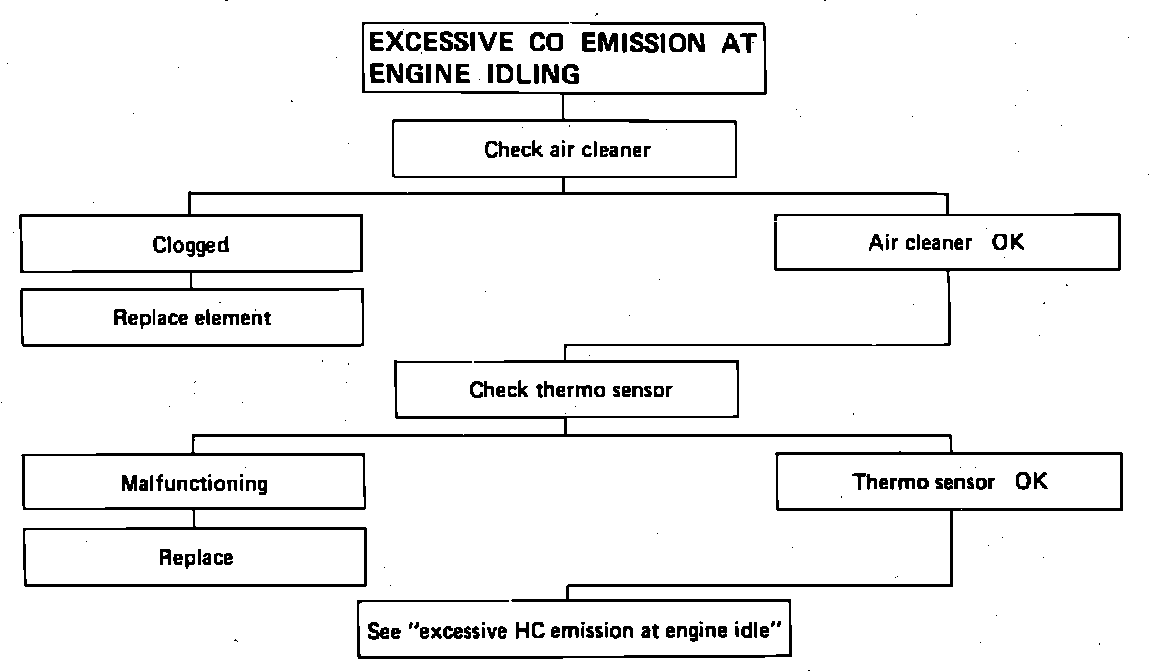

Fig. 39 Emission control troubleshooting:
