Home
>>
Infiniti
>>
2013
>>
G37x Coupe AWD V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Transmission Speed Sensor
>>
Service and Repair
>>
Exploded View

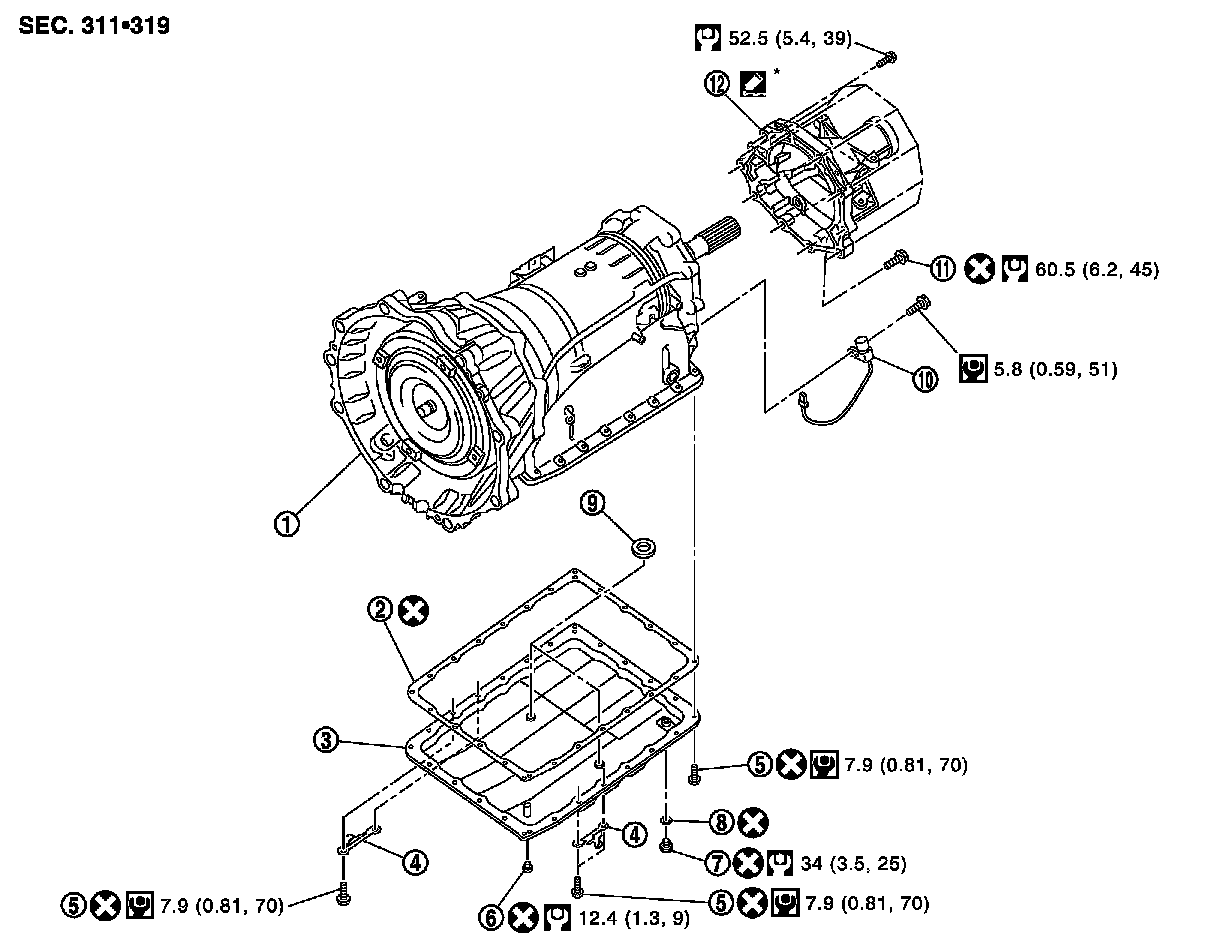

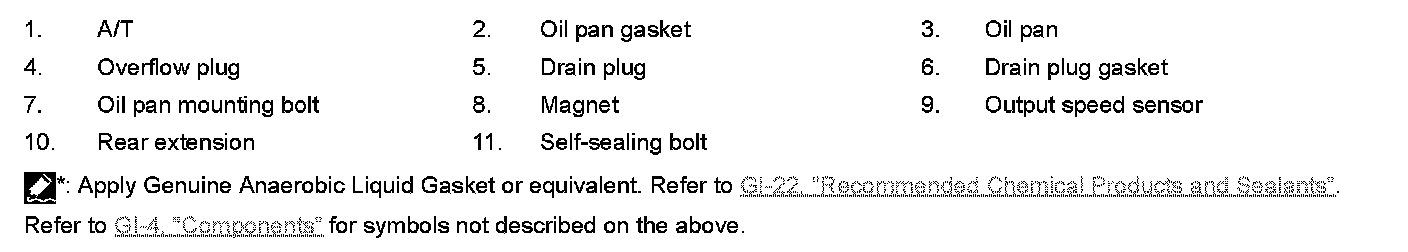

Exploded View
OUTPUT SPEED SENSOR
2WD : Exploded View
