Passenger Seat Control Unit




PASSENGER SEAT CONTROL UNIT

Reference Value

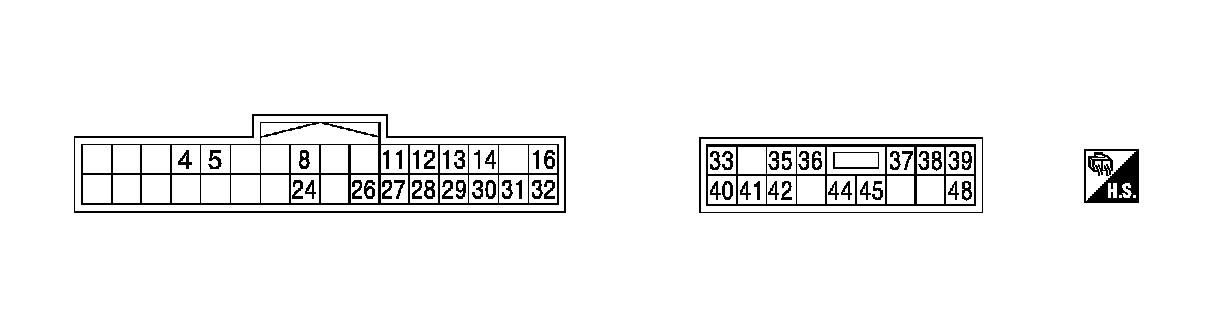

TERMINAL LAYOUT

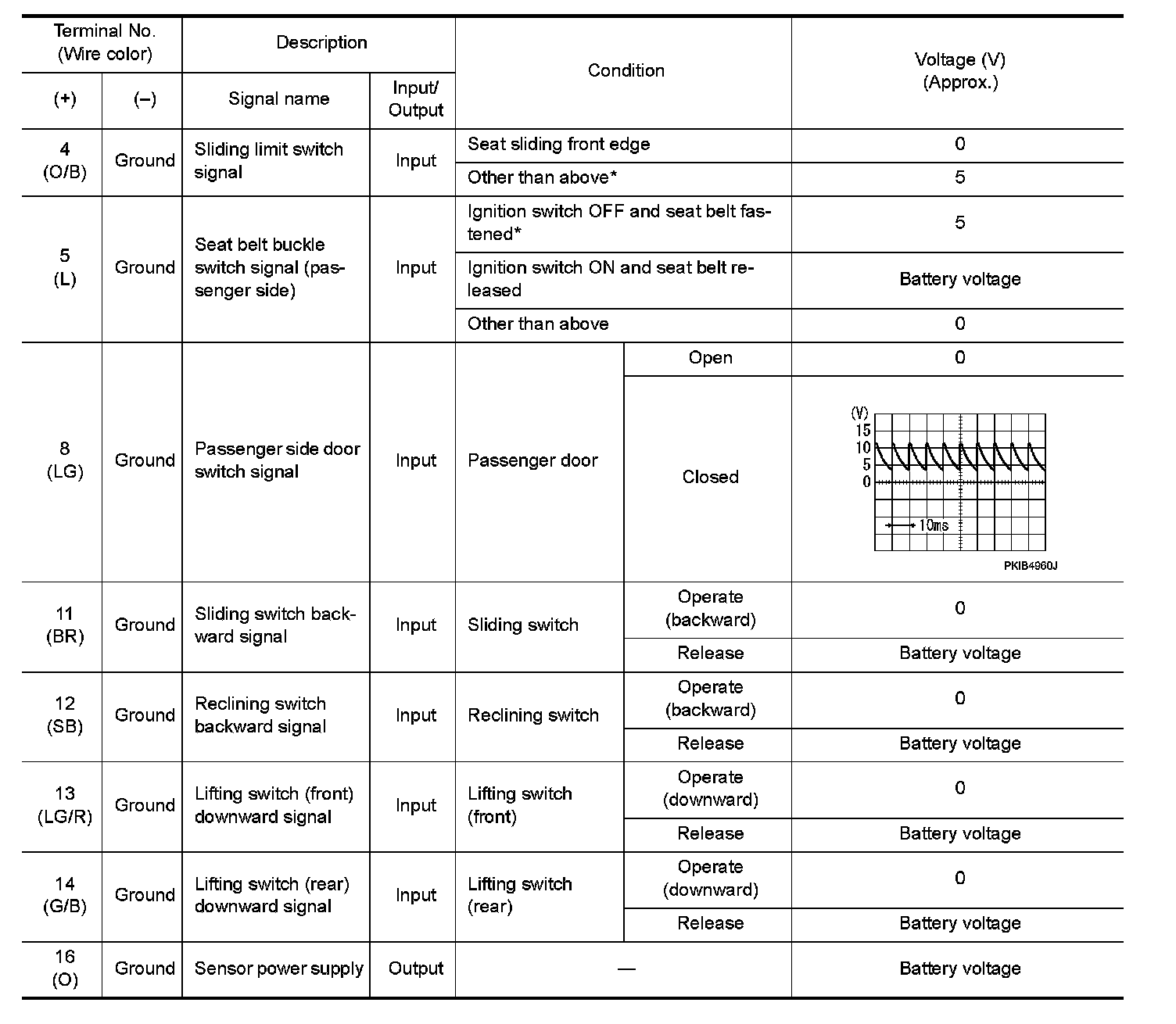

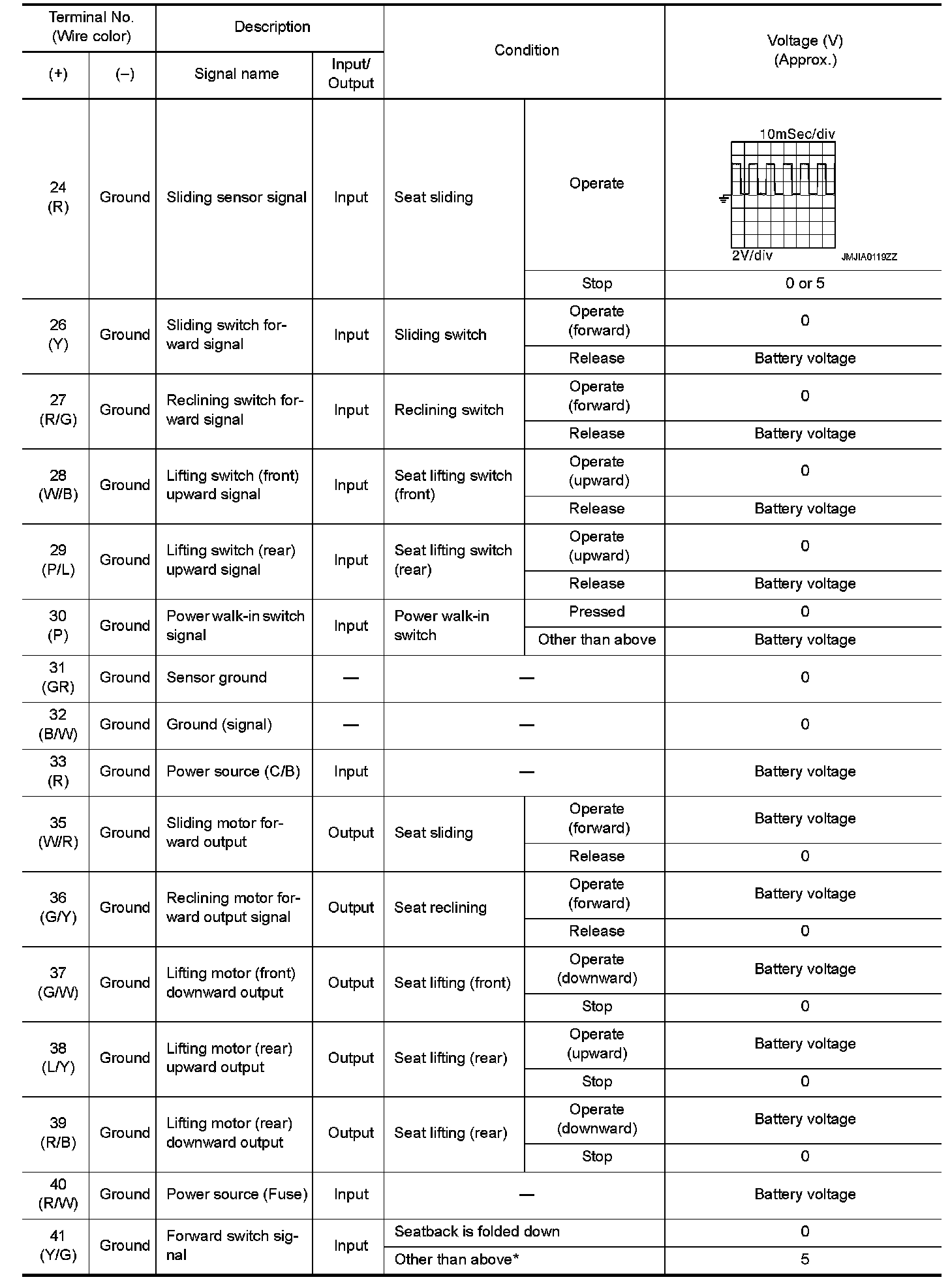

PHYSICAL VALUES
