Automatic Drive Positioner Control Unit
Automatic Drive Positioner Control Unit
AUTOMATIC DRIVE POSITIONER CONTROL UNIT
Reference Value

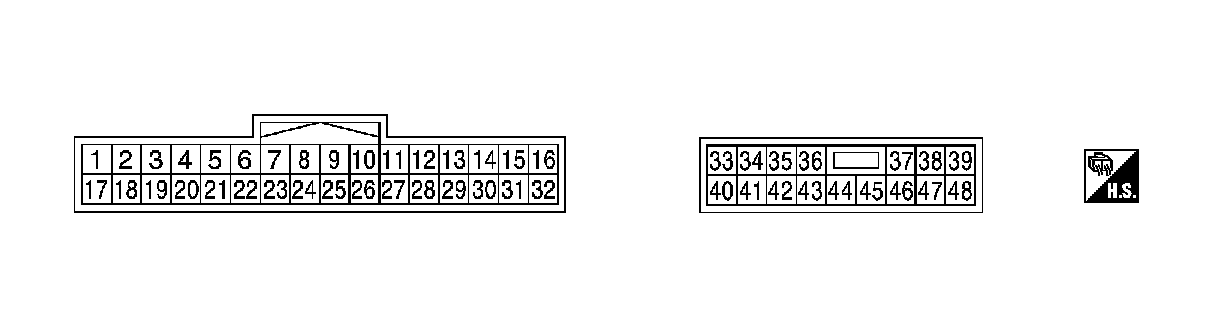

TERMINAL LAYOUT

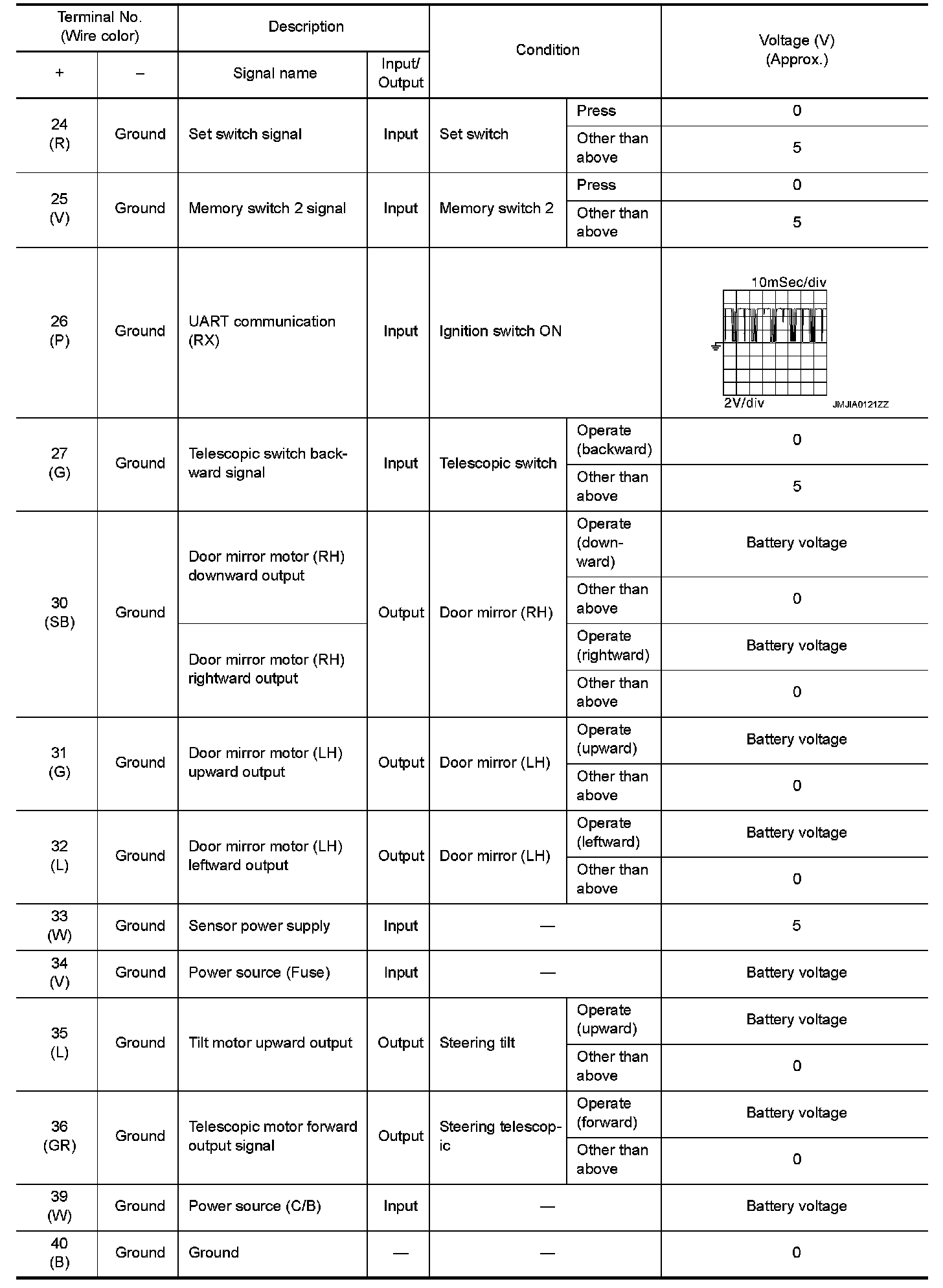

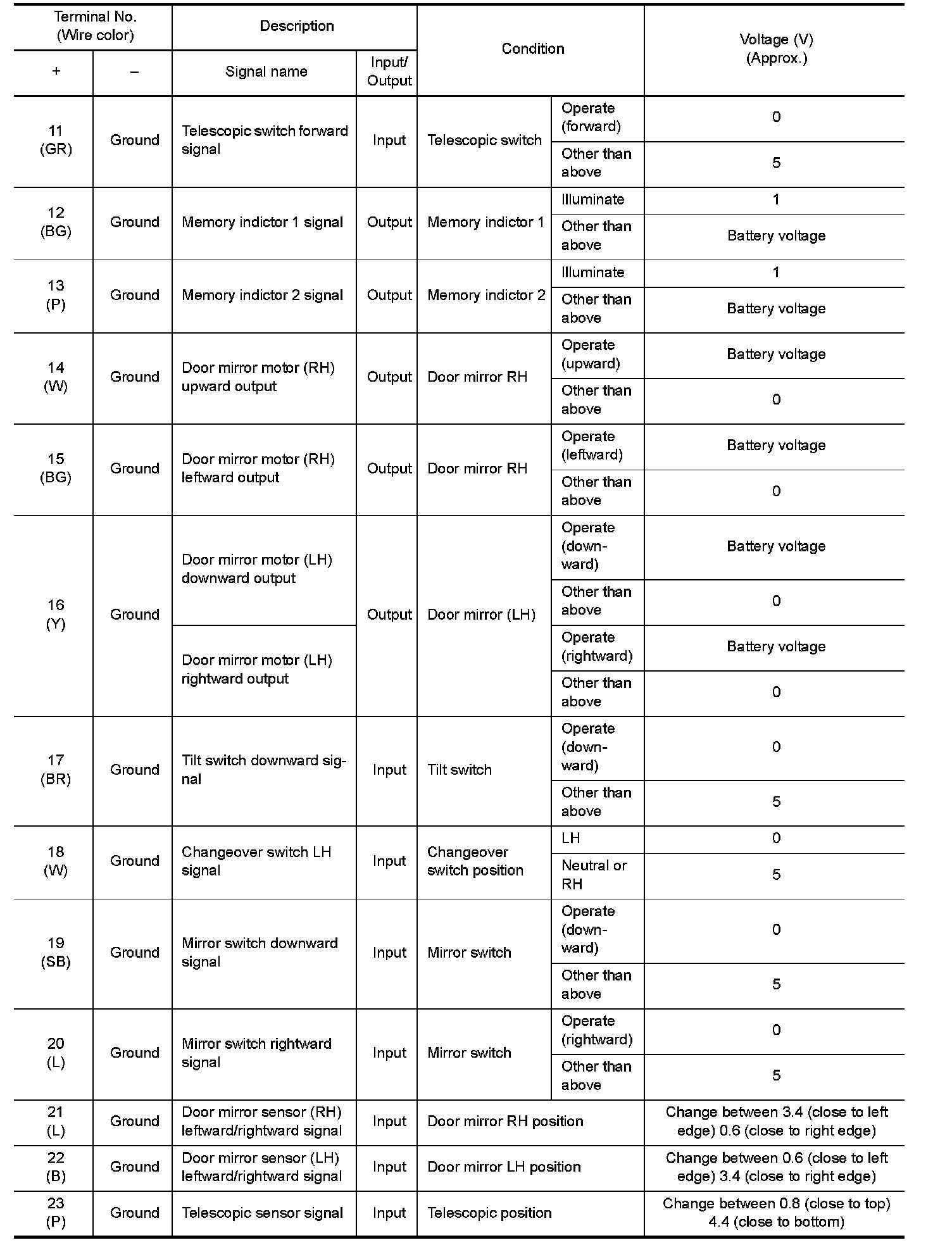

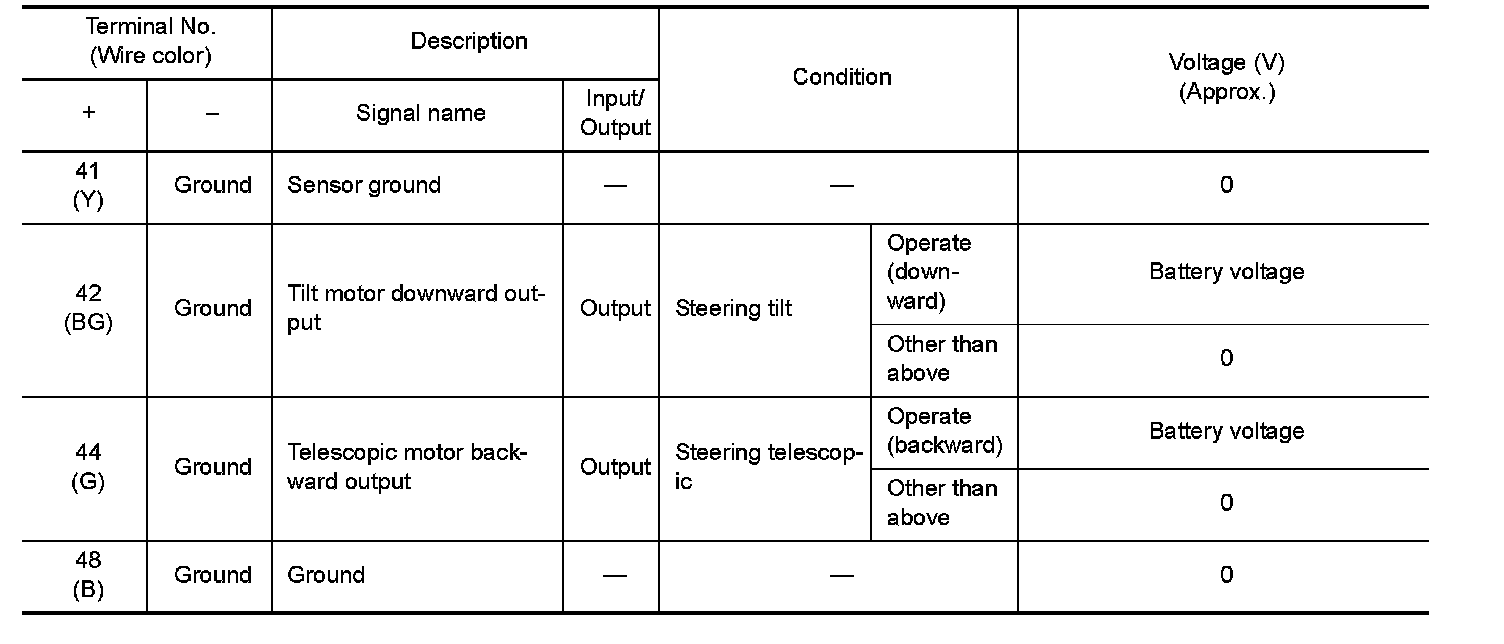

PHYSICAL VALUES
