Home >> Infiniti >> 2013 >> G37 Sedan V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Windows and Glass >> Windows >> Testing and Inspection >> Pinout Values and Diagnostic Parameters >> Power Window Main Switch >> Front Window Anti-Pinch

Front Window Anti-Pinch




POWER WINDOW MAIN SWITCH

Reference Value

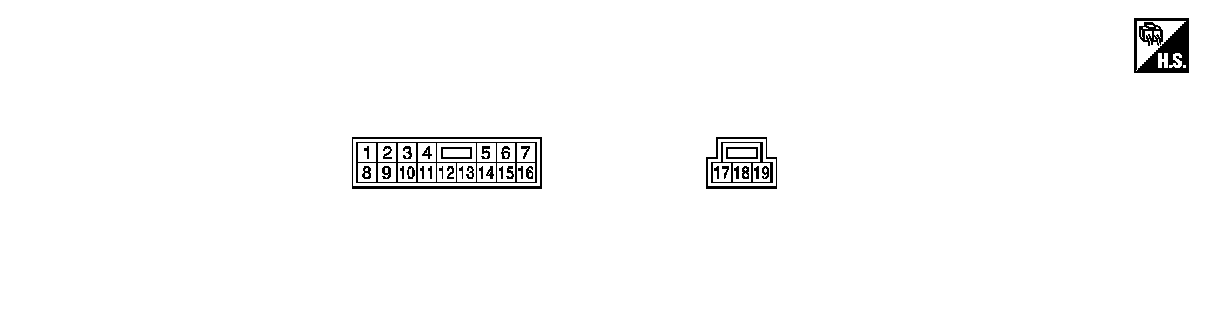

TERMINAL LAYOUT

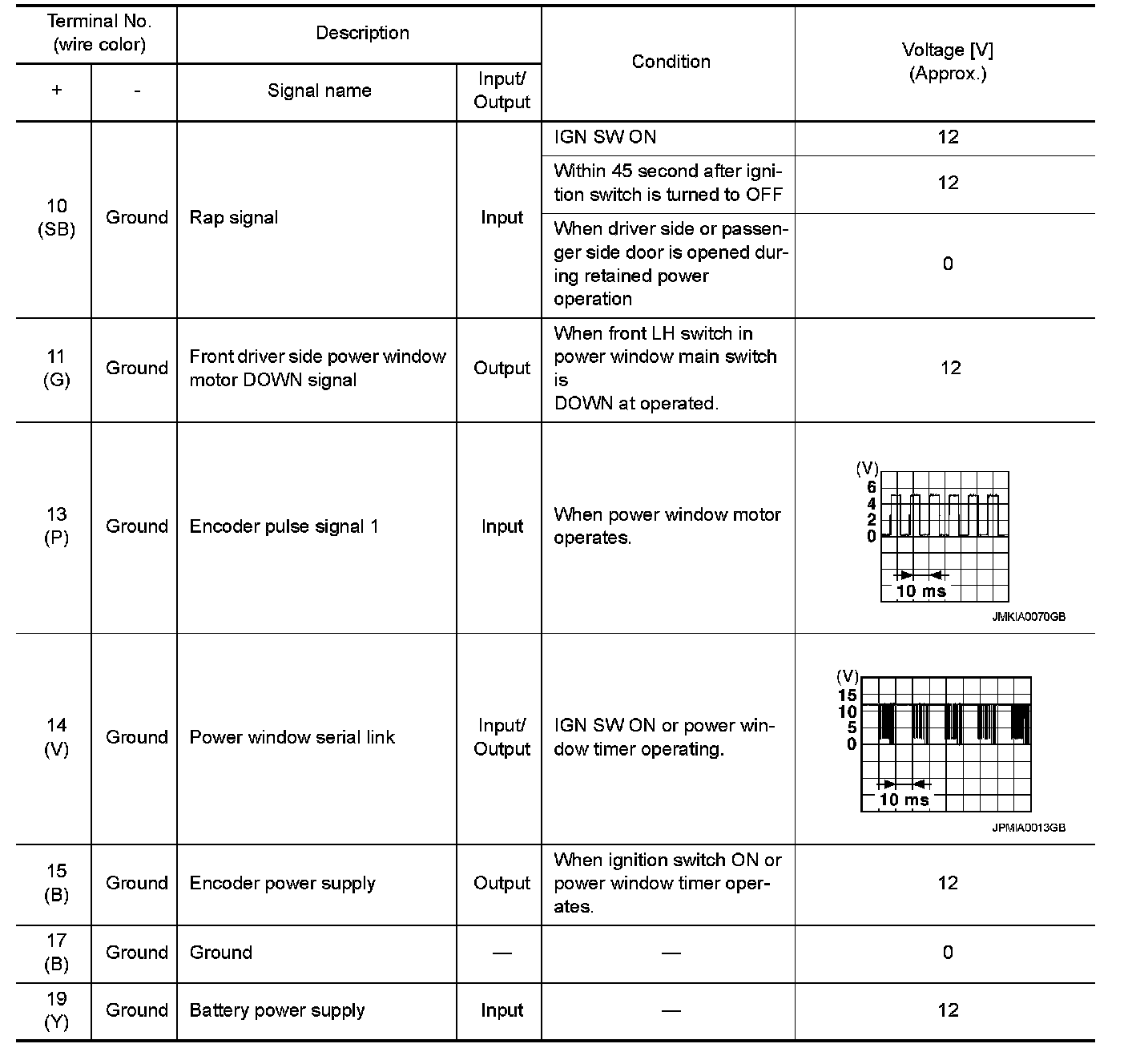

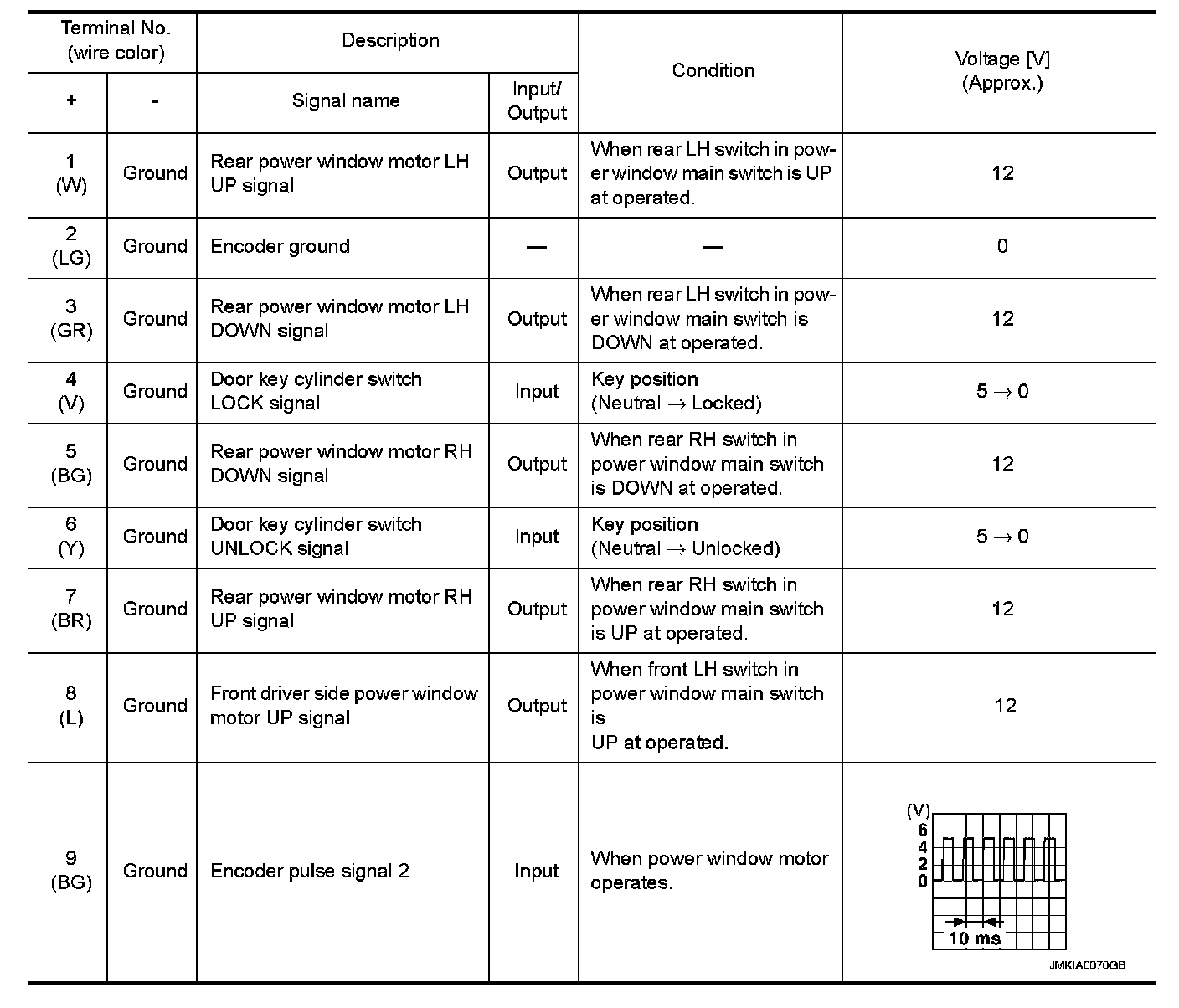

PHYSICAL VALUES
