Power Window Main Switch
>>
Front & Rear Window Anti-Pinch
Front & Rear Window Anti-Pinch
POWER WINDOW MAIN SWITCH

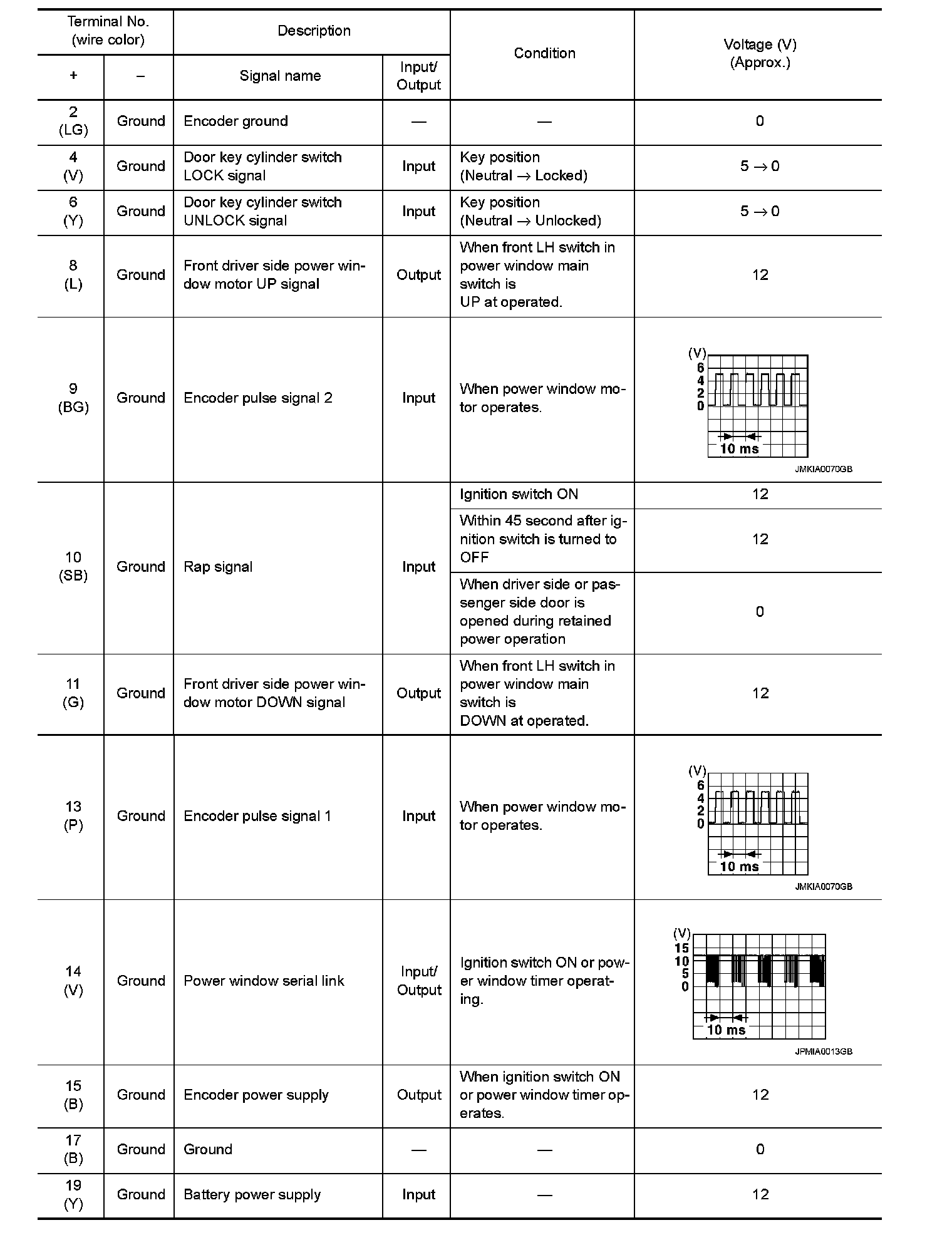

Reference Value

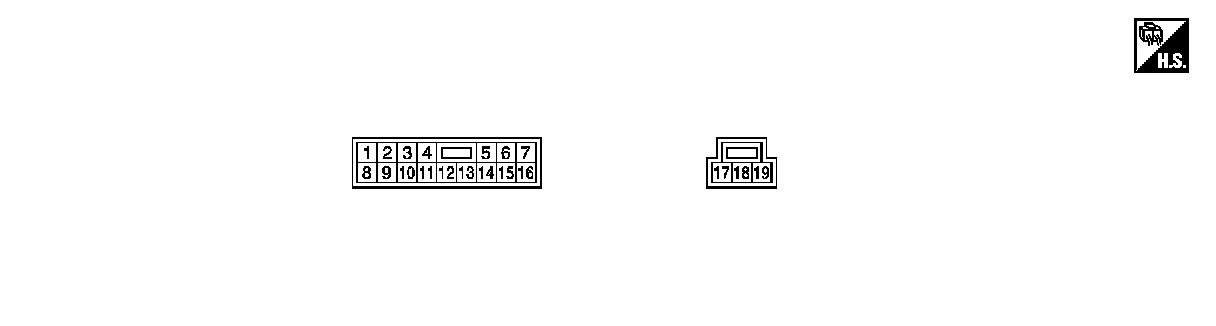

TERMINAL LAYOUT
PHYSICAL VALUES
