Curiosii for ever!: Car repair manuals for everyone.
Home >> Infiniti >> 2013 >> G37 Sedan V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Service and Repair >> Overhaul >> Rear Final Drive R200V >> Drive Pinion >> Exploded View >> A/T

A/T




DRIVE PINION

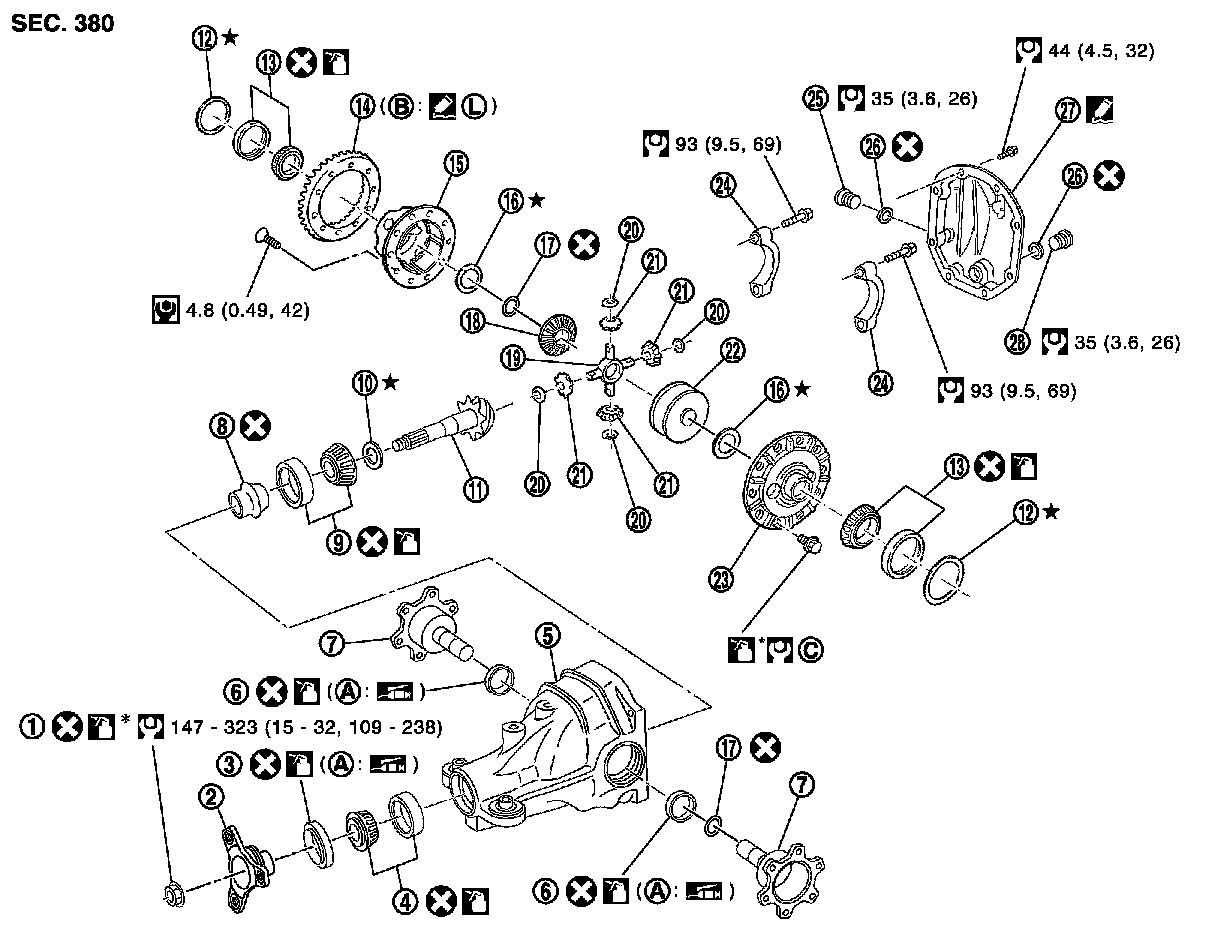

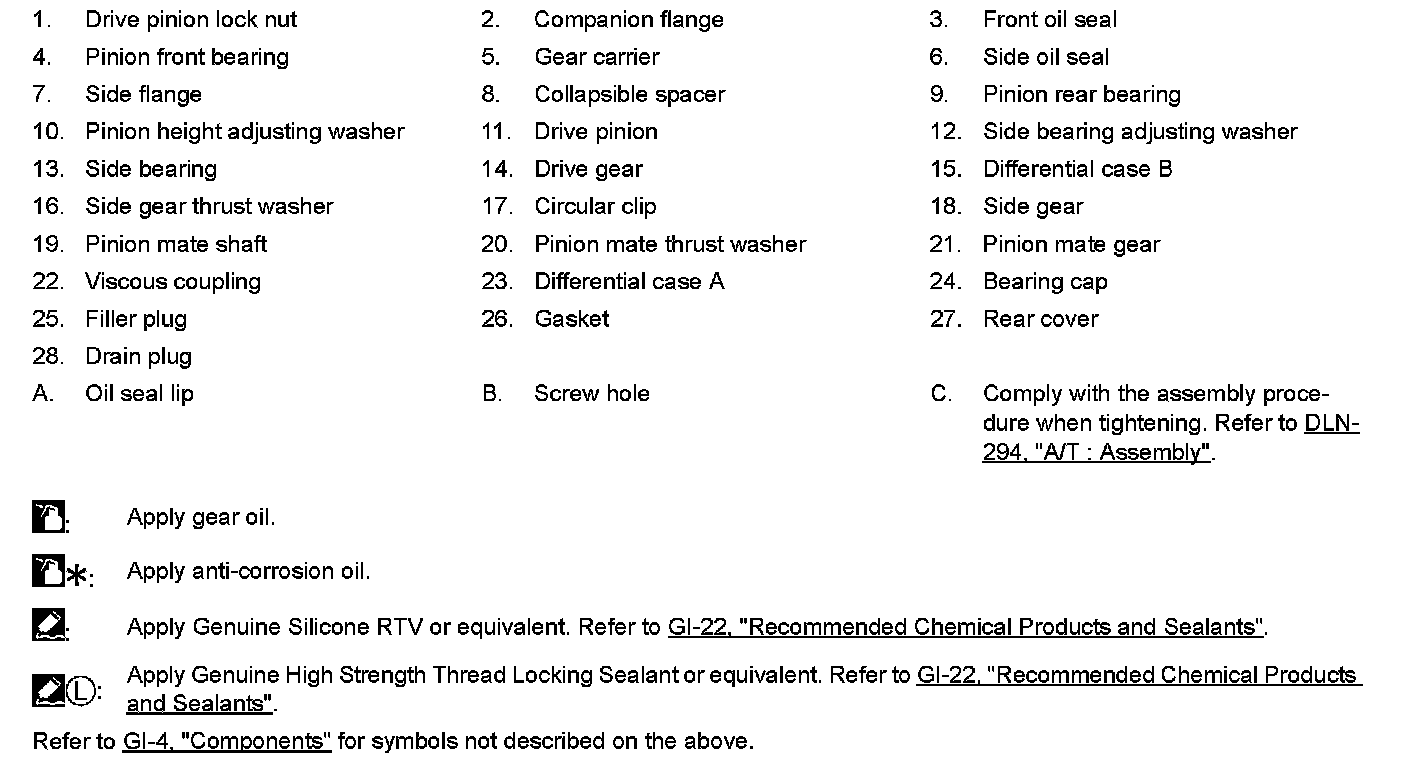

A/T : Exploded View
