Crankshaft Main Bearing

SERVICE DATA AND SPECIFICATIONS (SDS)

Main Bearing


MAIN BEARING

Unit: mm (in)

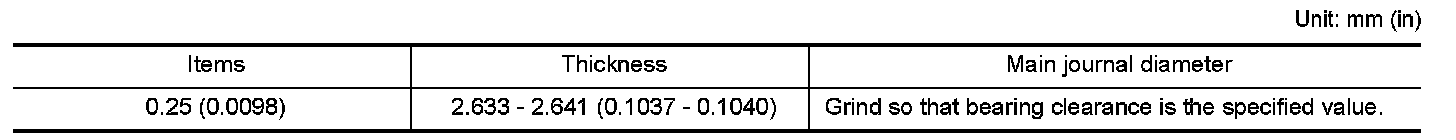

UNDERSIZE

Unit: mm (in)

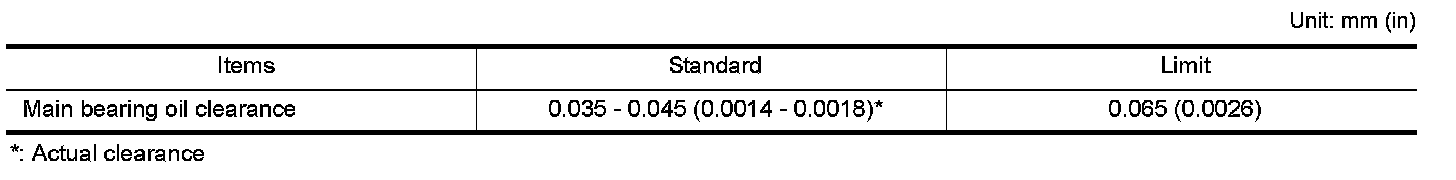

MAIN BEARING OIL CLEARANCE

Unit: mm (in)





Lower Cylinder Block Bolts:

a.Apply new engine oil to threads and seat surfaces of lower cylinder block bolts.

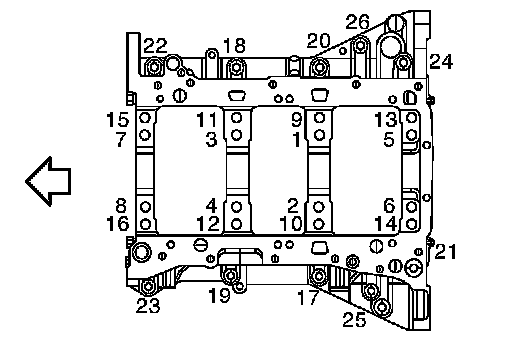

b.Tighten bolts (No. 17 to 26) in numerical order as shown in the figure.






Tighten 25.0 Nm (2.6 kg-m, 18 ft-lb)


c.Repeat step b.


d.Tighten bolts (No. 1 to 16) in numerical order as shown in the figure.











Tighten 35.3 Nm (3.6 kg-m, 26 ft-lb)
Tighten Bolts (No. 1 to 16) 90 degrees clockwise (angle tightening)
