Inspection

REAR DIFFERENTIAL GEAR OIL

Inspection


OIL LEAKAGE

- Make sure that oil is not leaking from final drive assembly or around it.

OIL LEVEL

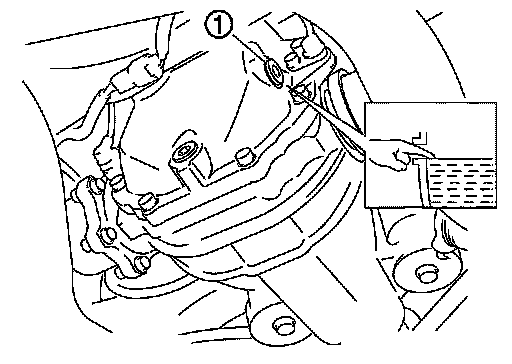

- Remove filler plug (1) and check oil level from filler plug mounting hole as shown in the figure.

CAUTION:
Never start engine while checking oil level.
- Set a gasket on filler plug and install it on final drive assembly.
Refer to "M/T : Exploded View" M/T (M/T models), "A/T : Exploded View" A/T (A/T models).

CAUTION:
Never reuse gasket.
