Draining

REAR DIFFERENTIAL GEAR OIL

Draining

1.Stop the engine.

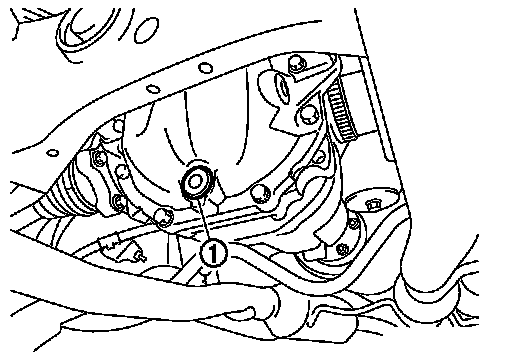

2.Remove drain plug (1) and drain gear oil.
3.Set a gasket on drain plug and install it to final drive assembly and tighten to the specified torque. Refer to "2WD (VQ25HR) : Exploded View" Exploded View [2WD (VQ25HR)], {LINK_TO:0000000008296731}, "2WD
(VQ37VHR) : Exploded View" [2WD (VQ37VHR)], "AWD : Exploded View" Exploded View (AWD).

CAUTION:
Never reuse gasket.
