Multi AV System Base Audio

MULTI AV SYSTEM

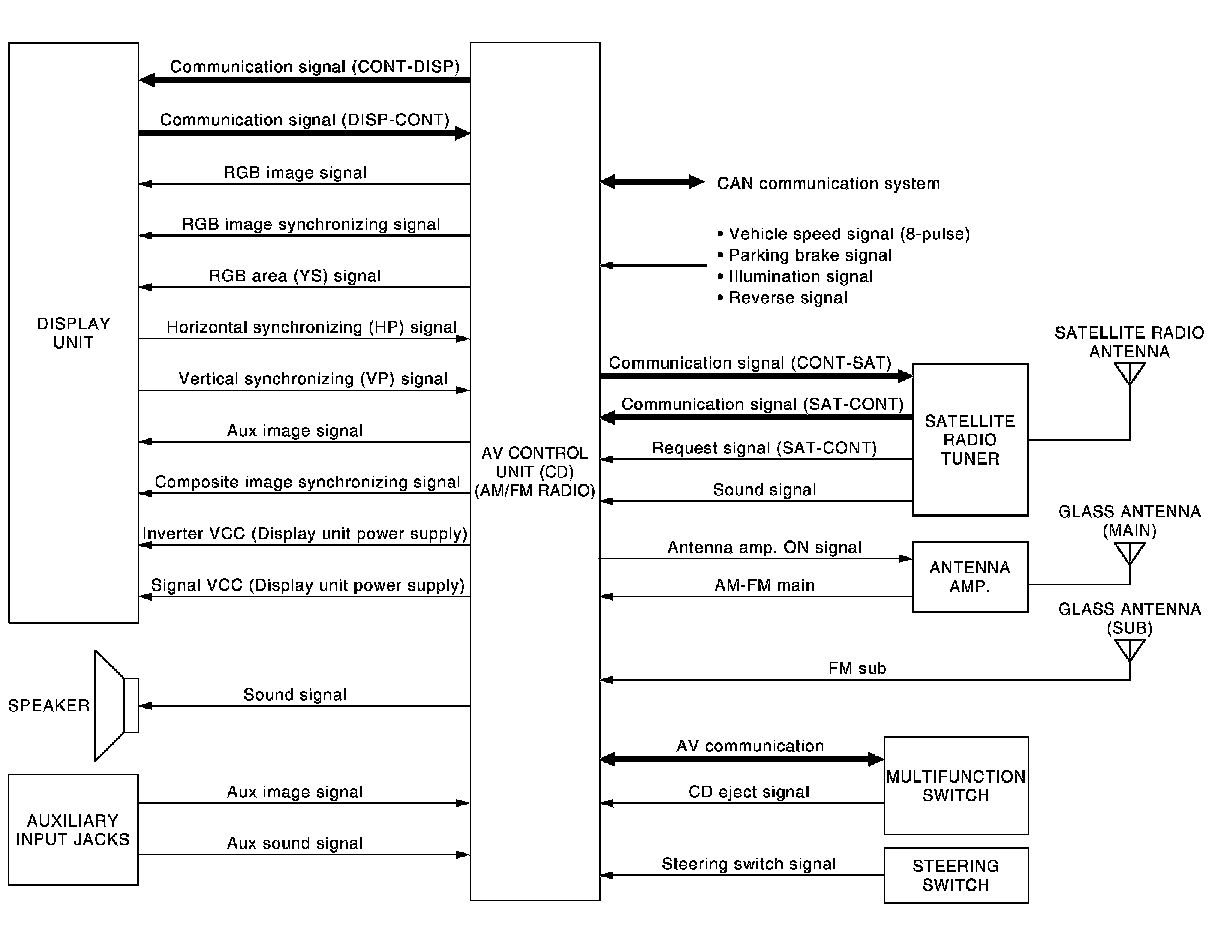

System Diagram






NOTE:
- The name MULTIFUNCTION SWITCH indicates the integration of PRESET SWITCH and MULTIFUNCTION
SWITCH virtually.
- Satellite radio is not used.
