Infiniti
>>
2013
>>
G37 Sedan V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Navigation System
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Reference Value
>>
Base Audio
>>
With Rear View Camera
With Rear View Camera
DISPLAY UNIT

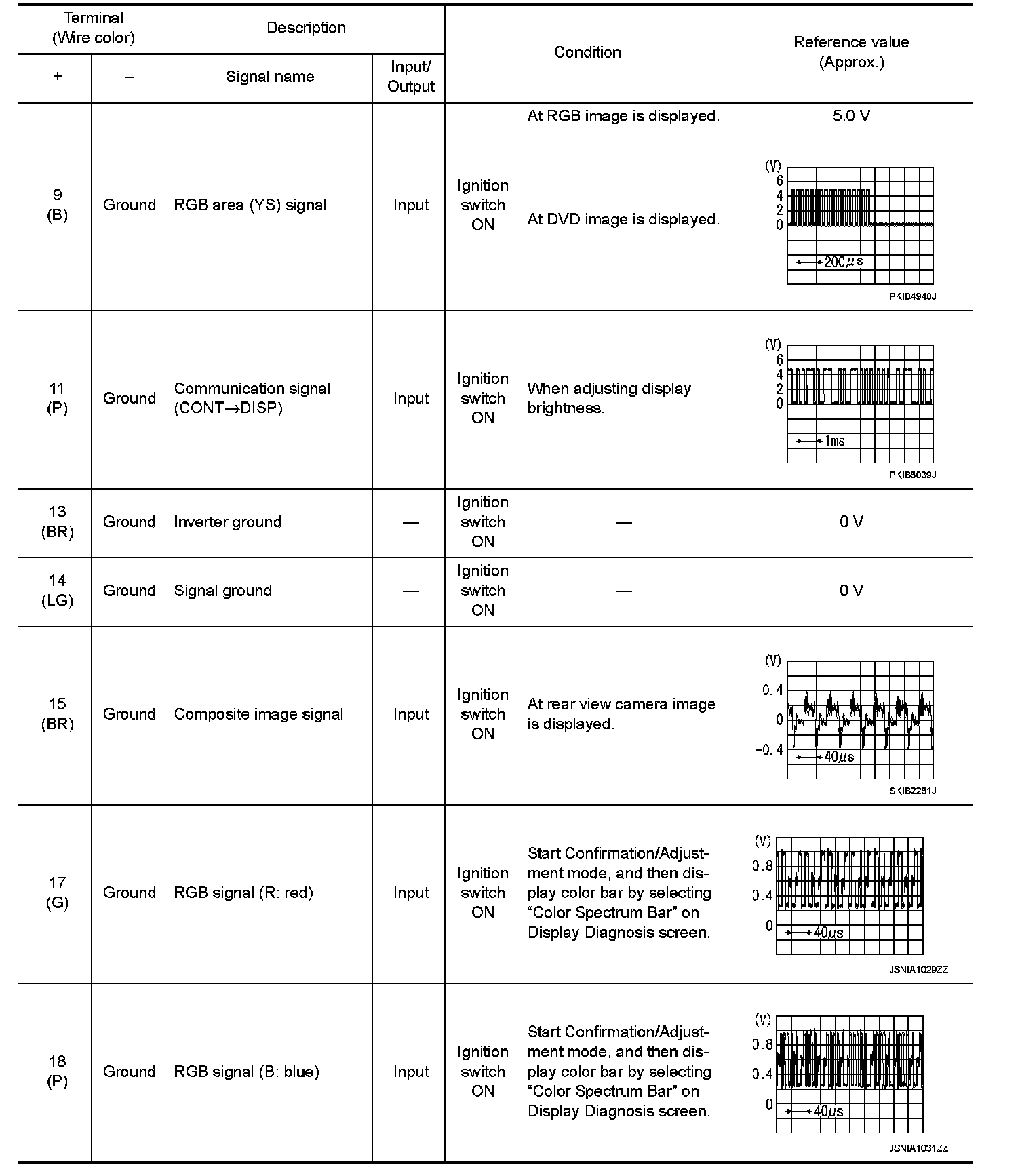

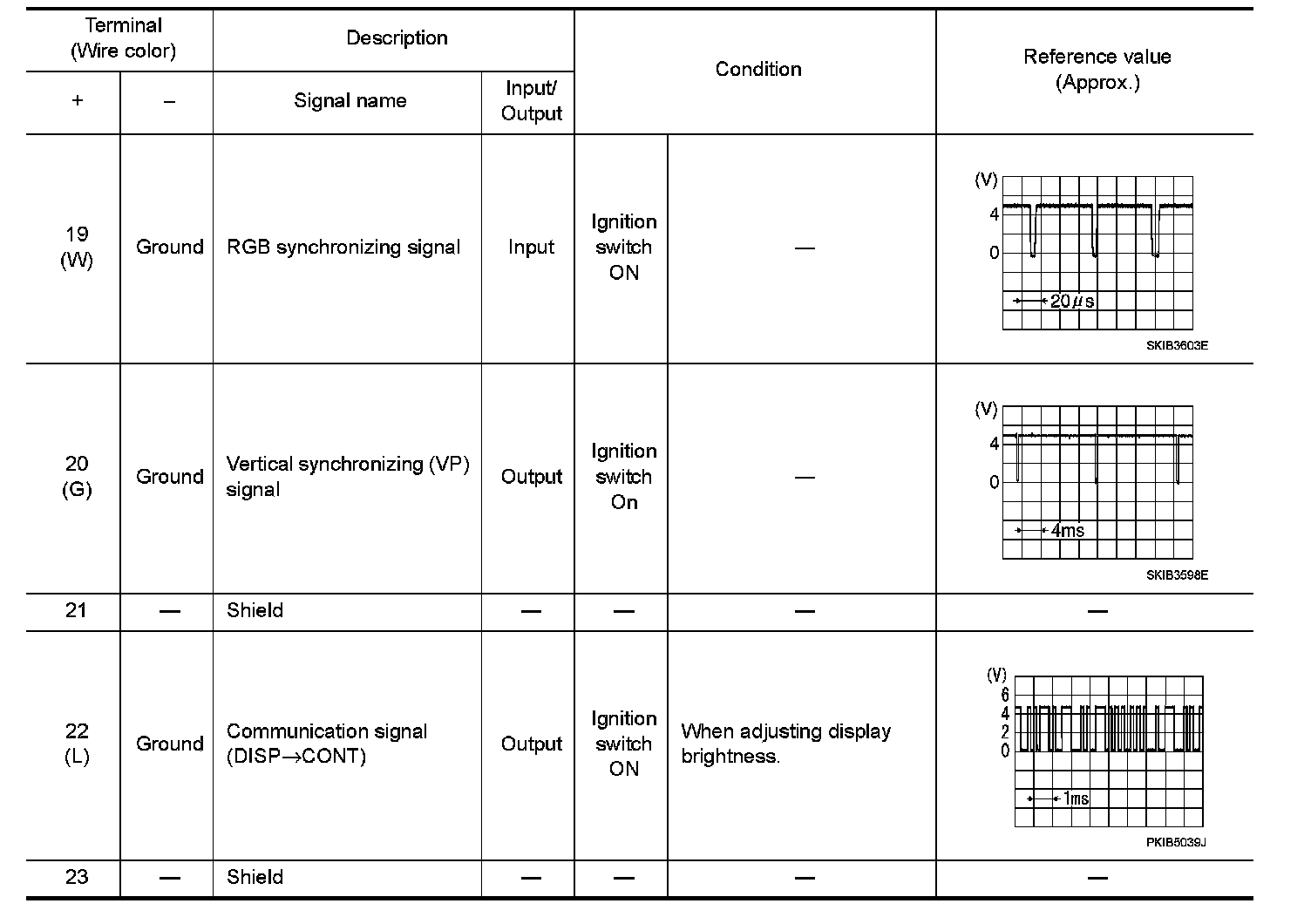

Reference Value
TERMINAL LAYOUT
PHYSICAL VALUES
