Home >> Infiniti >> 2013 >> G37 Convertible V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Transmission and Drivetrain >> Differential Assembly >> Service and Repair >> Removal and Replacement >> Exploded View >> A/T

A/T




REAR FINAL DRIVE ASSEMBLY

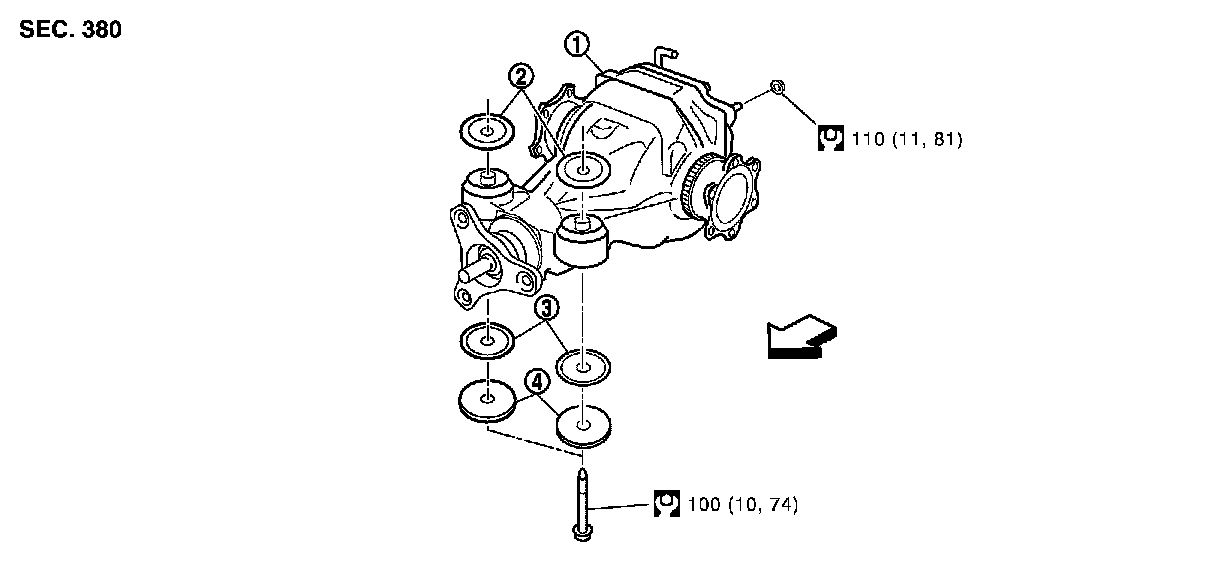

A/T : Exploded View
