Home
>>
Infiniti
>>
2013
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Starting and Charging
>>
Charging System
>>
Alternator
>>
Service and Repair
>>
Exploded View
Exploded View
ALTERNATOR
Exploded View

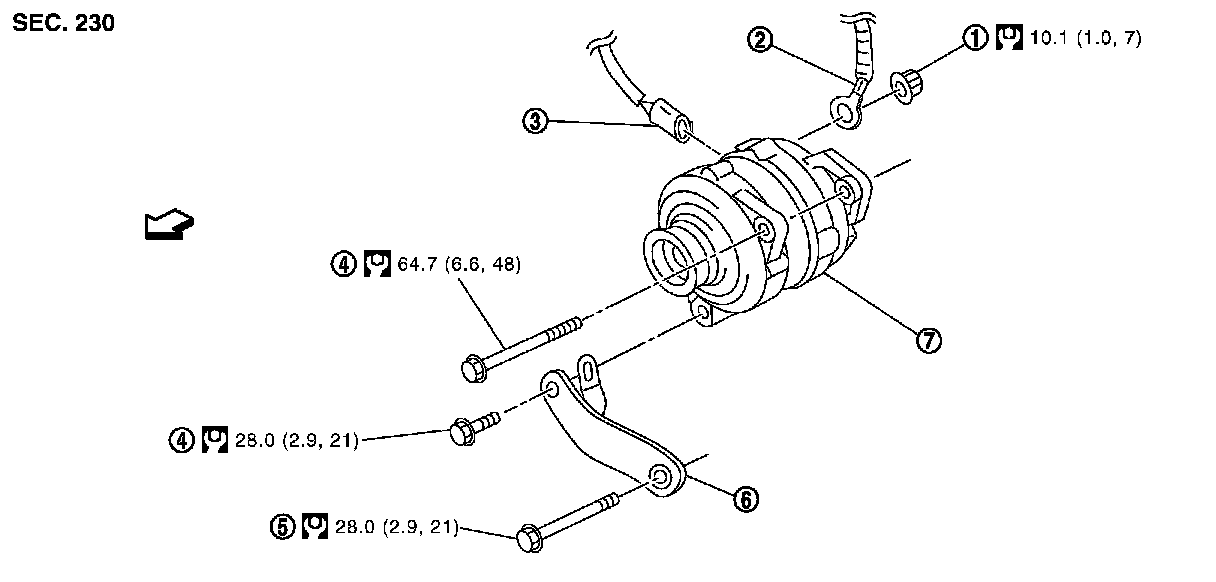

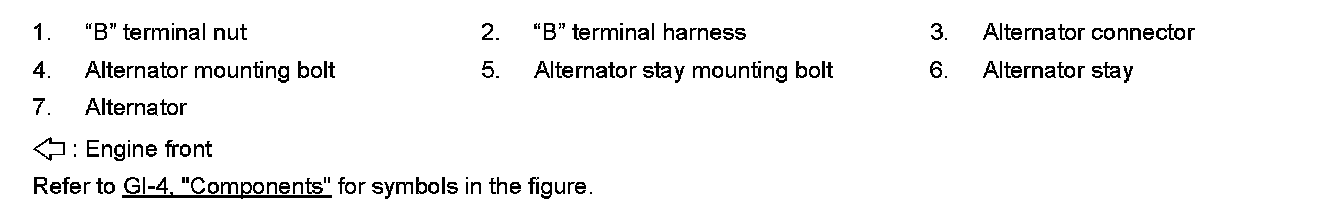

REMOVAL

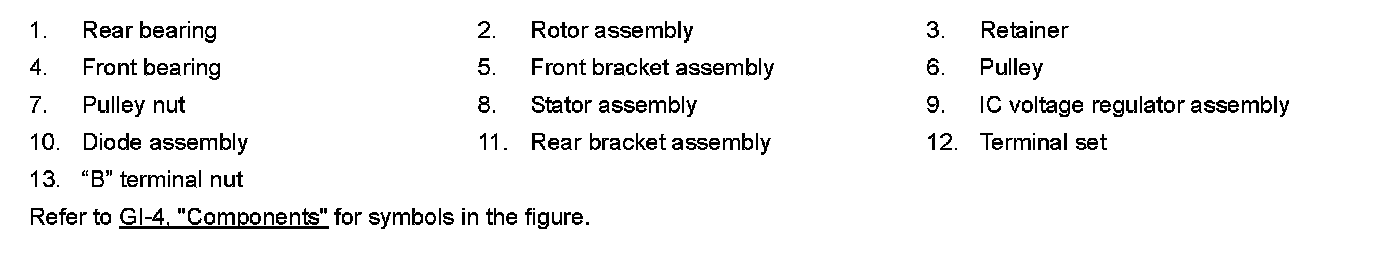

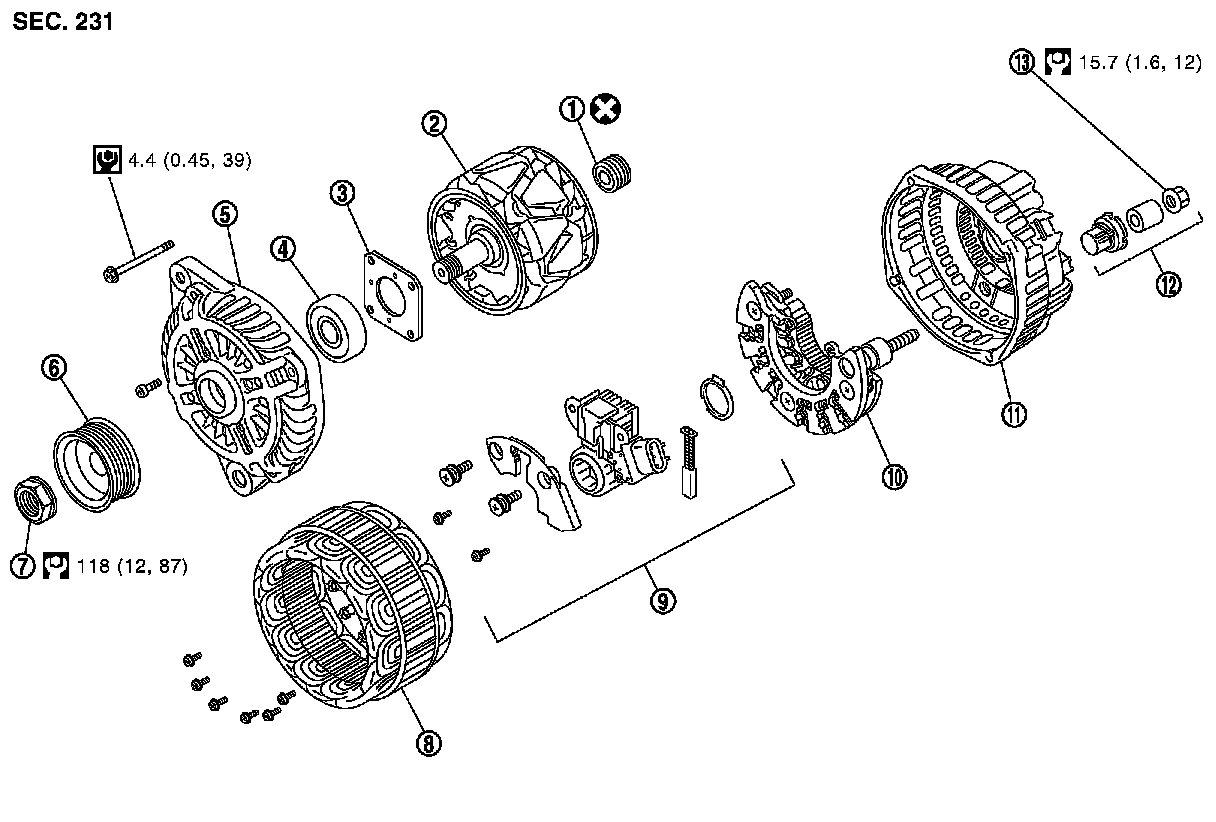

DISASSEMBLY
