Heated Seat Control Unit




HEATED SEAT CONTROL UNIT

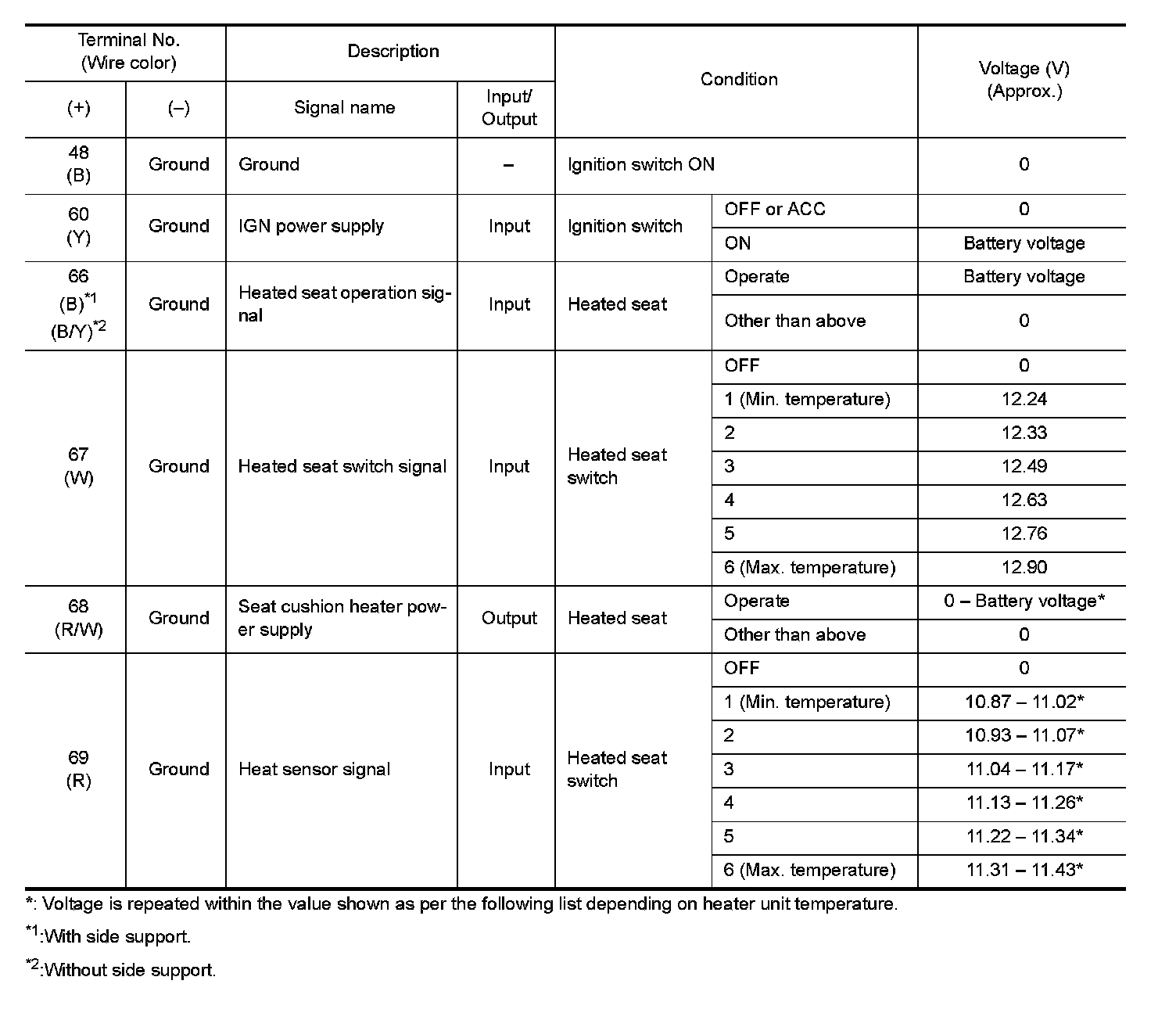

Reference Value

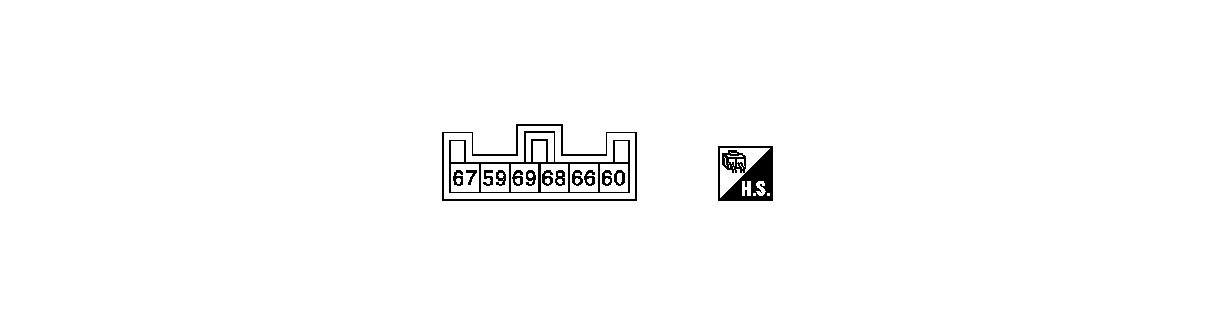

TERMINAL LAYOUT







PHYSICAL VALUES
