G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Body and Frame
>>
Seats
>>
Description and Operation
>>
Power Seat For Driver Side
>>
Power Walk-In Function
>>
System Diagram
System Diagram
POWER SEAT FOR DRIVER SIDE

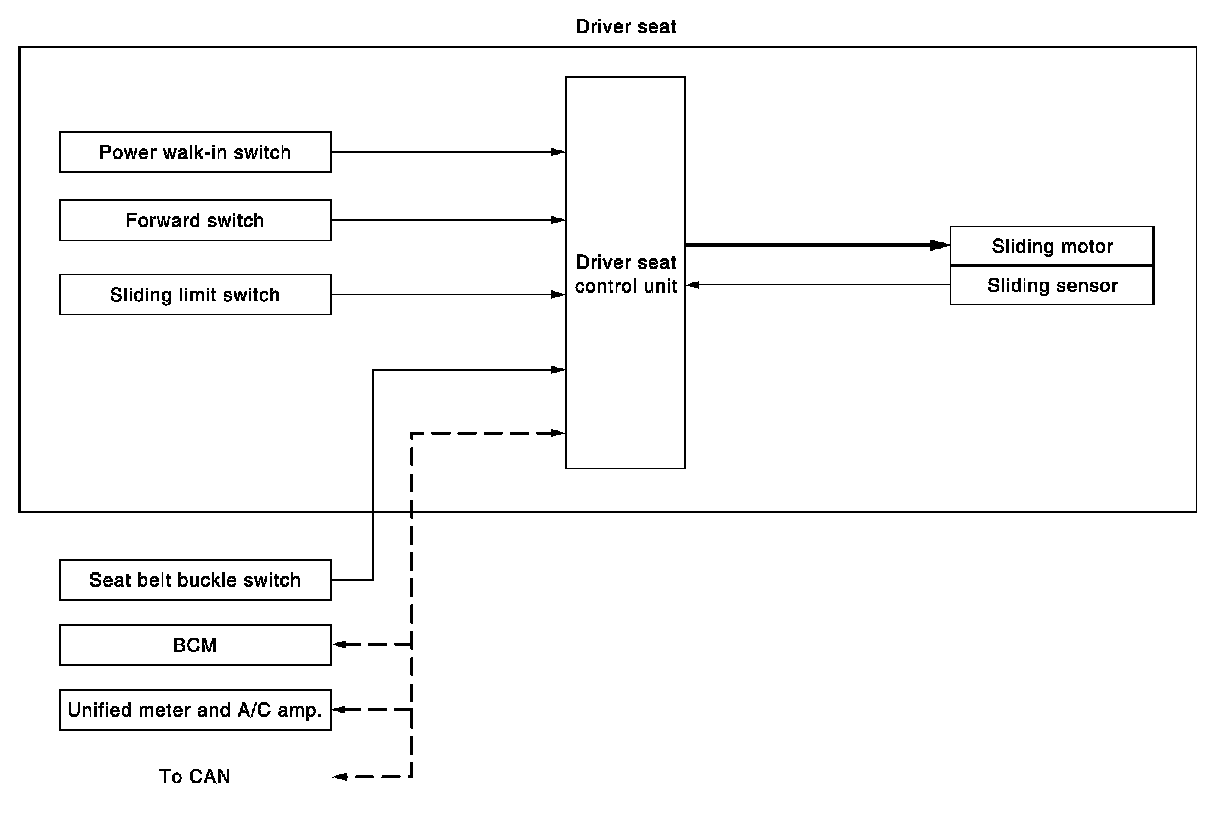

POWER WALK-IN FUNCTION : System Diagram
