Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2010
>>
M45x AWD V8-4.5L (VK45DE)
>>
Repair and Diagnosis
>>
Windows and Glass
>>
Heated Glass Element
>>
Description and Operation
>>
Rear Window Defogger
>>

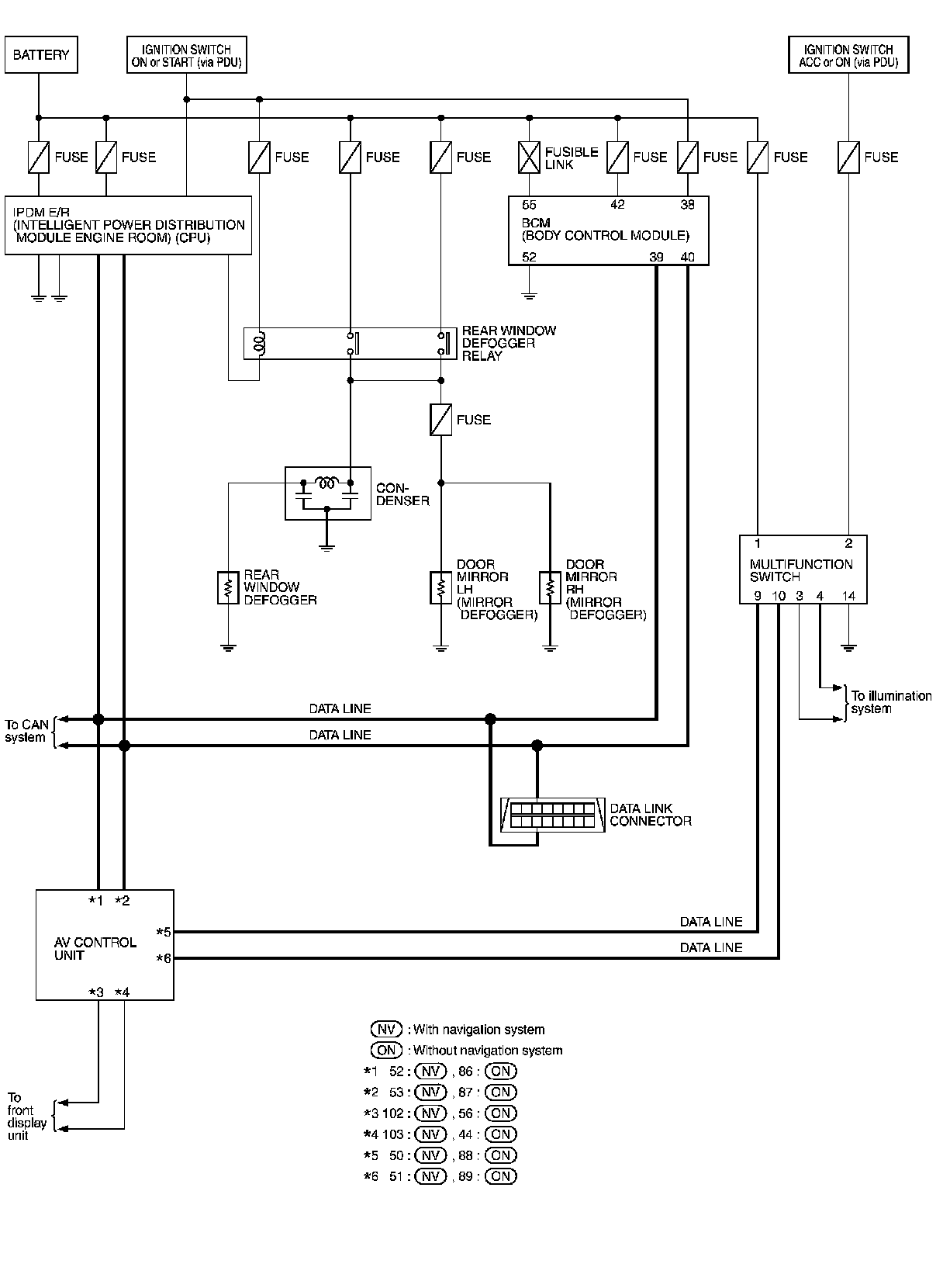

Schematic
Schematic
REAR WINDOW DEFOGGER
Schematic
