Front Final Drive

DIFFERENTIAL GEAR OIL


Changing Differential Gear Oil


DRAINING
1. Stop engine.

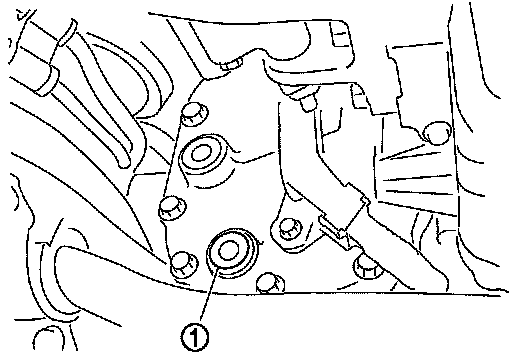

2. Remove drain plug (1) and drain gear oil.
3. Set a gasket on drain plug (1) and install it to final drive assembly and tighten to the specified torque. Disassembly and Assembly.

CAUTION:
Never reuse gasket.

FILLING

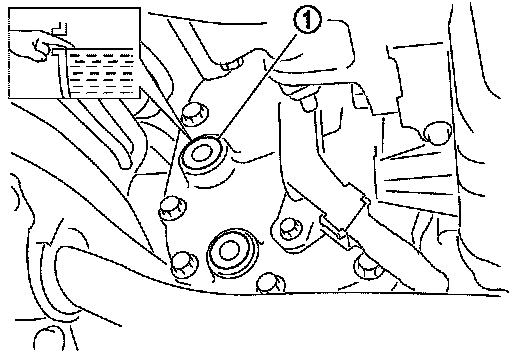

1. Remove filler plug (1). Fill with new gear oil until oil level reaches the specified level near filler plug mounting hole.

Oil grade and Viscosity: Refer to MA-9, "Fluids and Lubricants". Maintenance
Oil capacity: Approx. 0.65 l (1-3/8 US pt, 1-1/8 Imp pt)

2. After refilling oil, check oil level. Set a gasket to filler plug (1), then install it to final drive assembly. Disassembly and Assembly, "Disas-
sembly and Assembly".

CAUTION:
Never reuse gasket.
