Computers and Control Systems: Locations





TROUBLE DIAGNOSIS

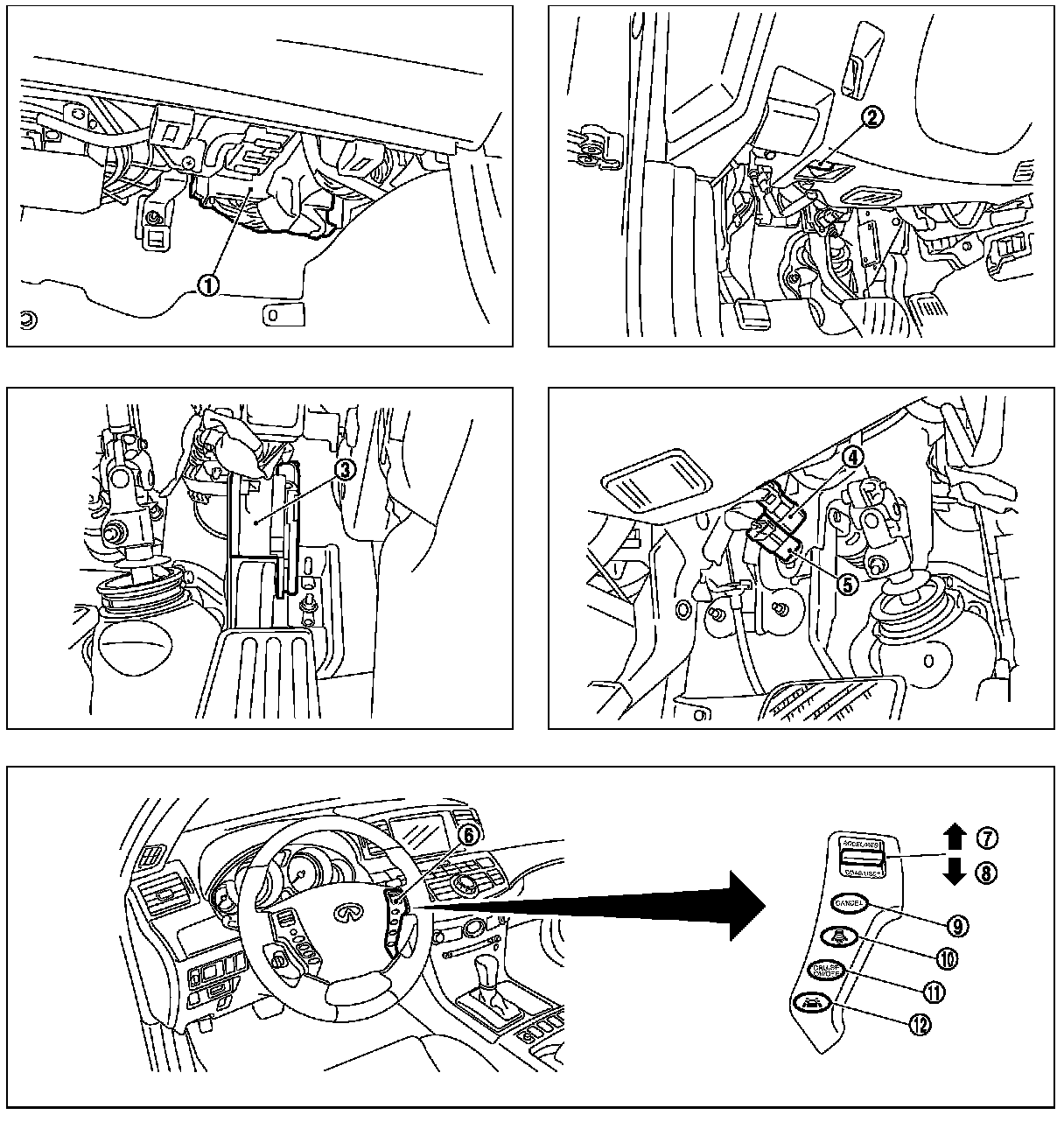

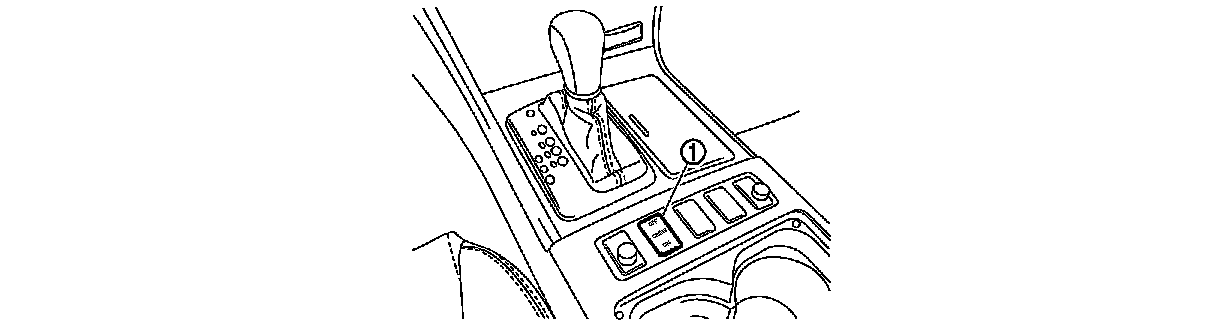

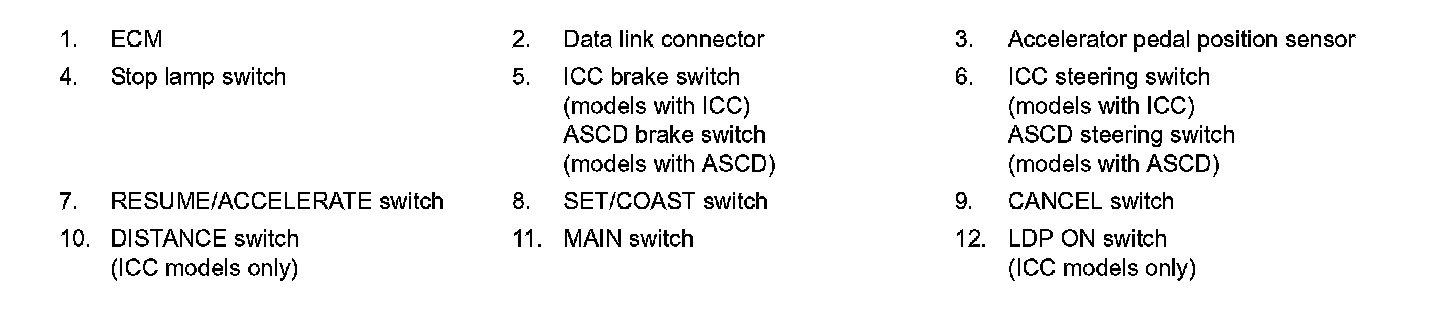

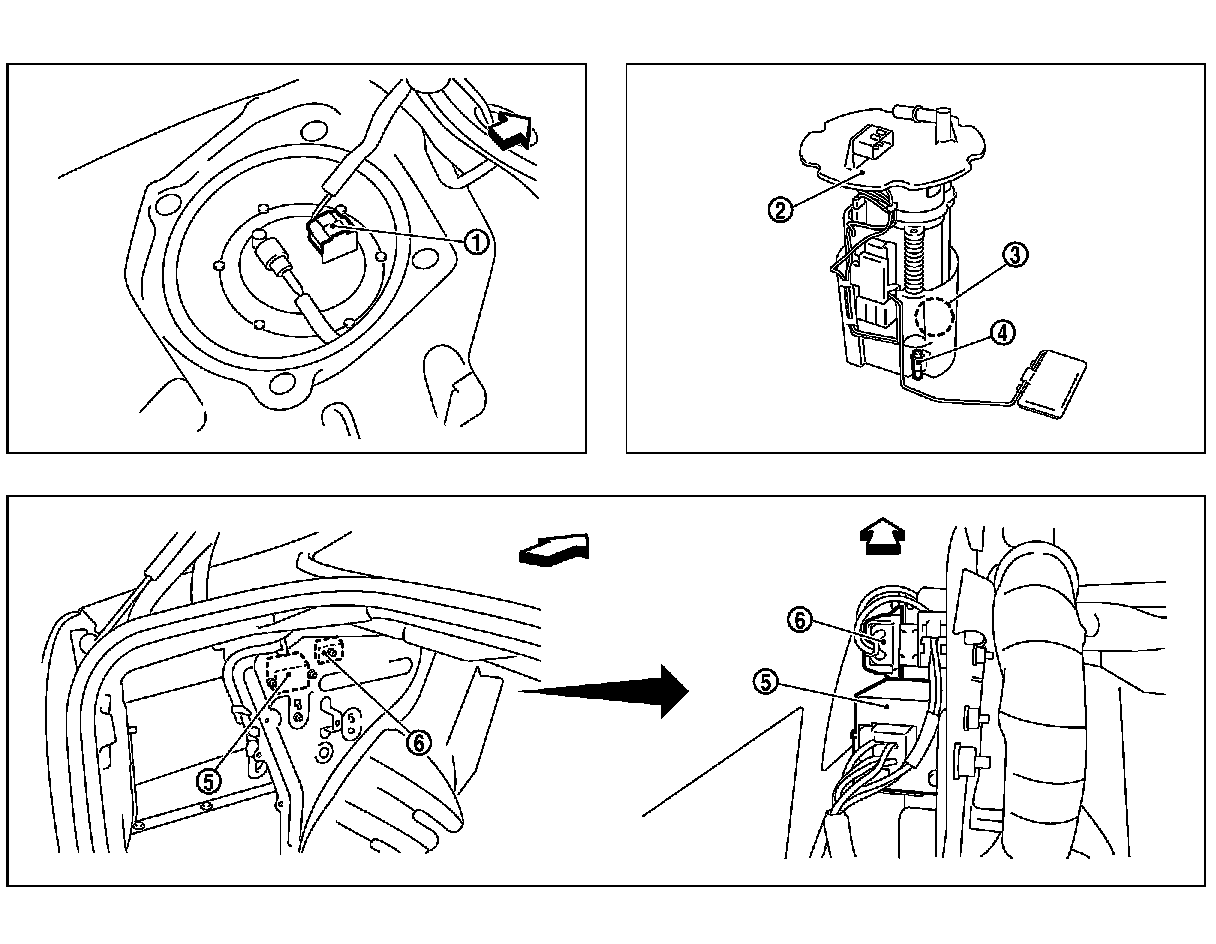

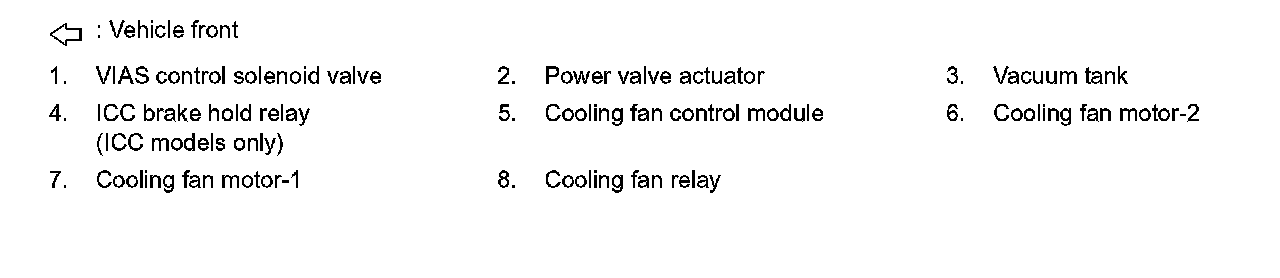

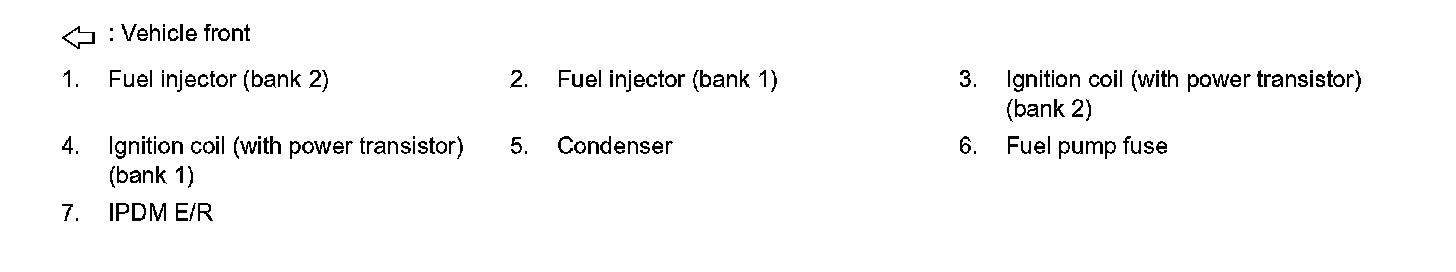

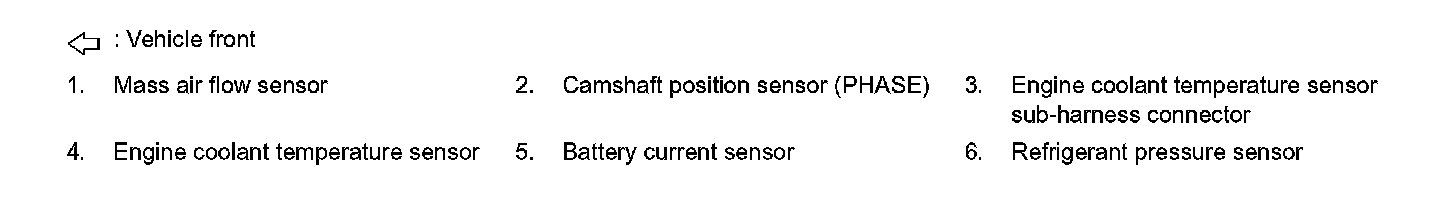

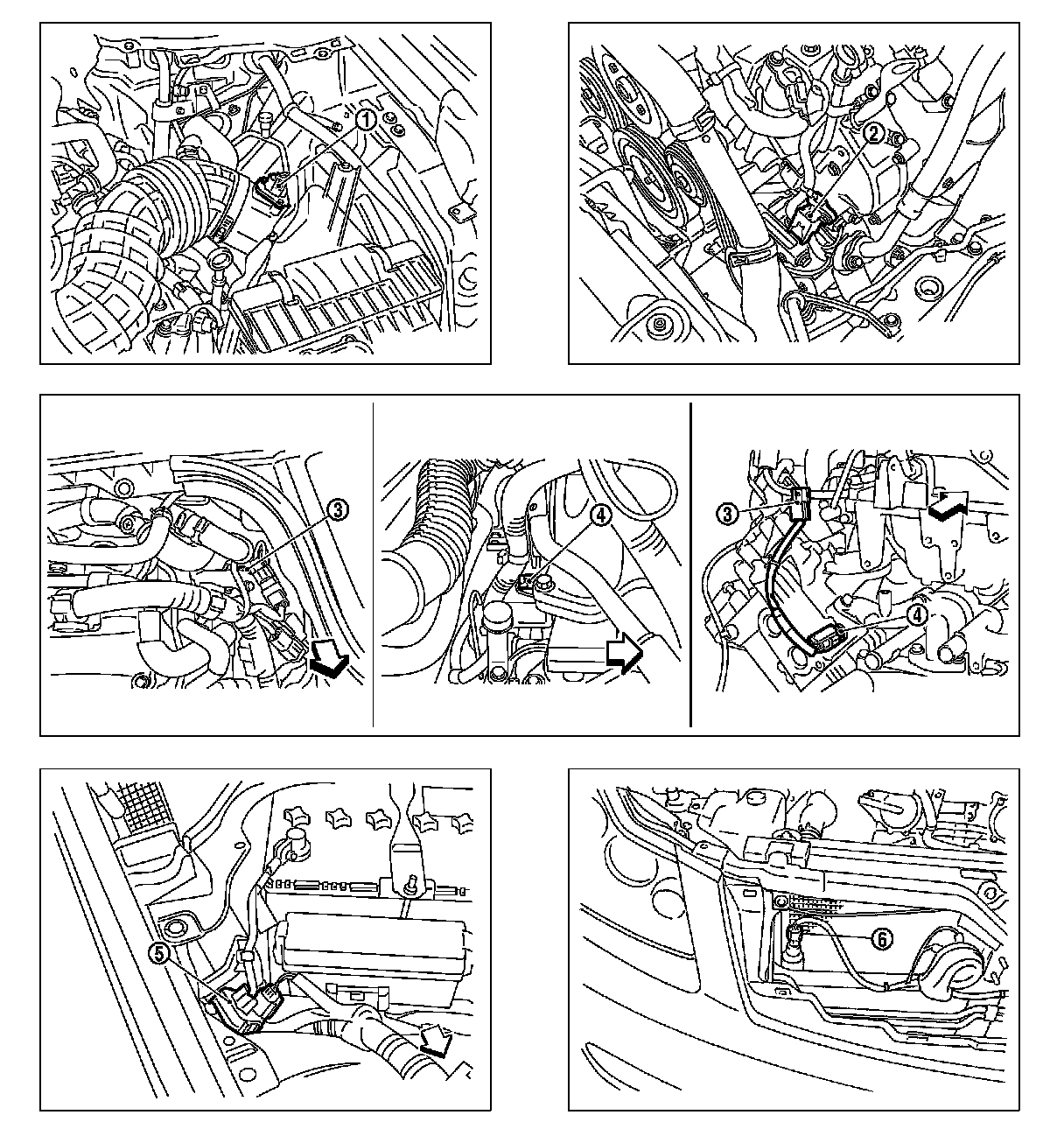

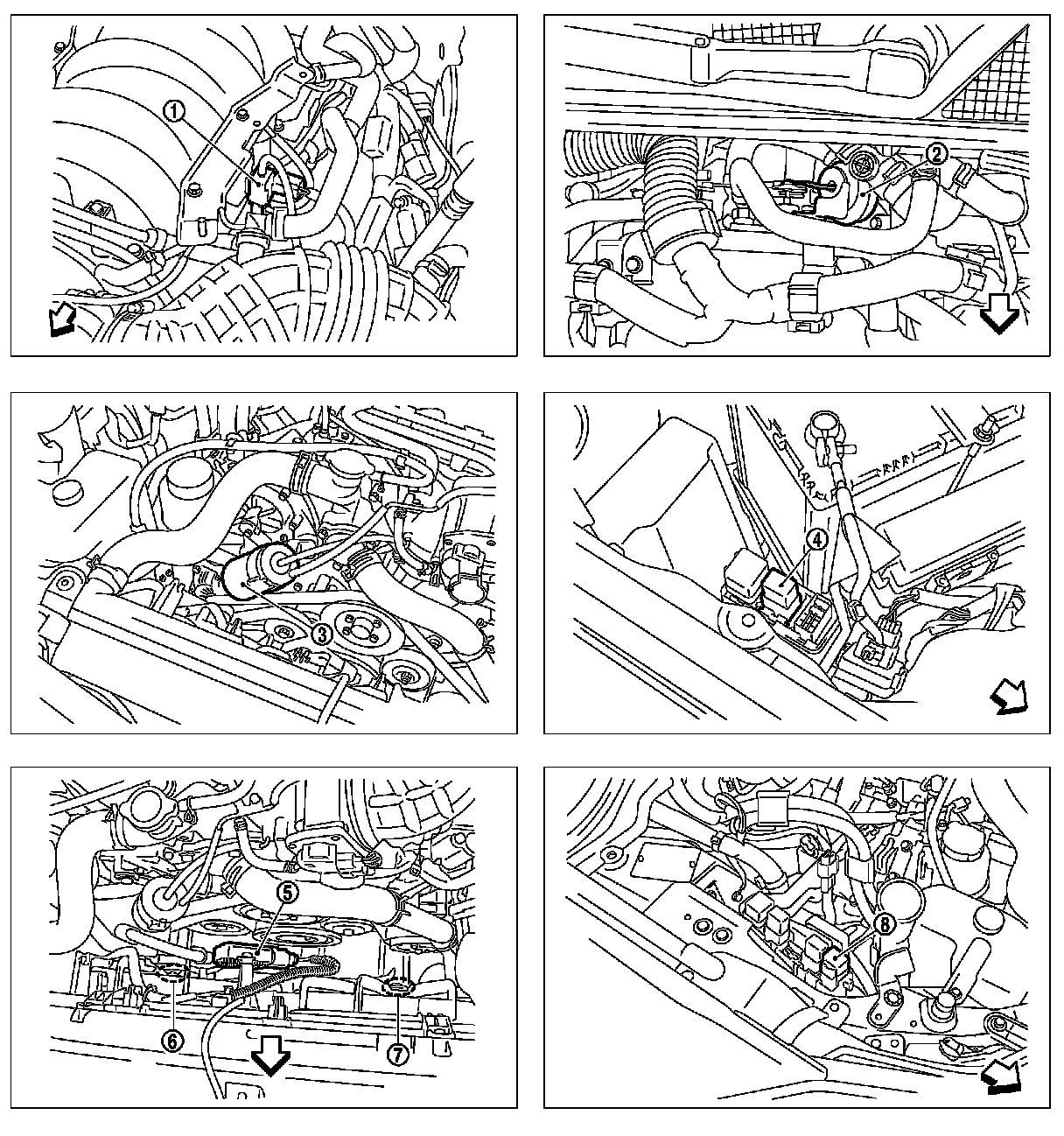

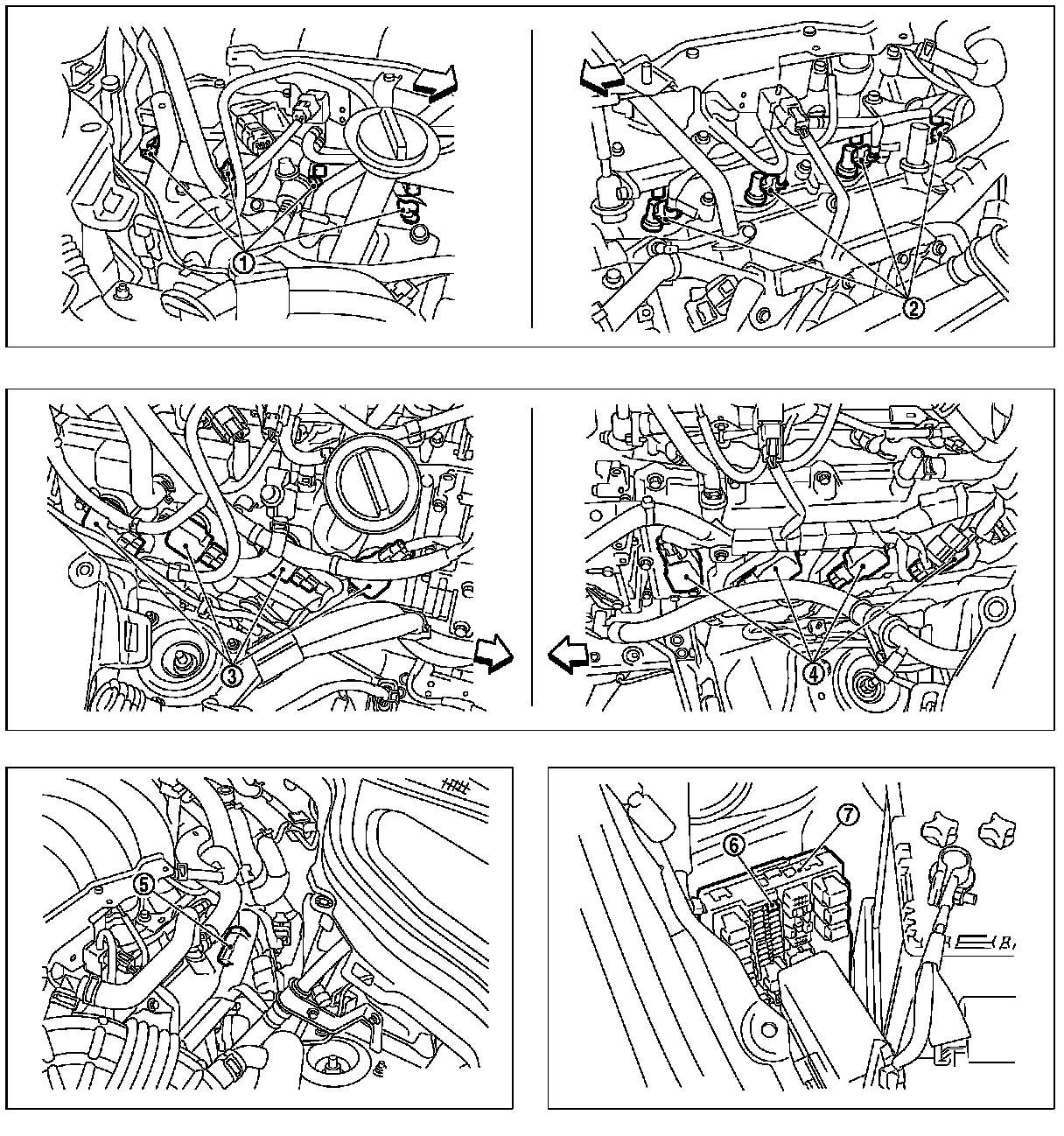

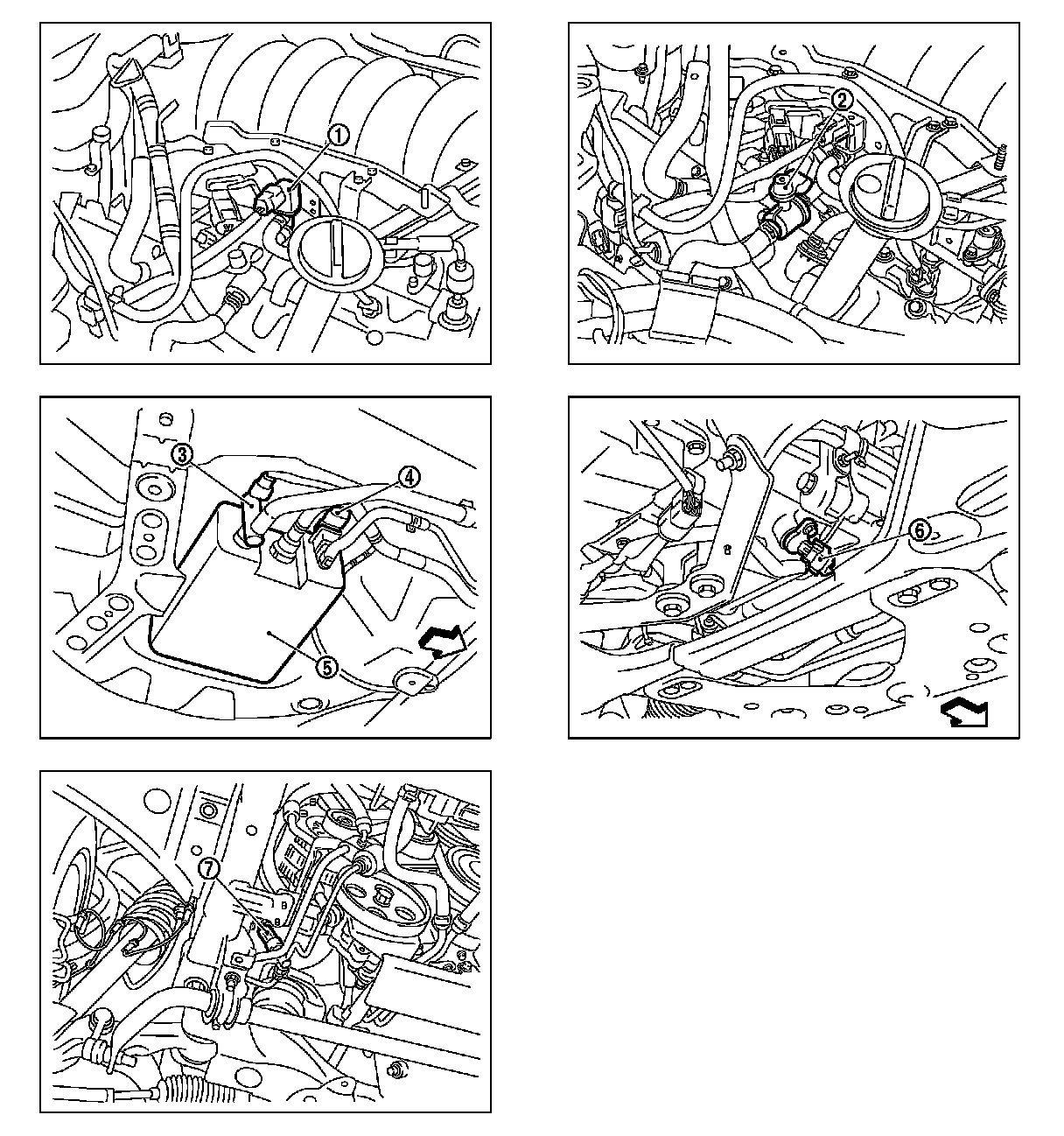

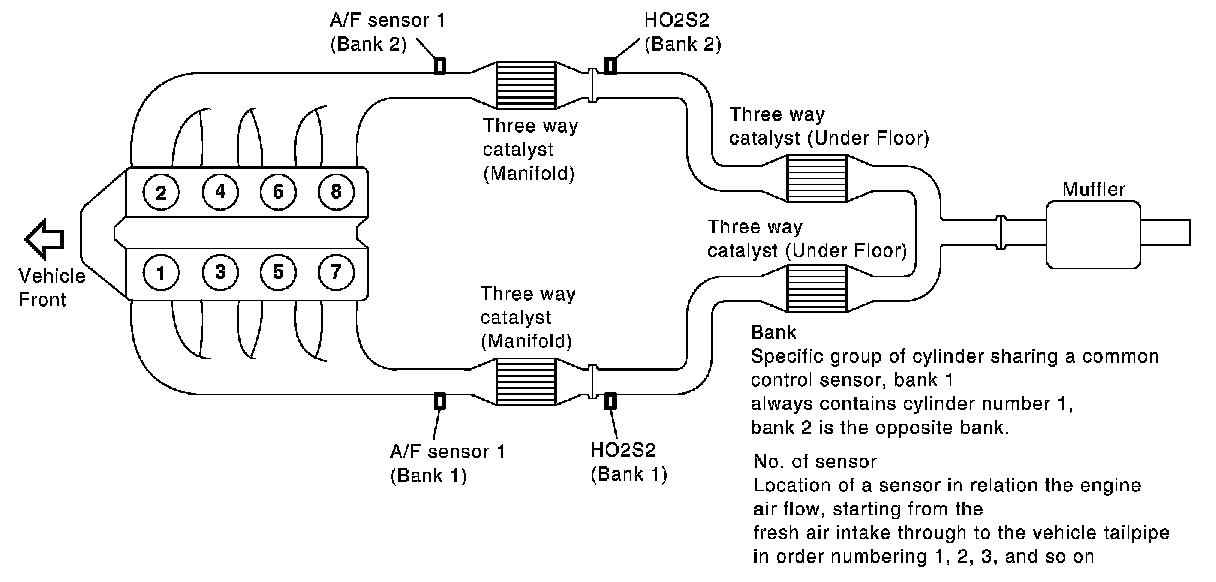

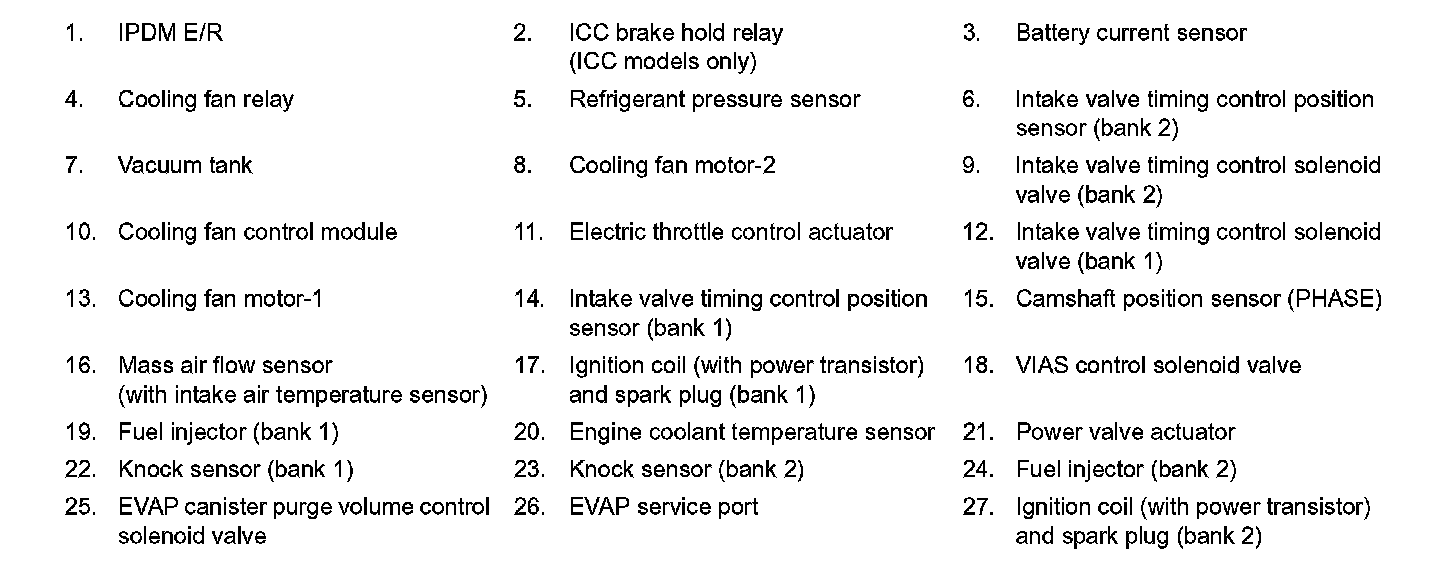

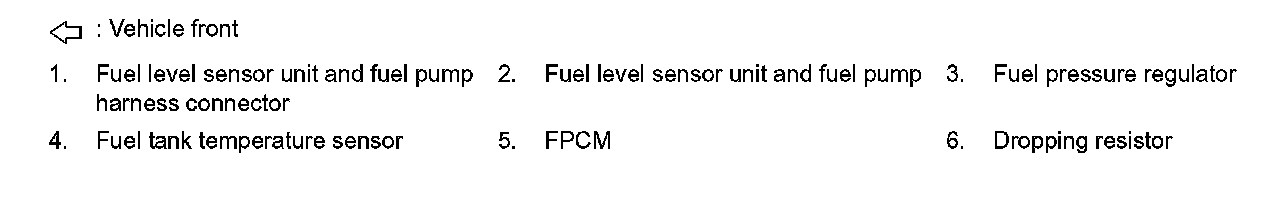

Engine Control Component Parts Location
