Rear Display Unit
Rear Display Unit
REAR DISPLAY UNIT
Reference Value

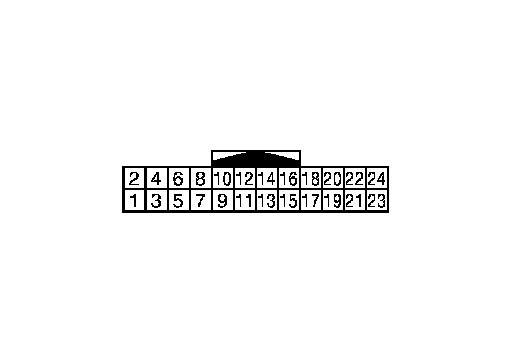

TERMINAL LAYOUT

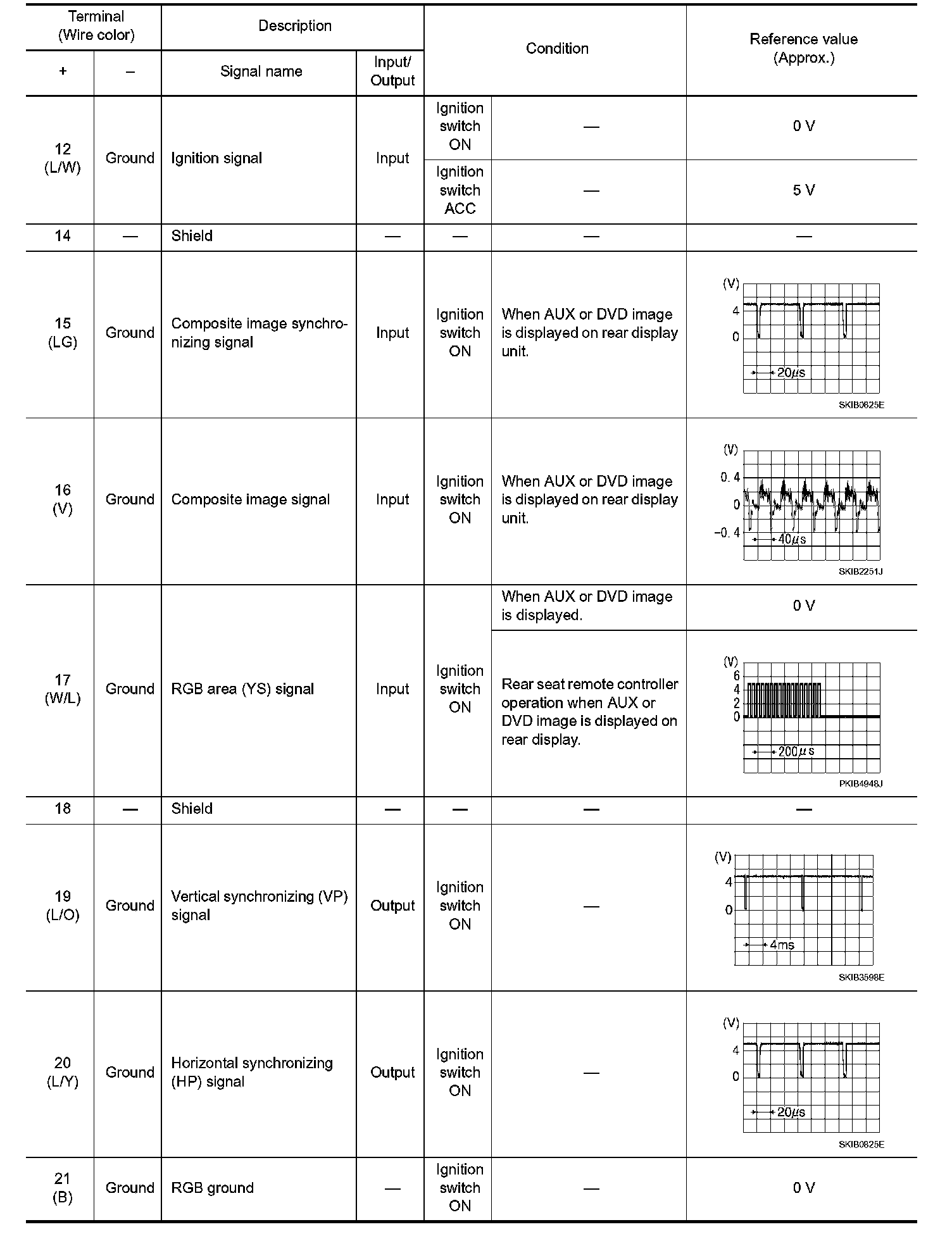

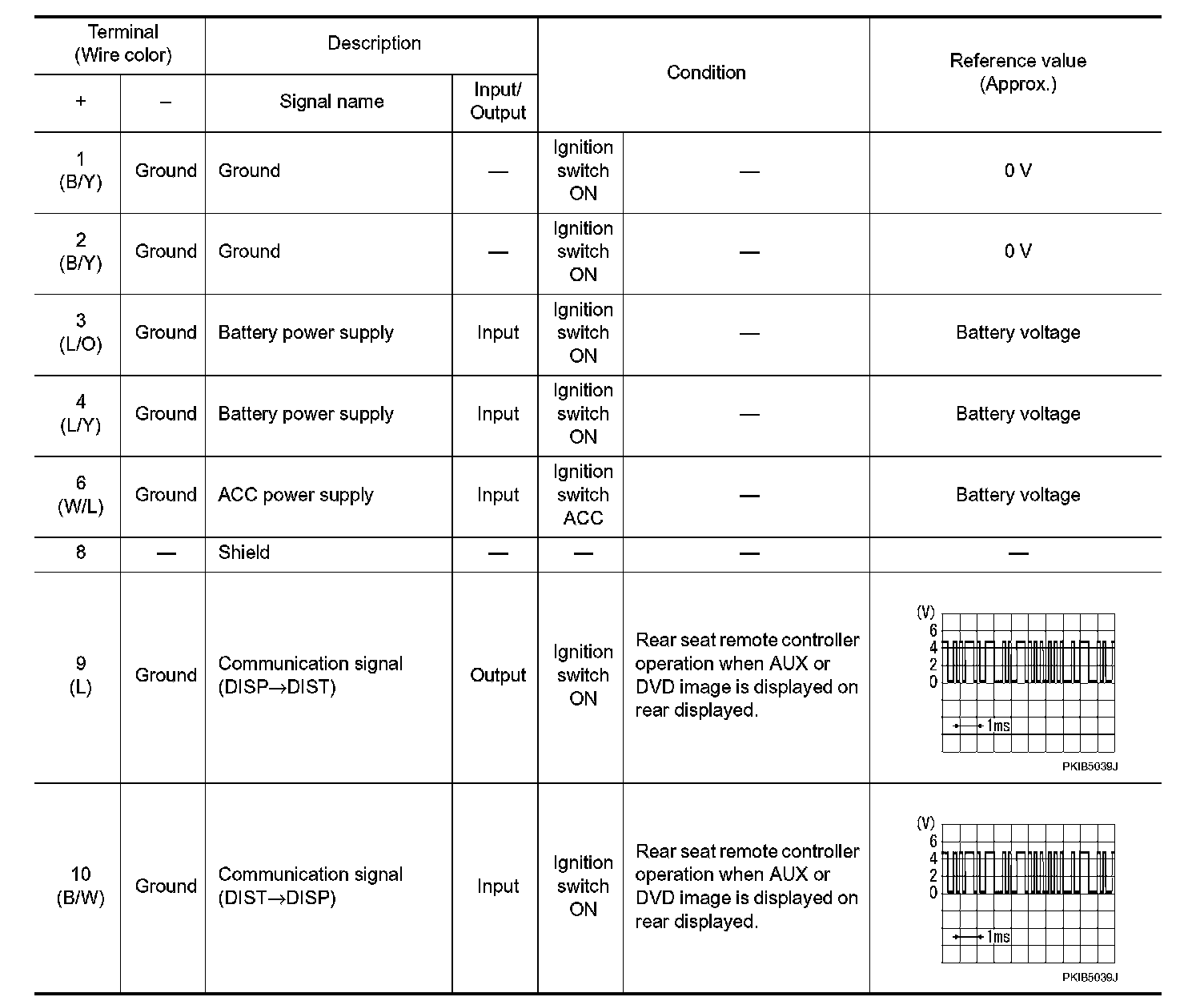

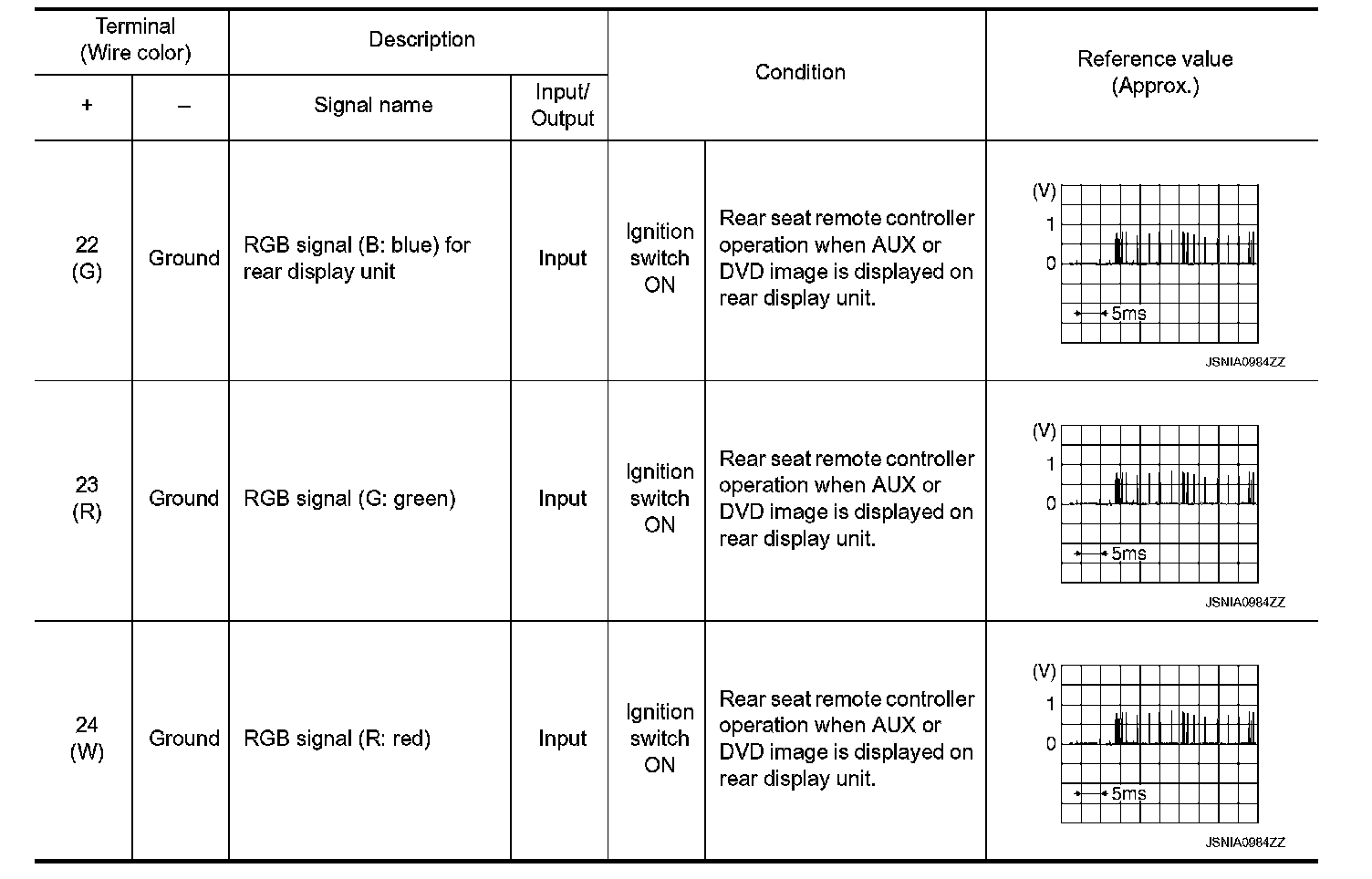

PHYSICAL VALUES
