Disassembly and Assembly





CHARGING SYSTEM


Disassembly and Assembly

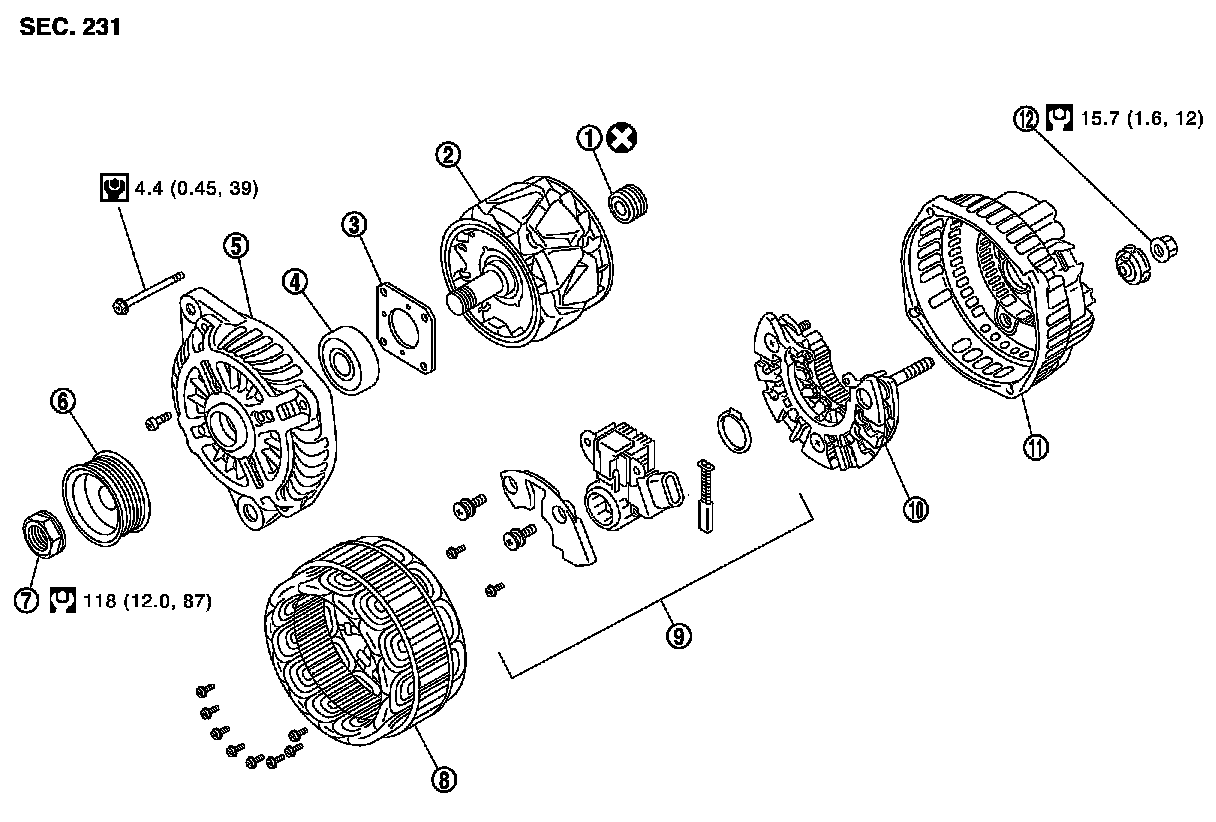

VQ35HR ENGINE MODELS
Type: A3TJ0691

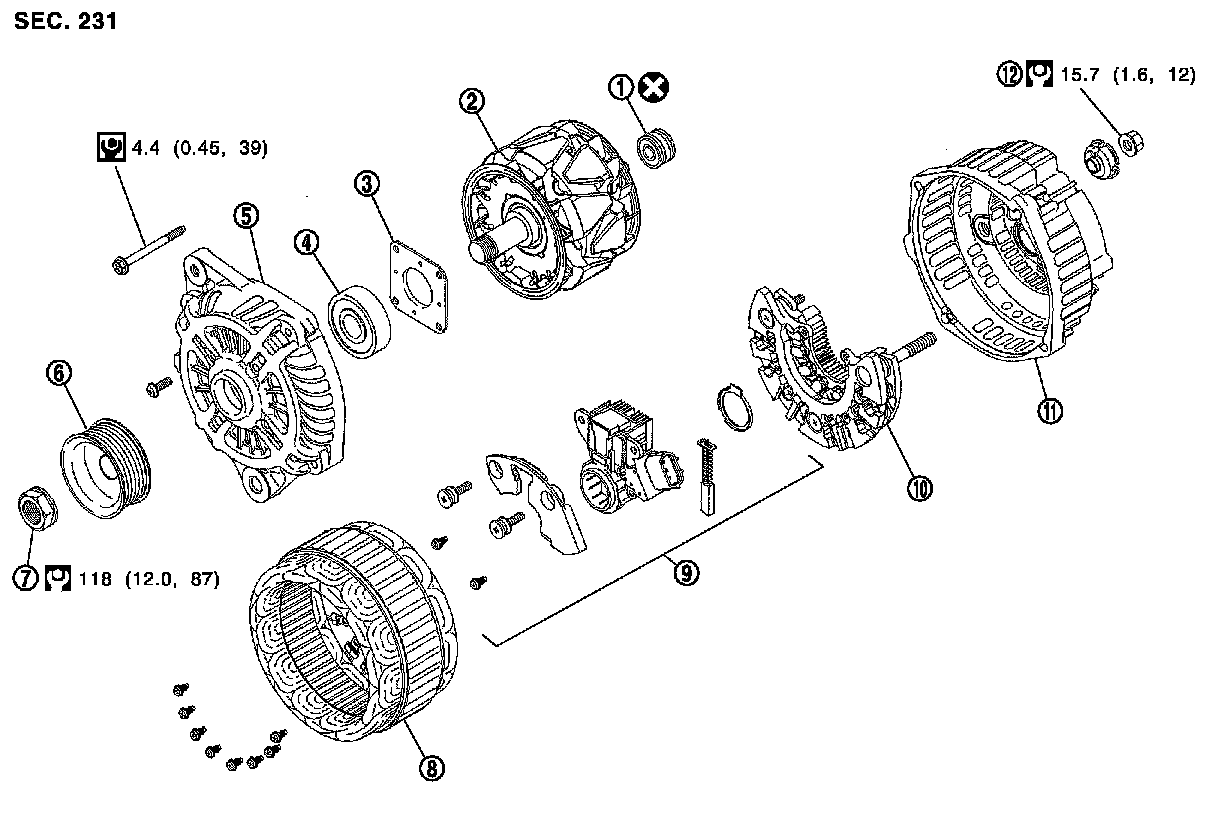

VK45DE ENGINE MODELS
Type: A3TJ0591
