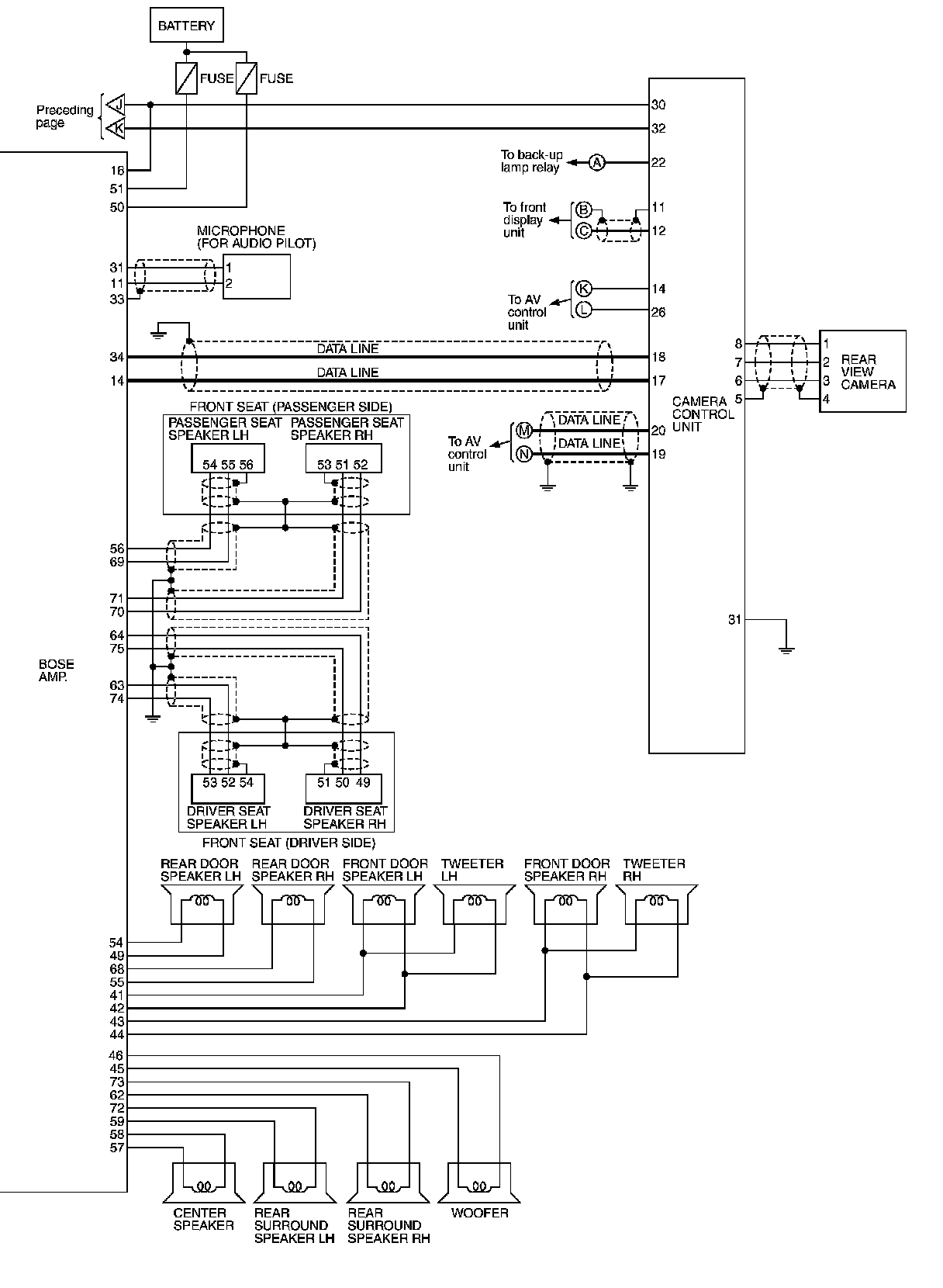

Schematic - Bose 5.1CH Surround Audio System
Schematic - Bose 5.1CH Surround Audio System
CAMERA CONTROL UNIT

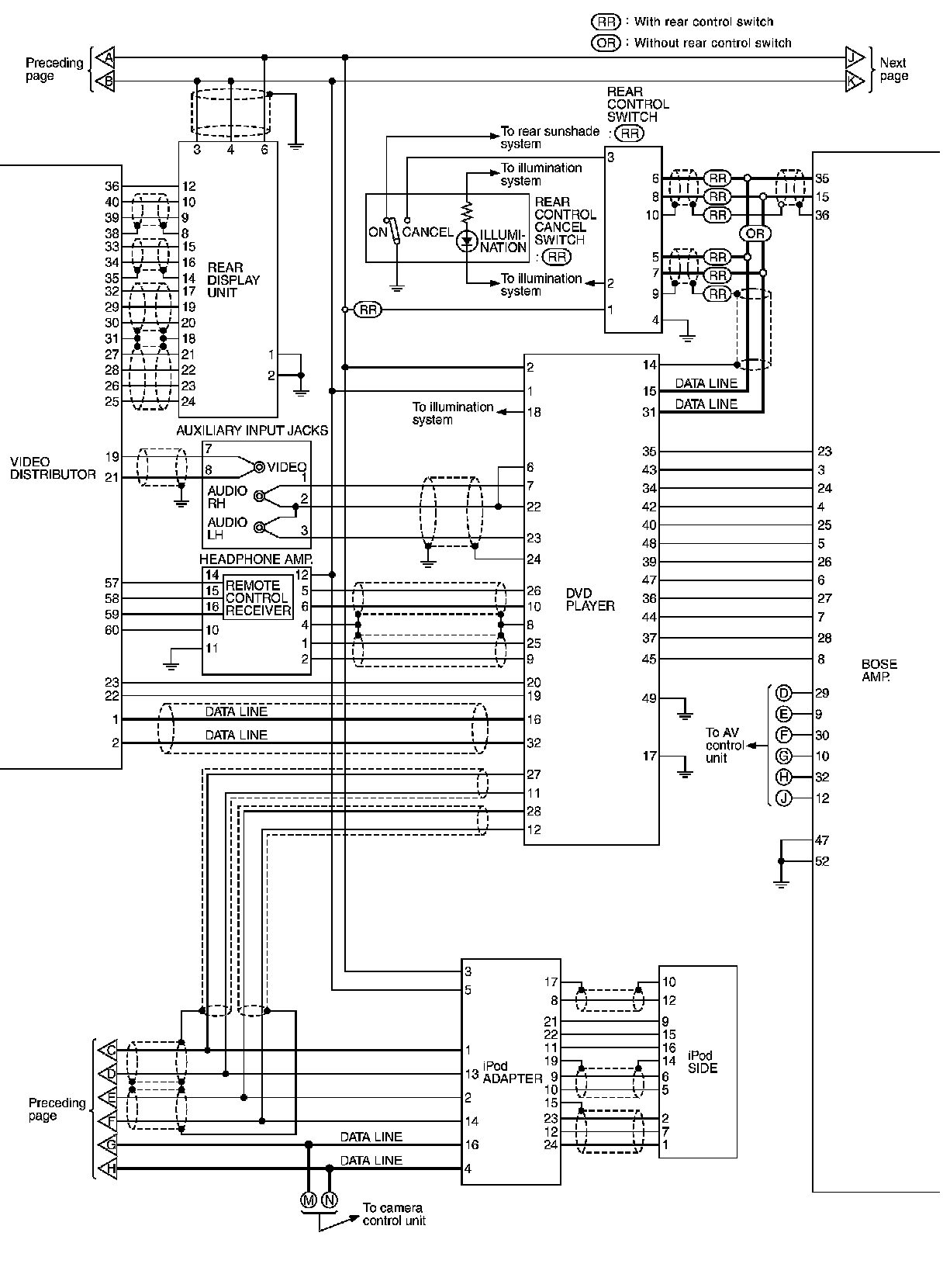

Schematic - BOSE 5.1ch Surround Audio System -
