Air Conditioner Control
>>
System Description
System Description

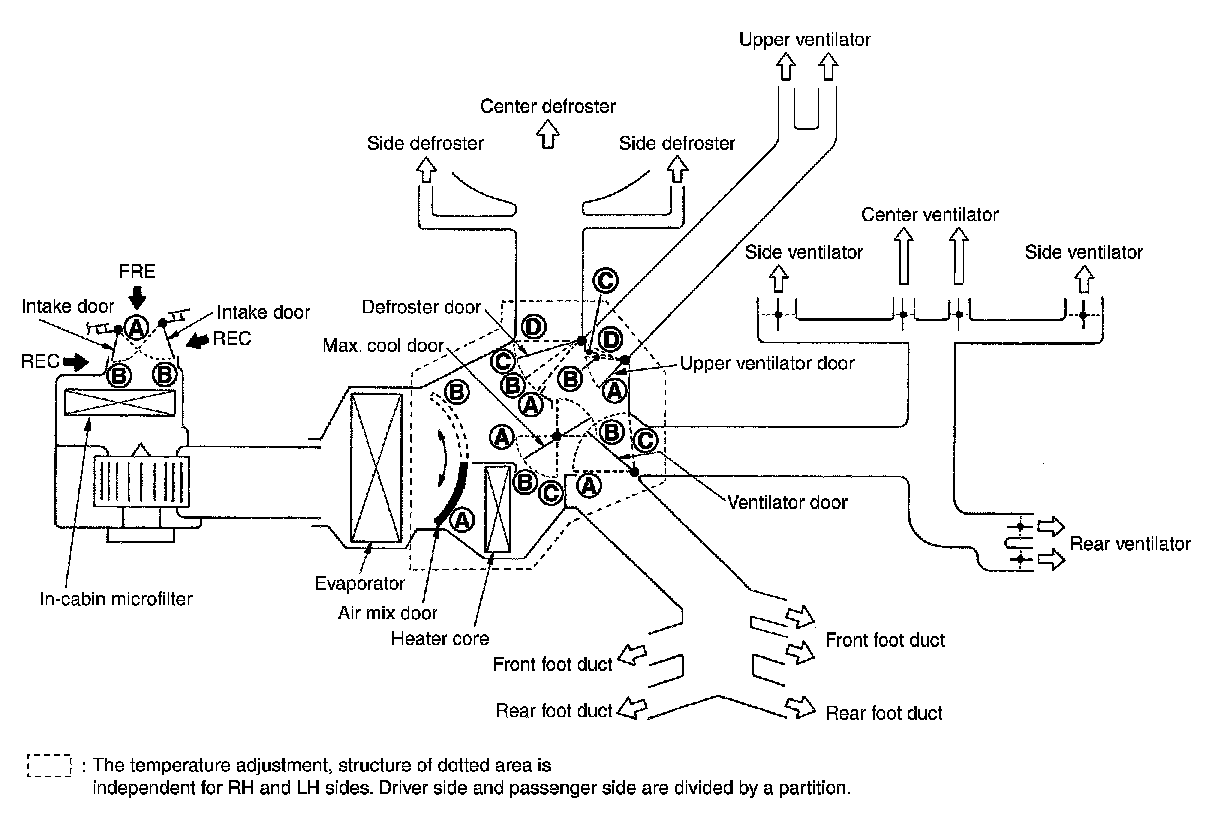

AIR CONDITIONER CONTROL
System Description

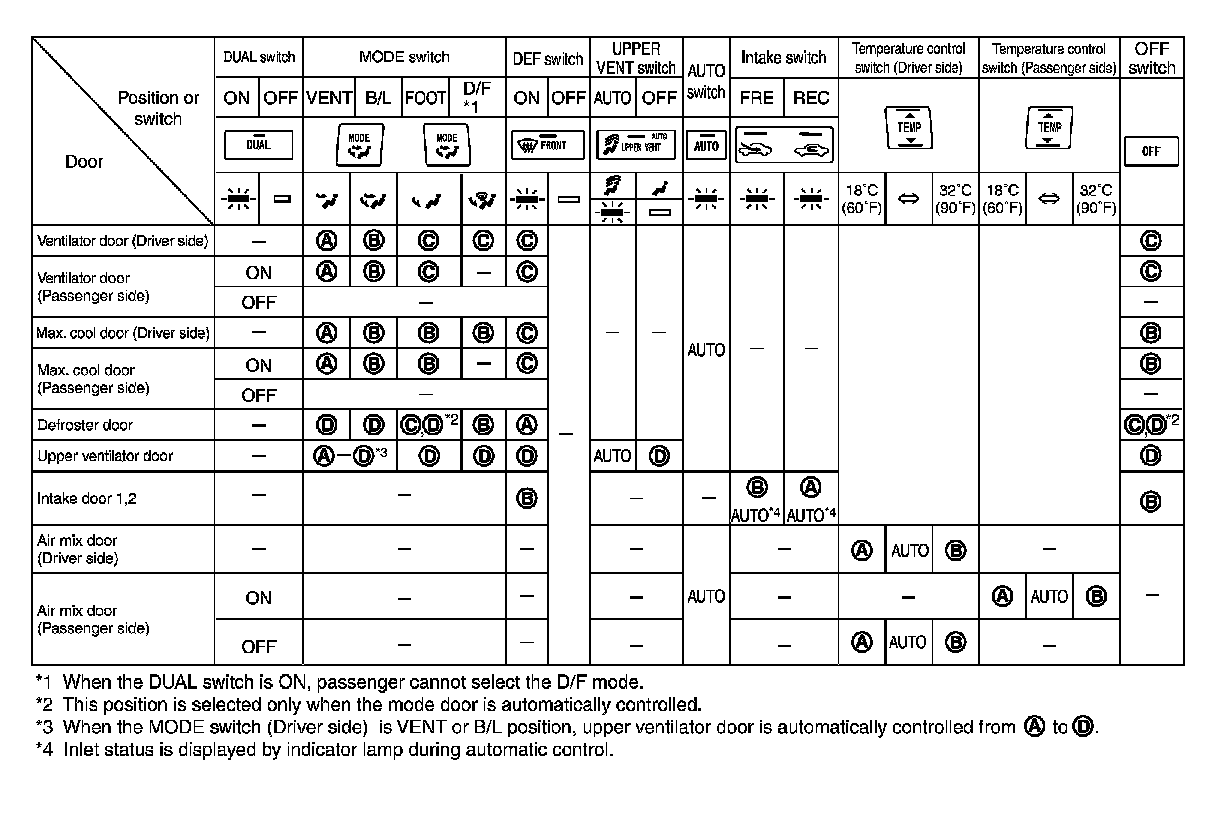

SWITCHES AND THEIR CONTROL FUNCTION
