Removal and Installation

BLOWER MOTOR


Removal and Installation

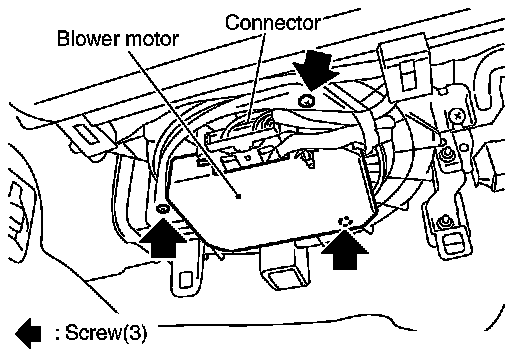

REMOVAL
1. Remove instrument passenger lower cover. Instrument Panel.





2. Disconnect blower motor connector.
3. Remove mounting screws, and then remove blower motor.

INSTALLATION
Installation is basically the reverse order of removal.
