Memory Positioning Systems
Memory Positioning Systems
AUTOMATIC DRIVE POSITIONER

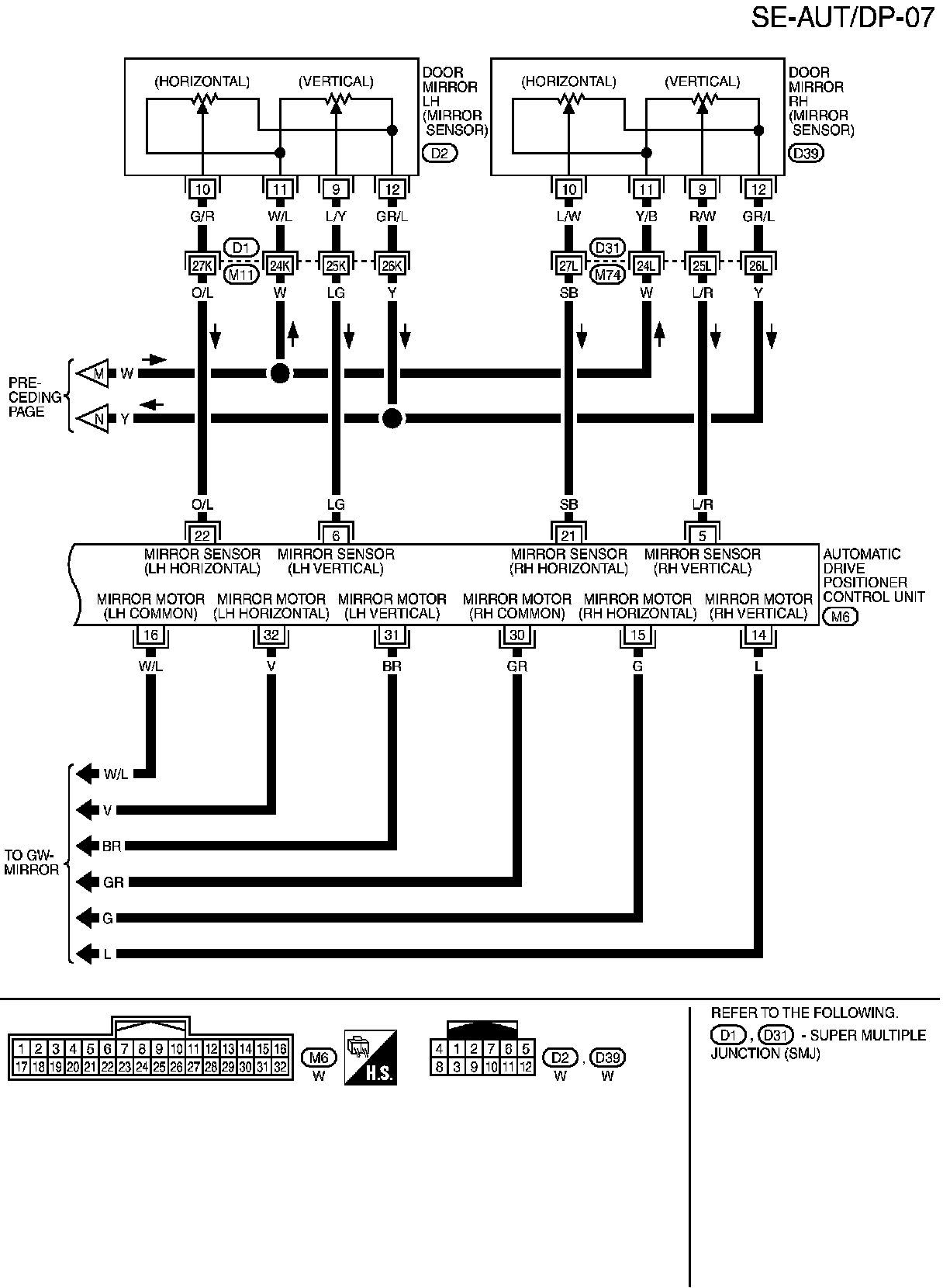

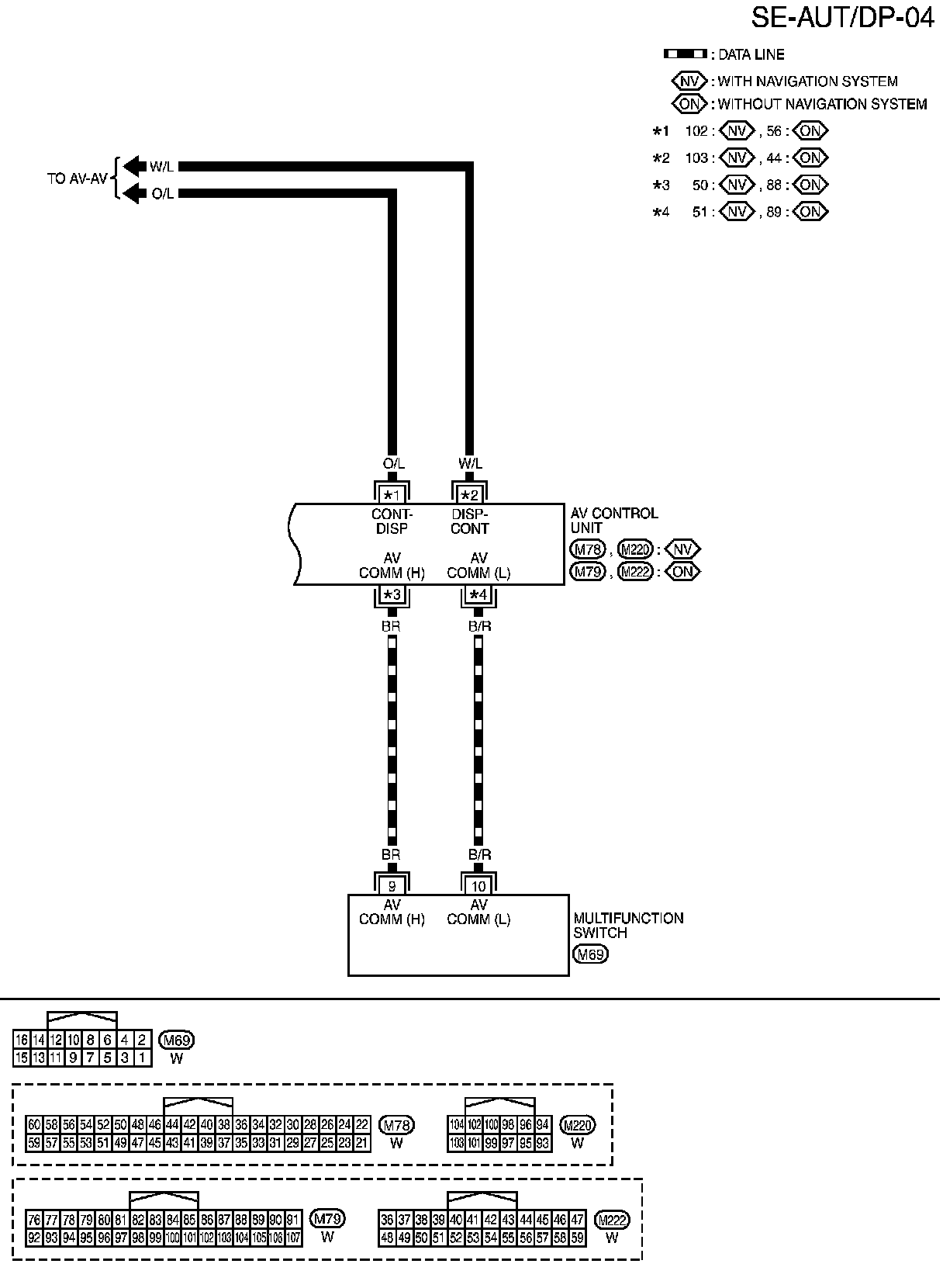

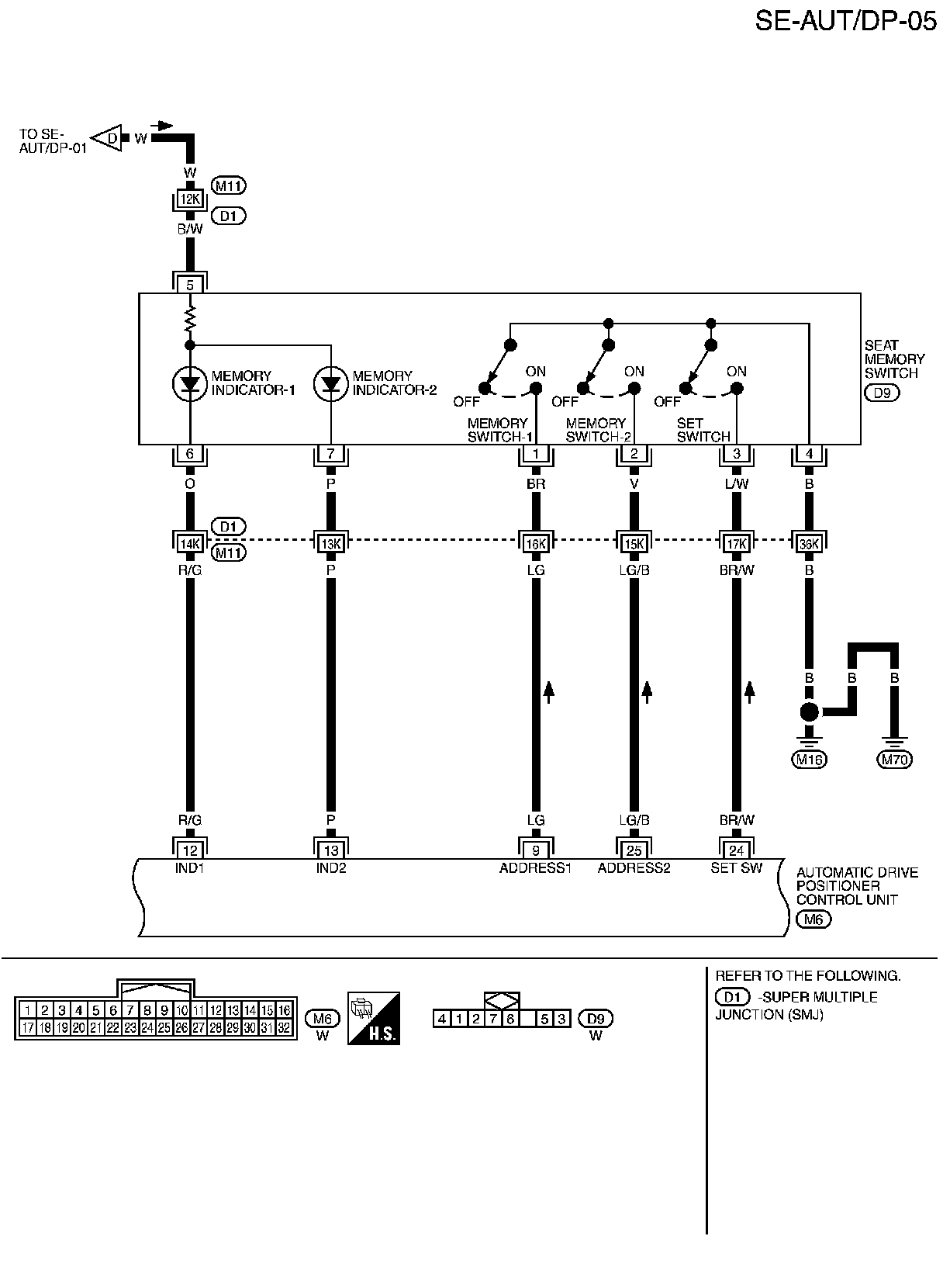

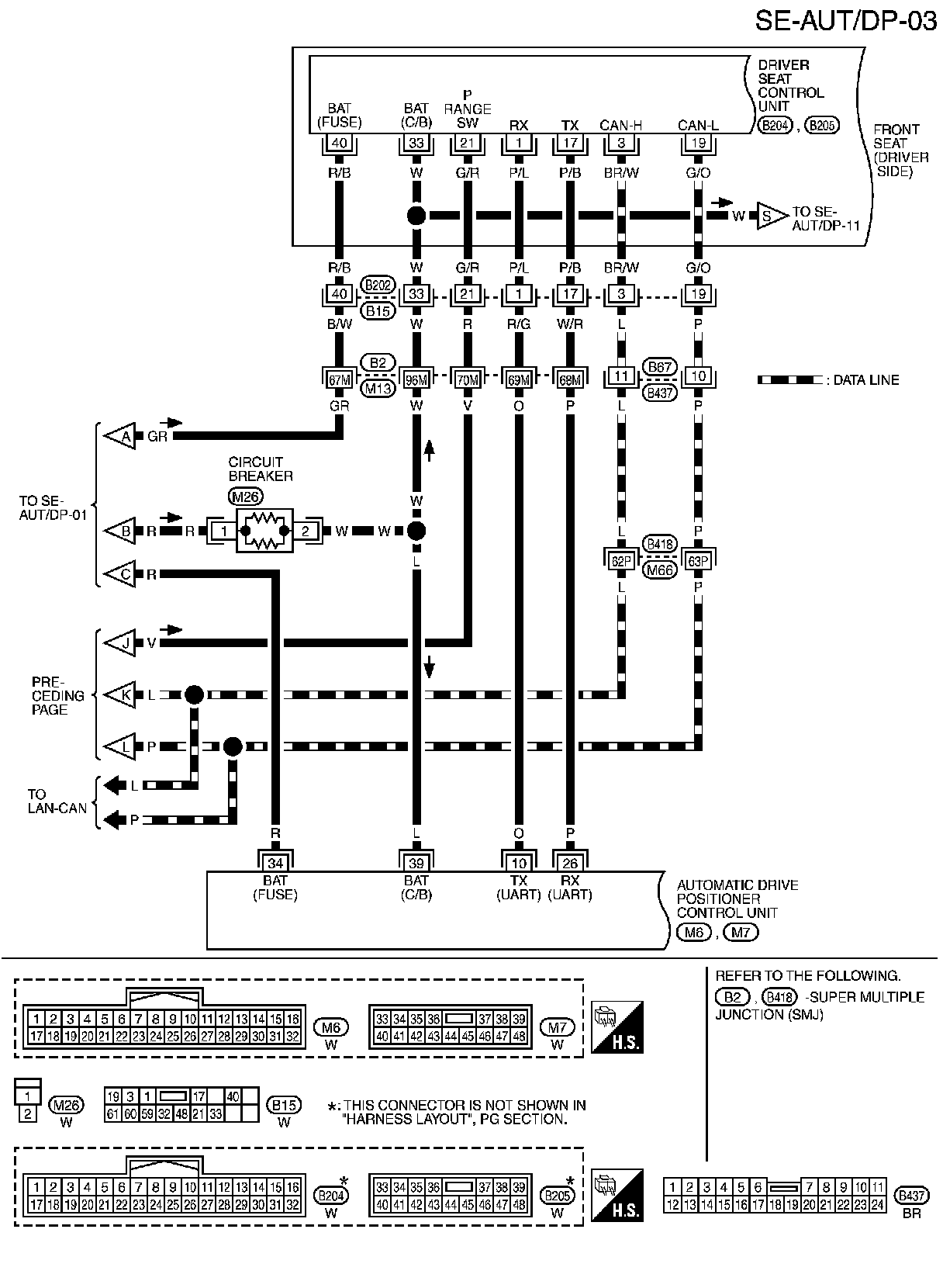

Wiring Diagram - AUT/DP -
