Television / Monitor: Service and Repair

REAR DISPLAY UNIT


Removal and Installation


REMOVAL





1. Insert cloth-covered driver into gaps between rear display cover
(1) and headlining, and remove rear display cover.

White arrow: Vehicle front

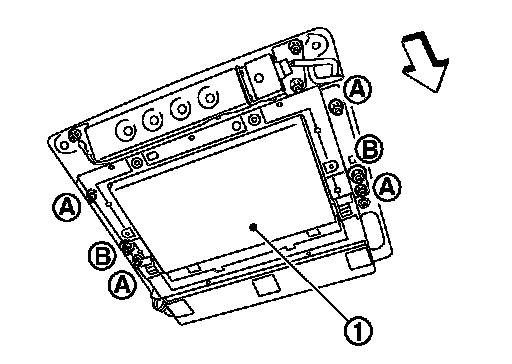

2. Remove nuts (A) and plastic nuts (B).

White arrow: Vehicle front

3. Disconnect connector, and remove rear display unit (1).

INSTALLATION
Install in the reverse order of removal.
