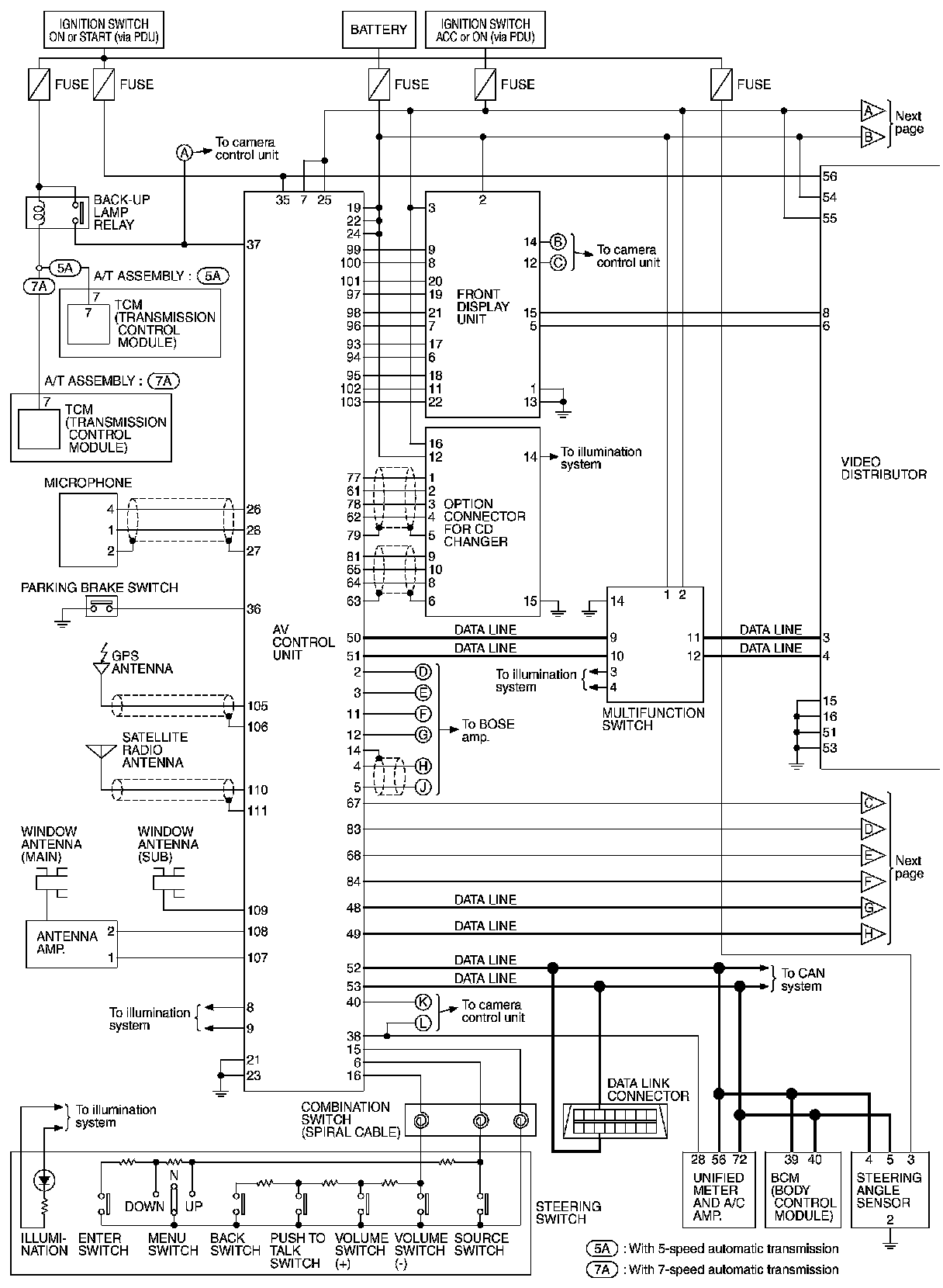

Schematic - Bose Audio 2CH System
>>

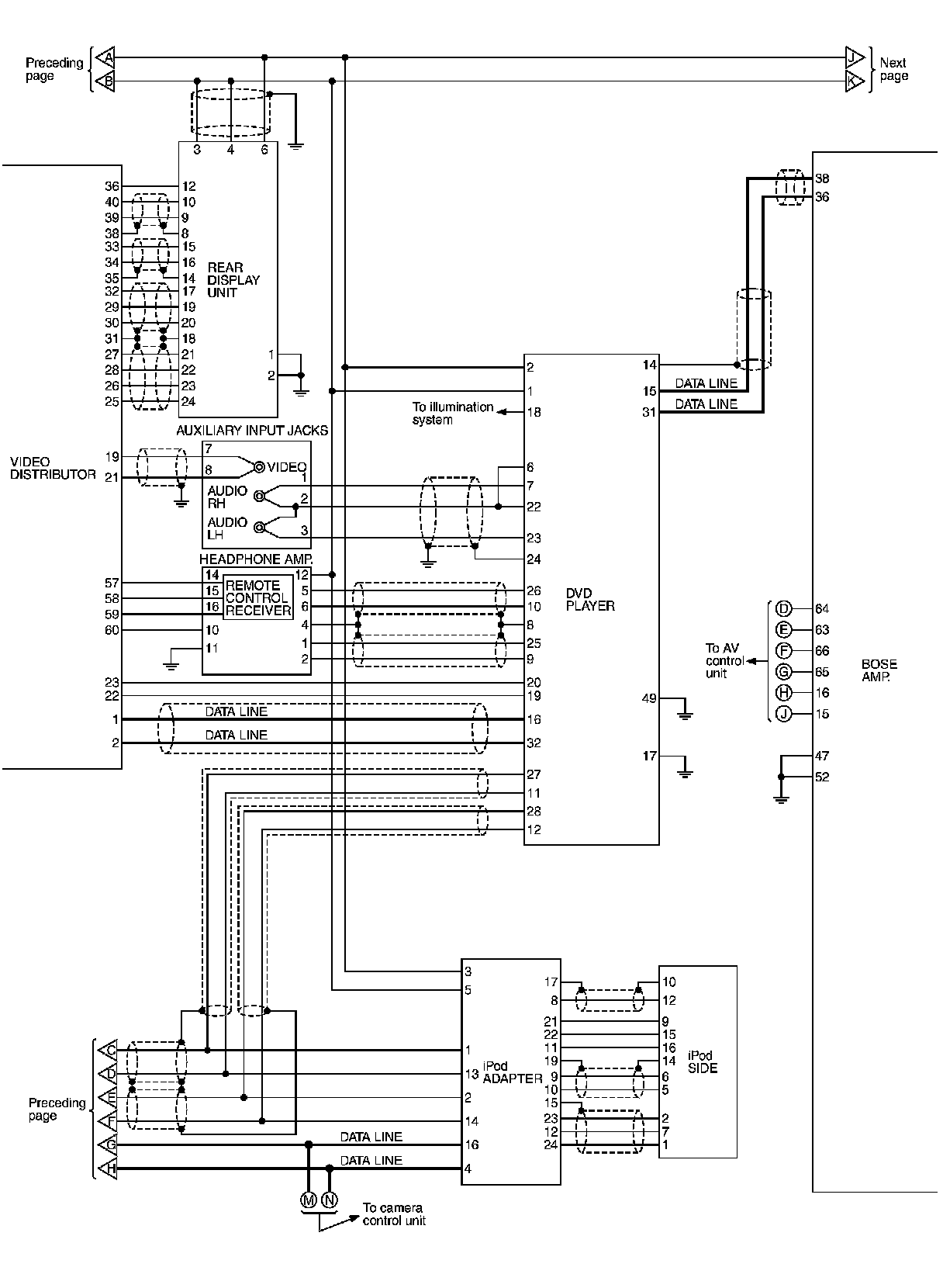

With Mobile Entertainment System
With Mobile Entertainment System

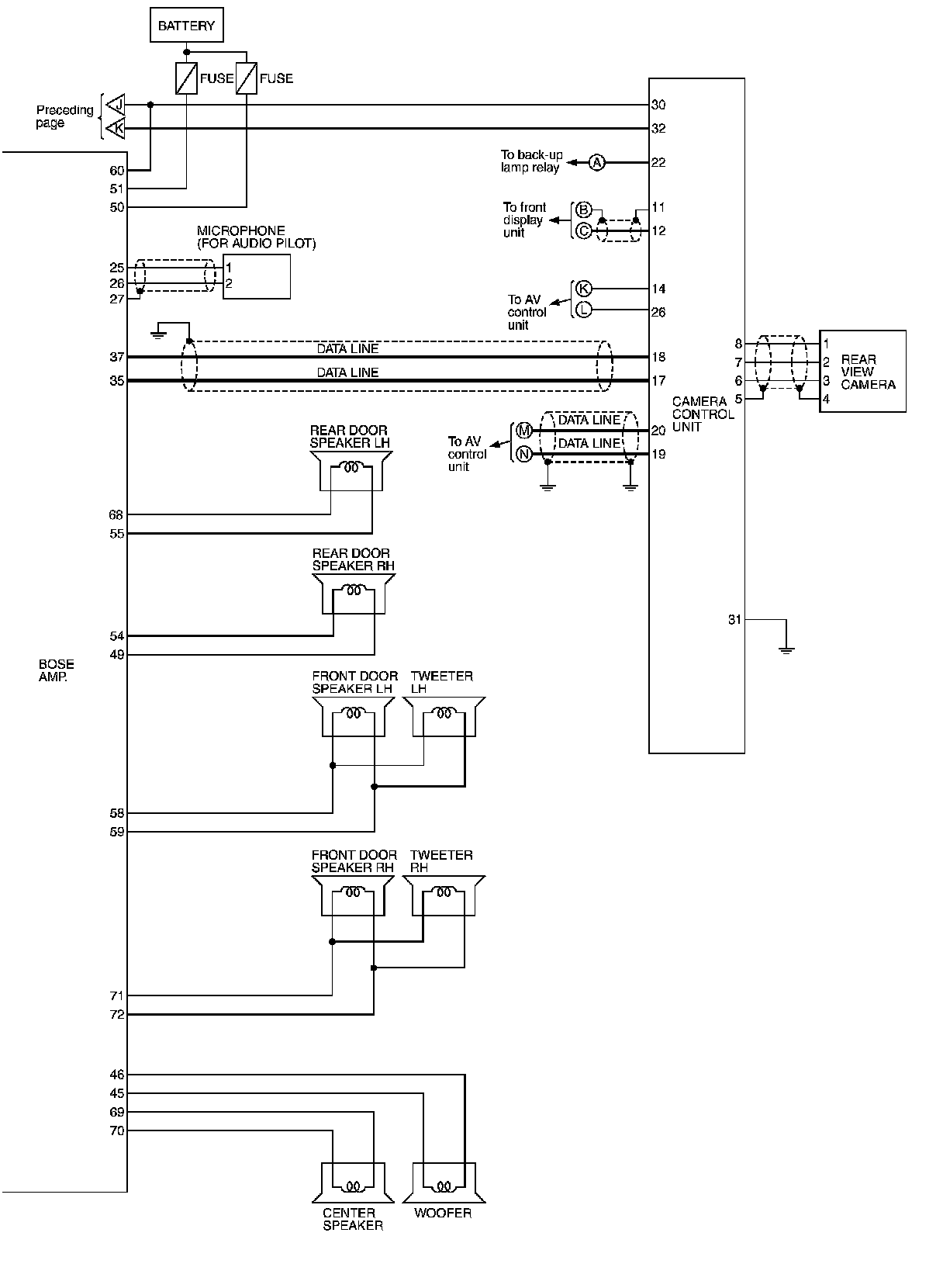

CAMERA CONTROL UNIT
Schematic - BOSE Audio 2ch System-
