Infiniti
>>
2010
>>
M35x AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Powertrain Management
>>
Ignition System
>>
Diagrams
>>
Electrical Diagrams
Electrical Diagrams

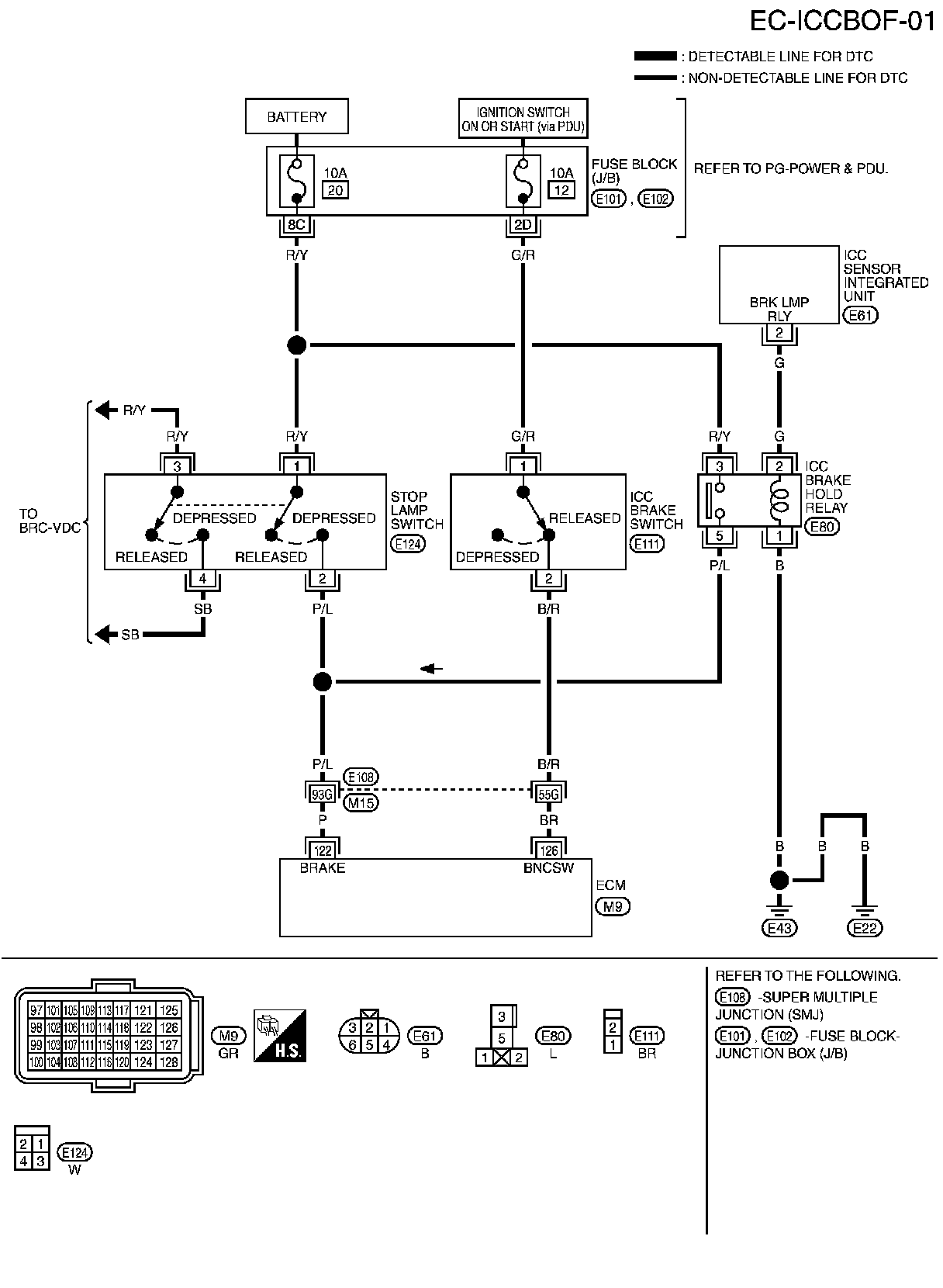

ICC BRAKE SWITCH
Wiring Diagram
