EVAP Canister Vent Control Valve
EVAP Canister Vent Control Valve
P0447 EVAP CANISTER VENT CONTROL VALVE

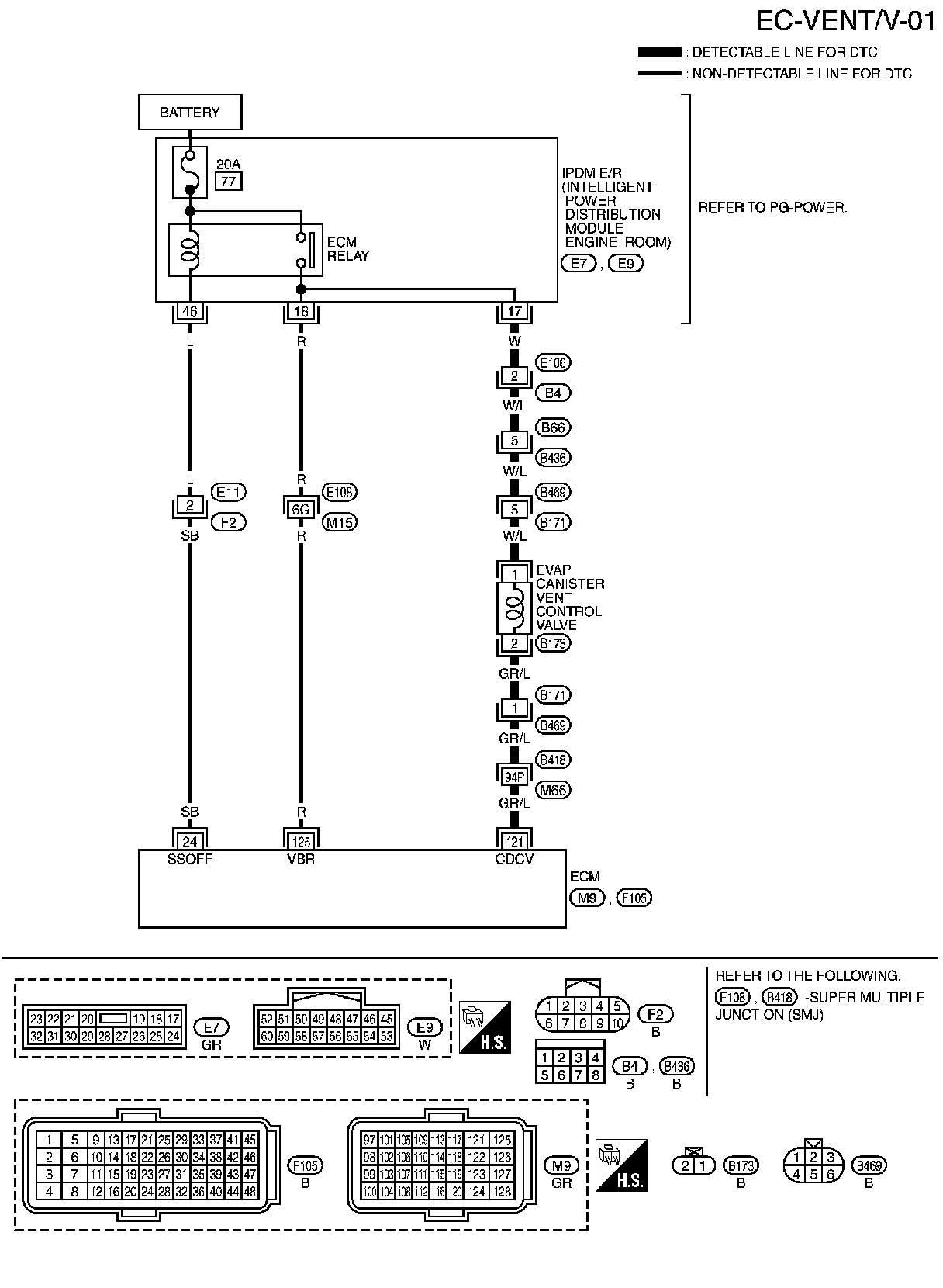

Wiring Diagram
