Home
>>
Infiniti
>>
2010
>>
M35x AWD V6-3.5L (VQ35HR)
>>
Repair and Diagnosis
>>
Diagrams
>>
Electrical Diagrams
>>
Computers and Control Systems
>>
System Diagram
>>
KS
KS
P0327, P0328, P0332, P0333
KS

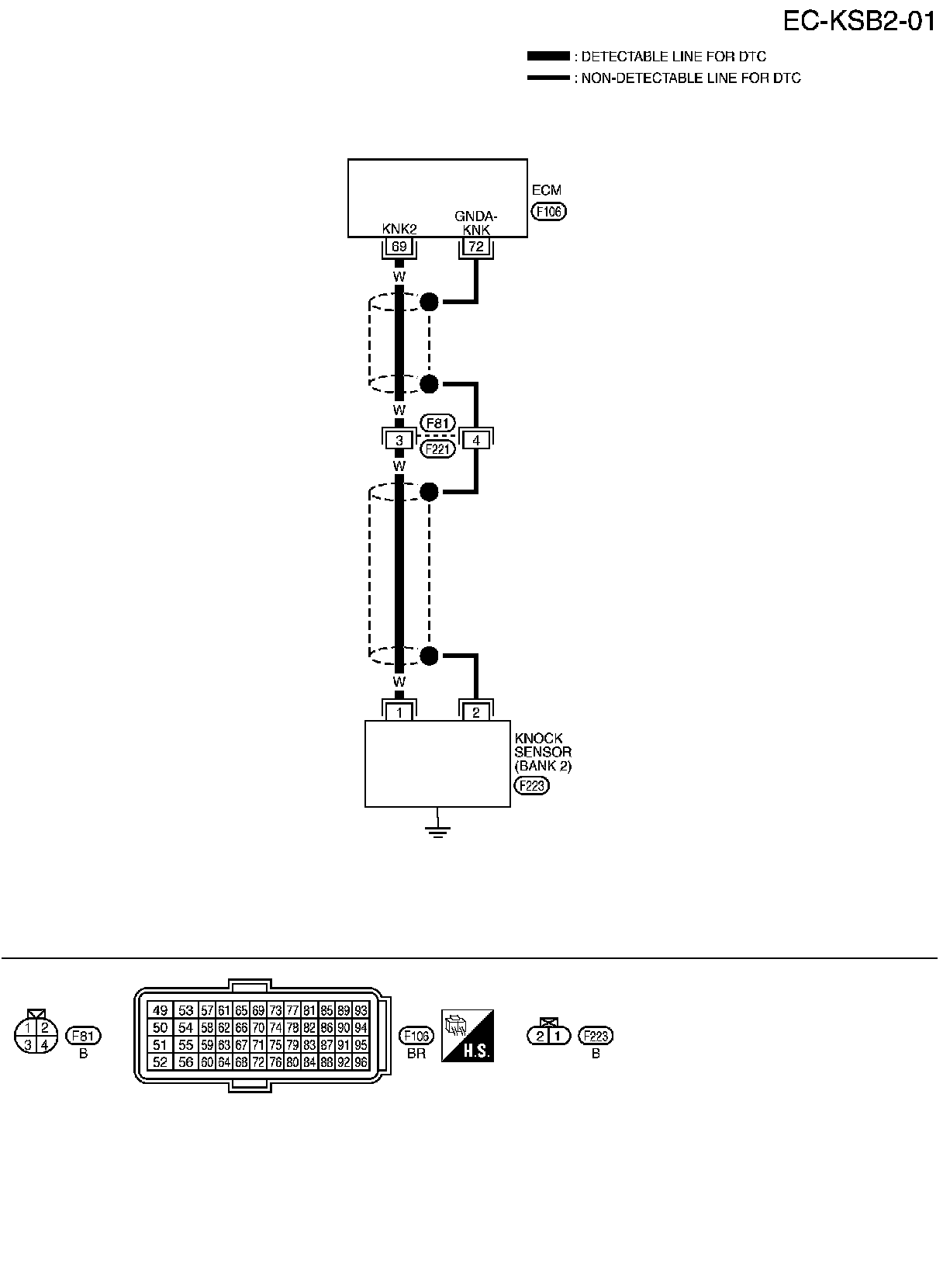

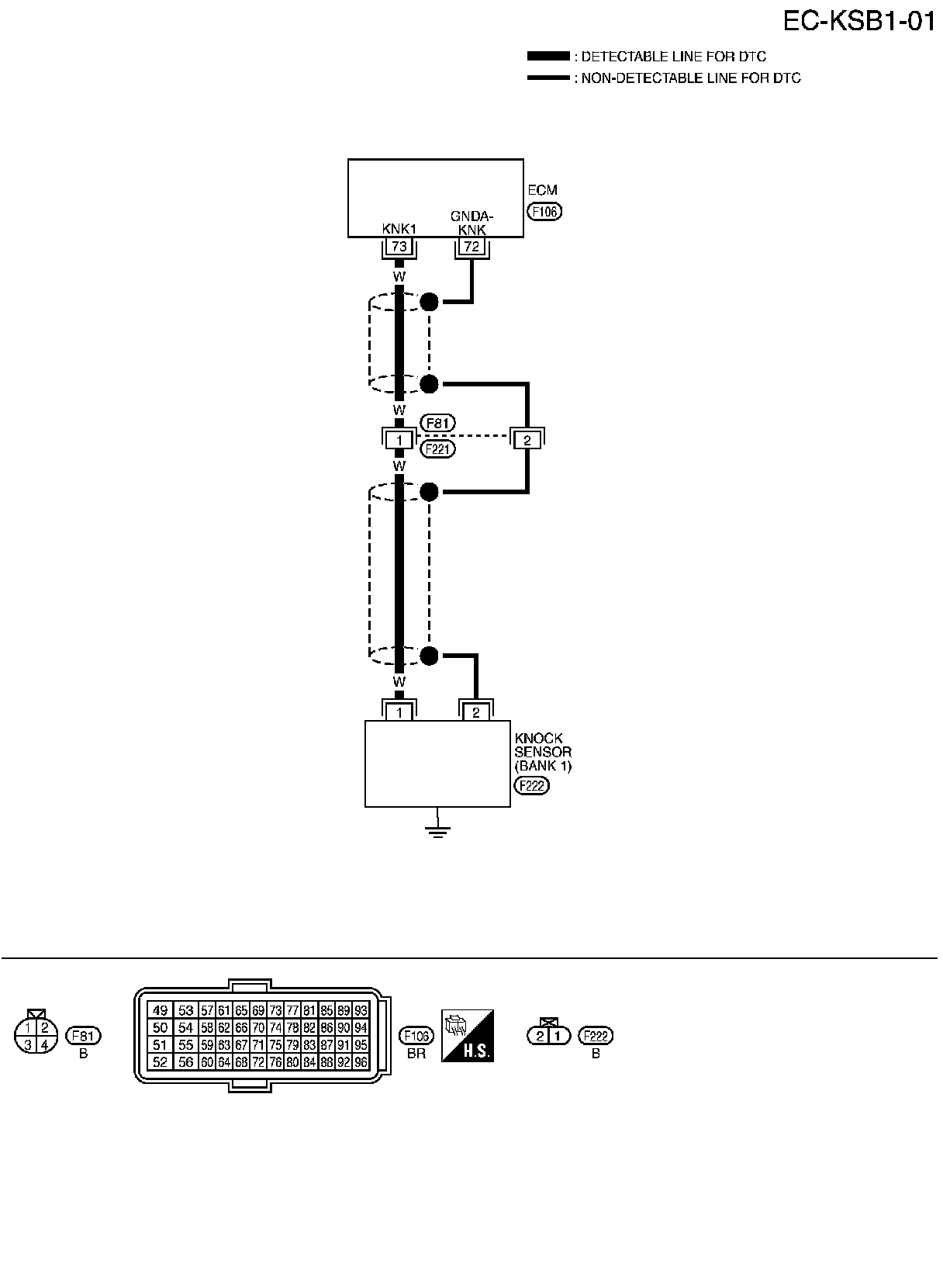

Wiring Diagram
