EVT Control Magnet Retarder
EVT Control Magnet Retarder
P0078, P0084 EVT CONTROL MAGNET RETARDER

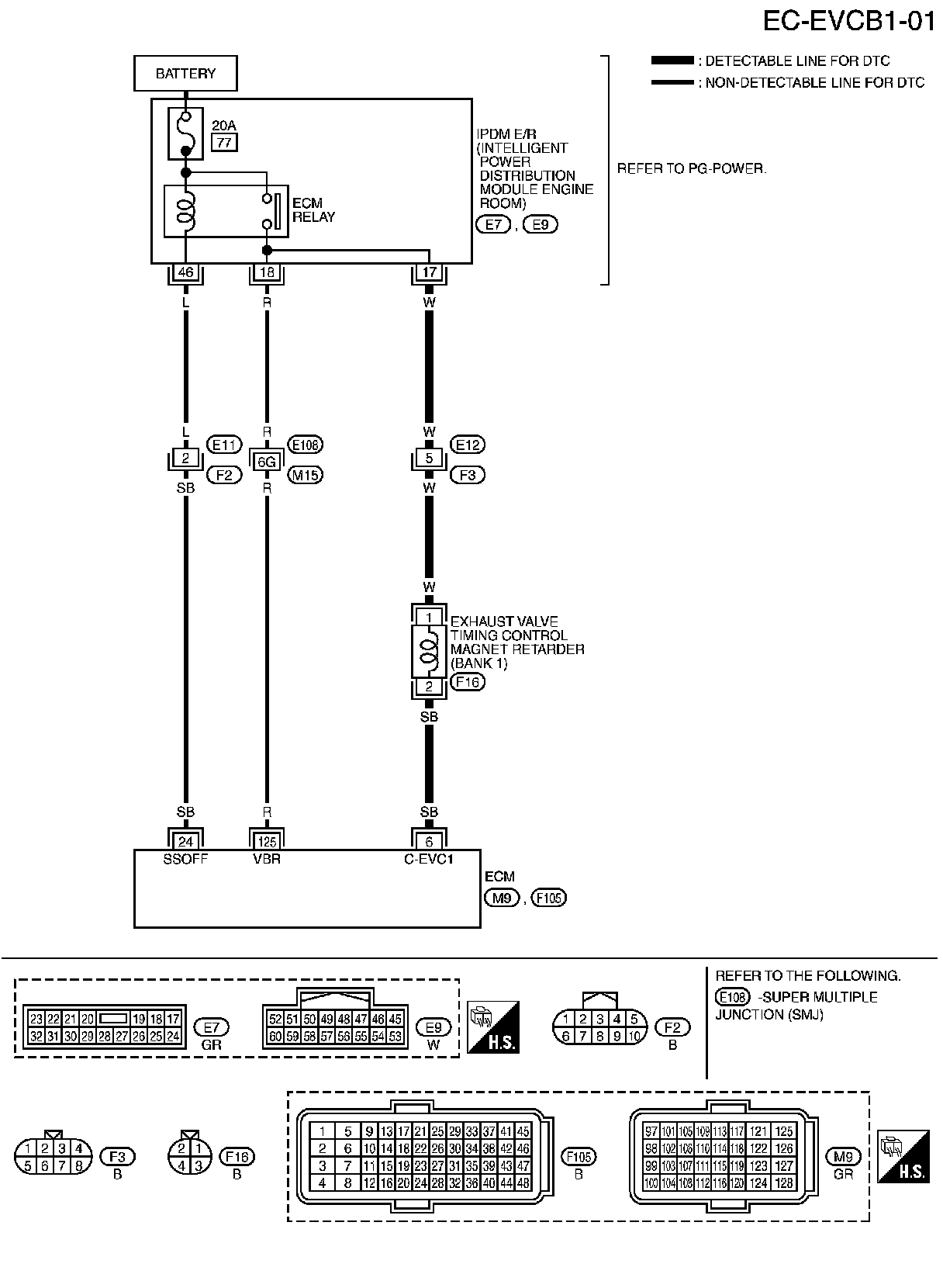

Wiring Diagram
