EVAP Canister Purge Volume Control Solenoid Valve

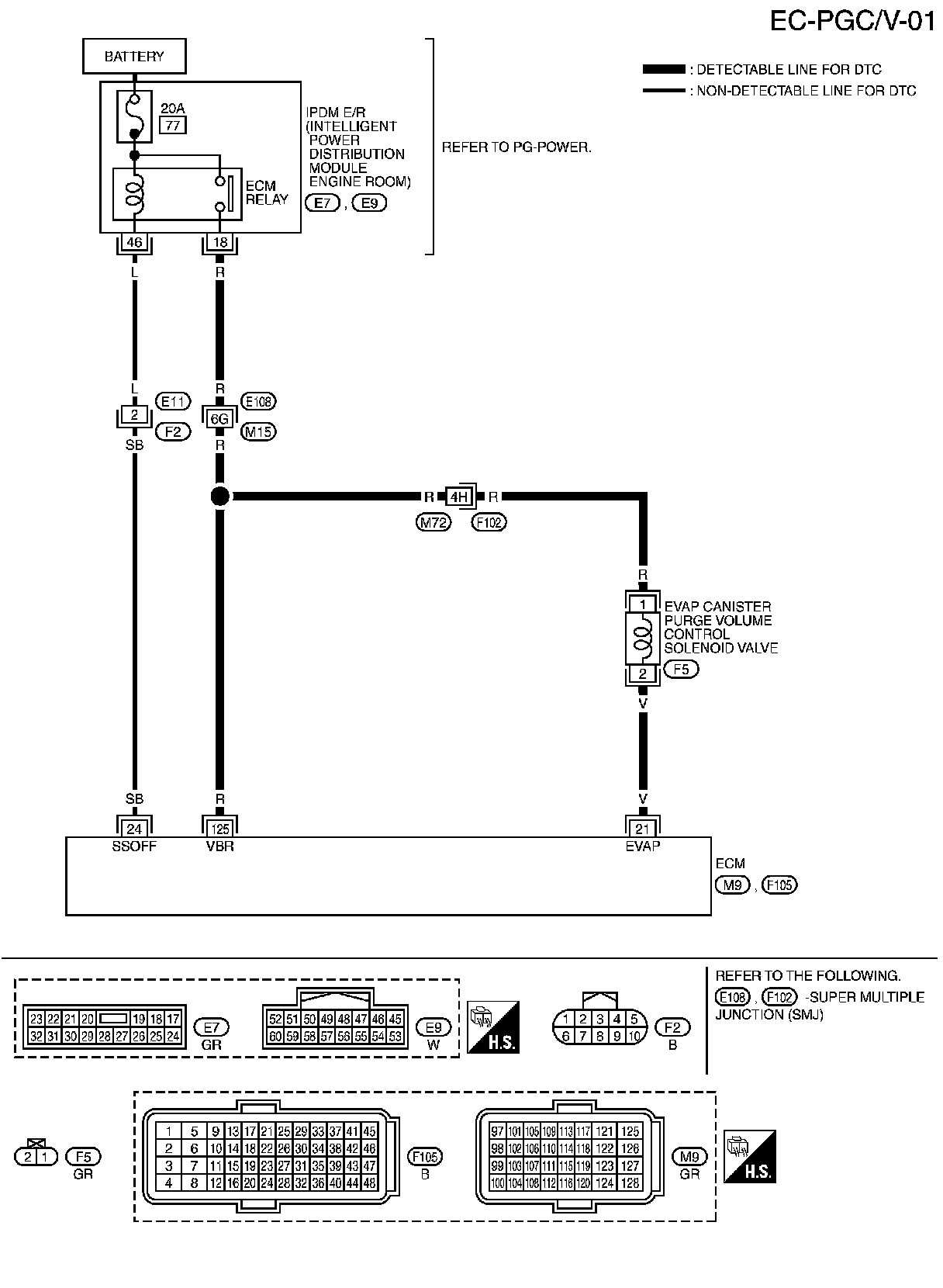

P0444, P0445 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE


Wiring Diagram










P0443 EVAP CANISTER PURGE VOLUME CONTROL SOLENOID VALVE


Wiring Diagram
