Rear Power Window Switch
Rear Power Window Switch
REAR
POWER WINDOW SWITCH

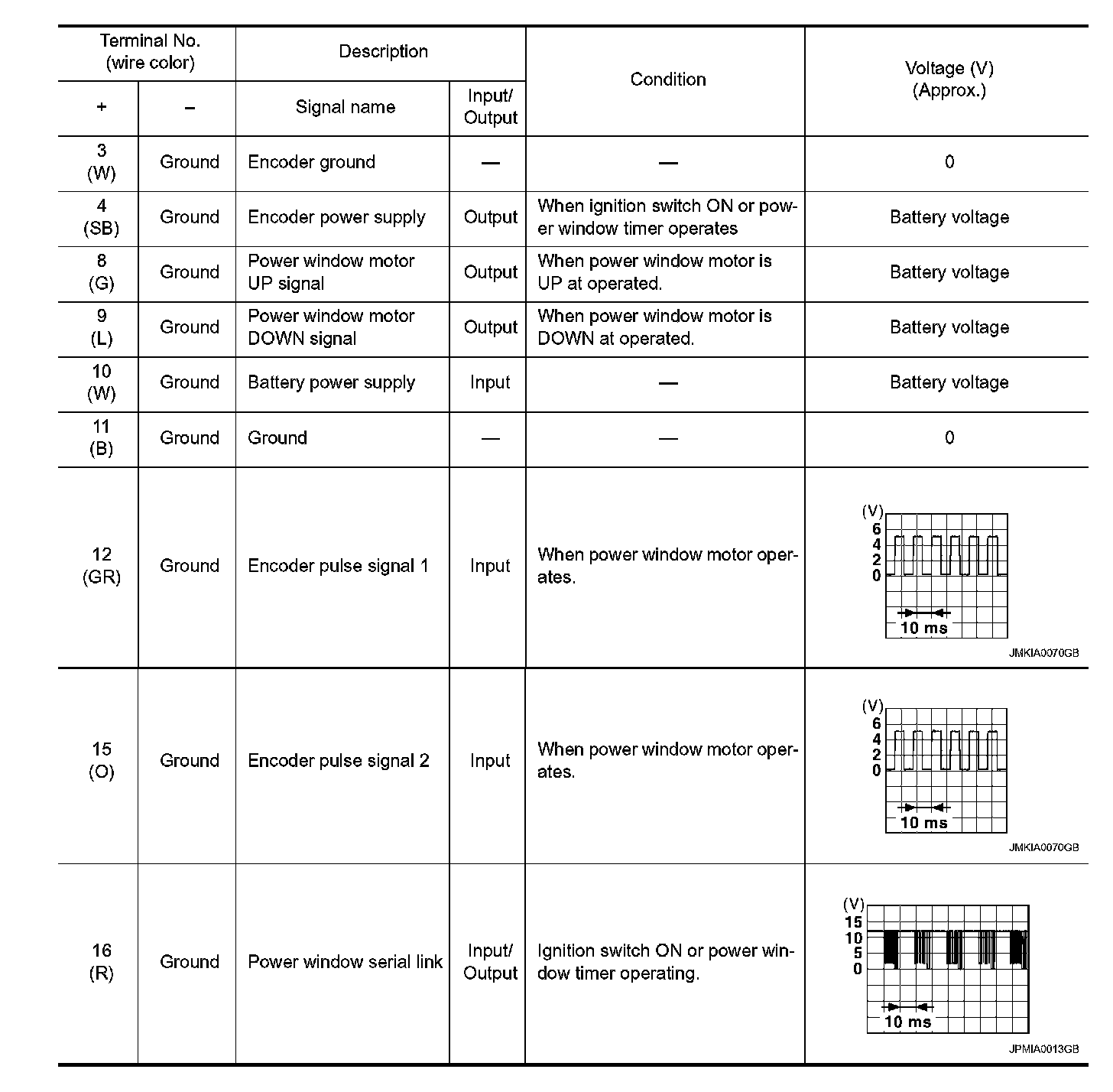

Reference Value

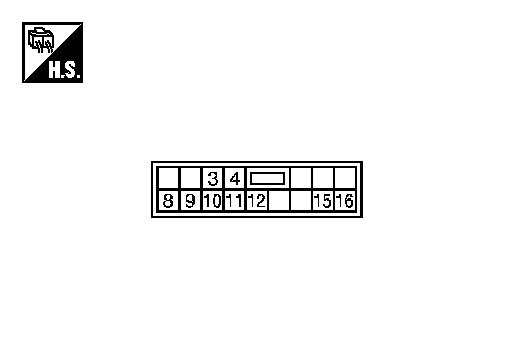

TERMINAL LAYOUT
PHYSICAL VALUES
Rear
Power Window Switch
