Front Power Window Switch
Front Power Window Switch
FRONT
POWER WINDOW SWITCH

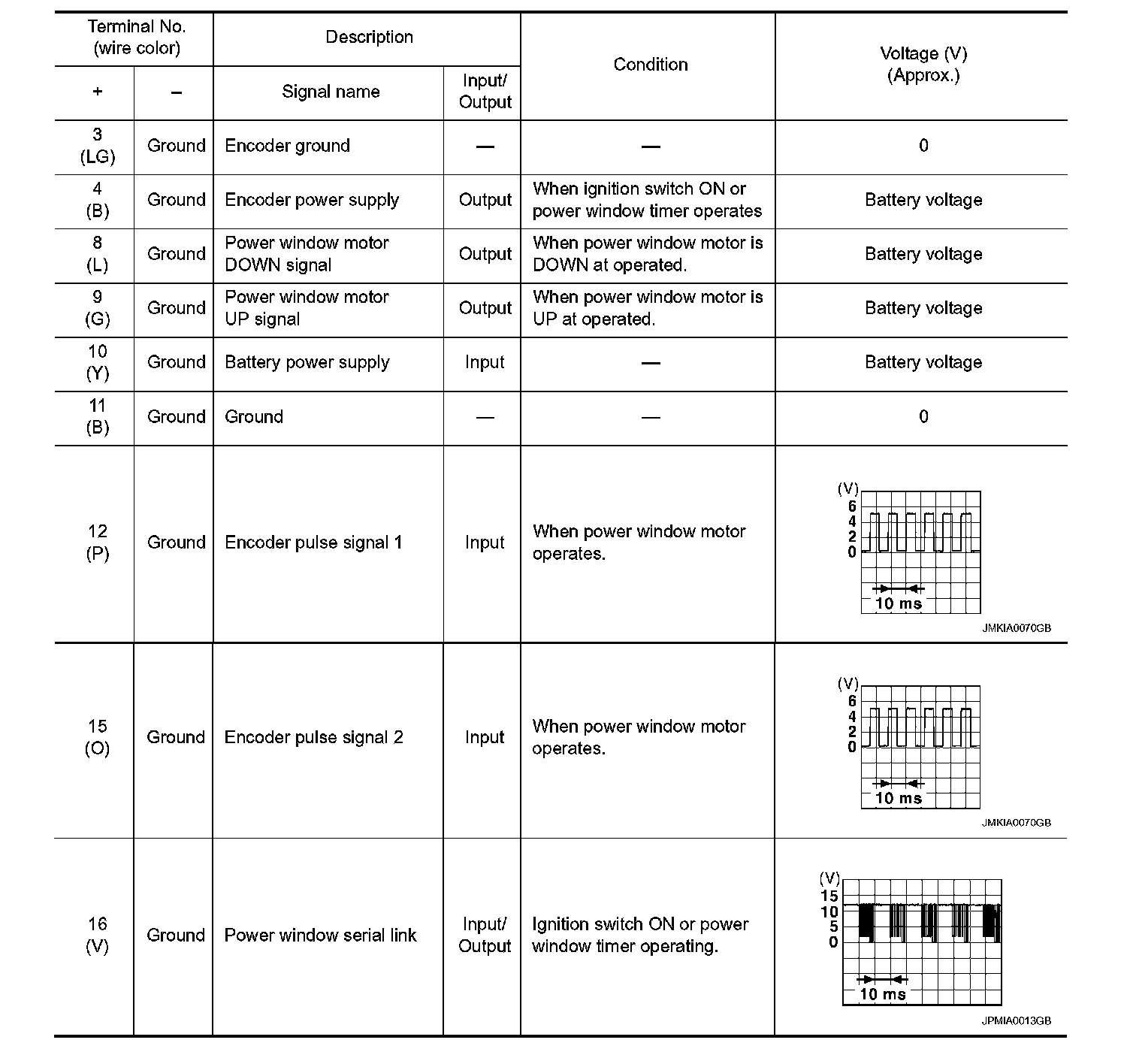

Reference Value

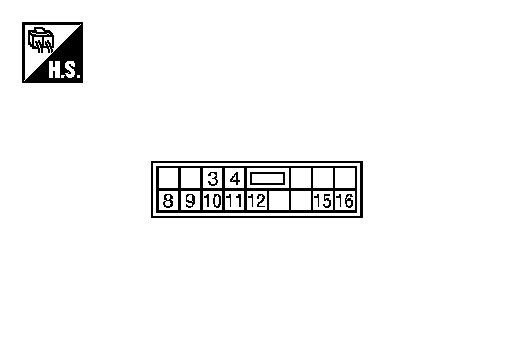

TERMINAL LAYOUT
PHYSICAL VALUES
Front
Power Window Switch
