Component Inspection

POWER WINDOW MOTOR


REAR LH : Component Inspection

1.CHECK REAR POWER WINDOW MOTOR LH
1. Turn ignition switch OFF.
2. Disconnect rear power window motor LH connector.

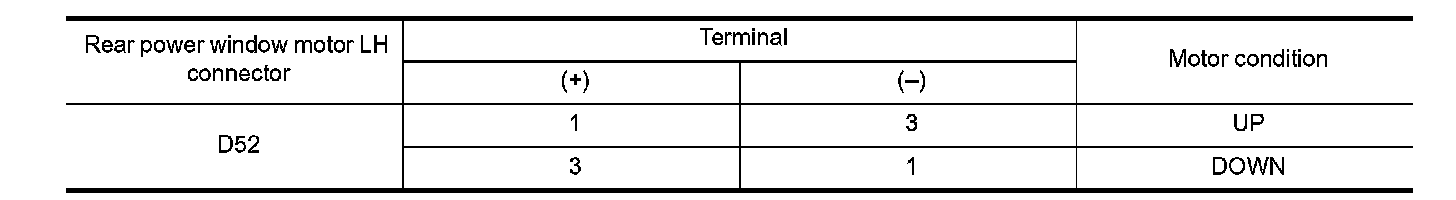

3. Check motor operation by connecting the battery voltage directly to rear power window motor LH connector.





Is the inspection result normal?
YES - Power window motor is OK.
NO - Replace rear power window motor LH. Refer to Removal and Replacement.
