Component Inspection

POWER WINDOW MOTOR


PASSENGER SIDE : Component Inspection

1.CHECK POWER WINDOW MOTOR (PASSENGER SIDE)
1. Turn ignition switch OFF.
2. Disconnect front power window motor (passenger side) connector.

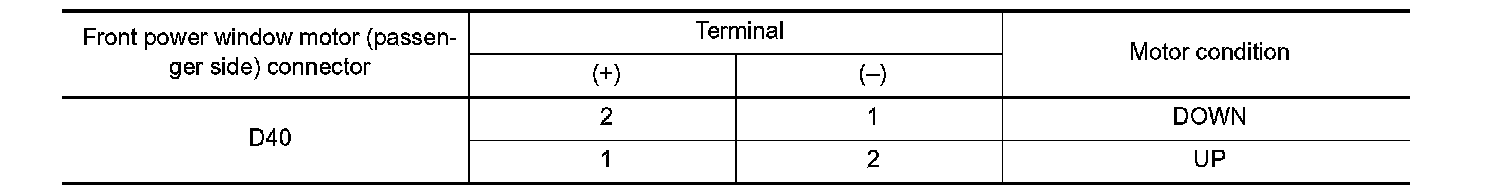

3. Check motor operation by connecting the battery voltage directly to front power window motor (passenger side) connector.





Is the inspection result normal?
YES - Passenger side power window motor is OK.
NO - Replace passenger side power window motor. Refer to Removal and Installation.
