4WAS Main Control Unit





4WAS MAIN CONTROL UNIT


Reference Value

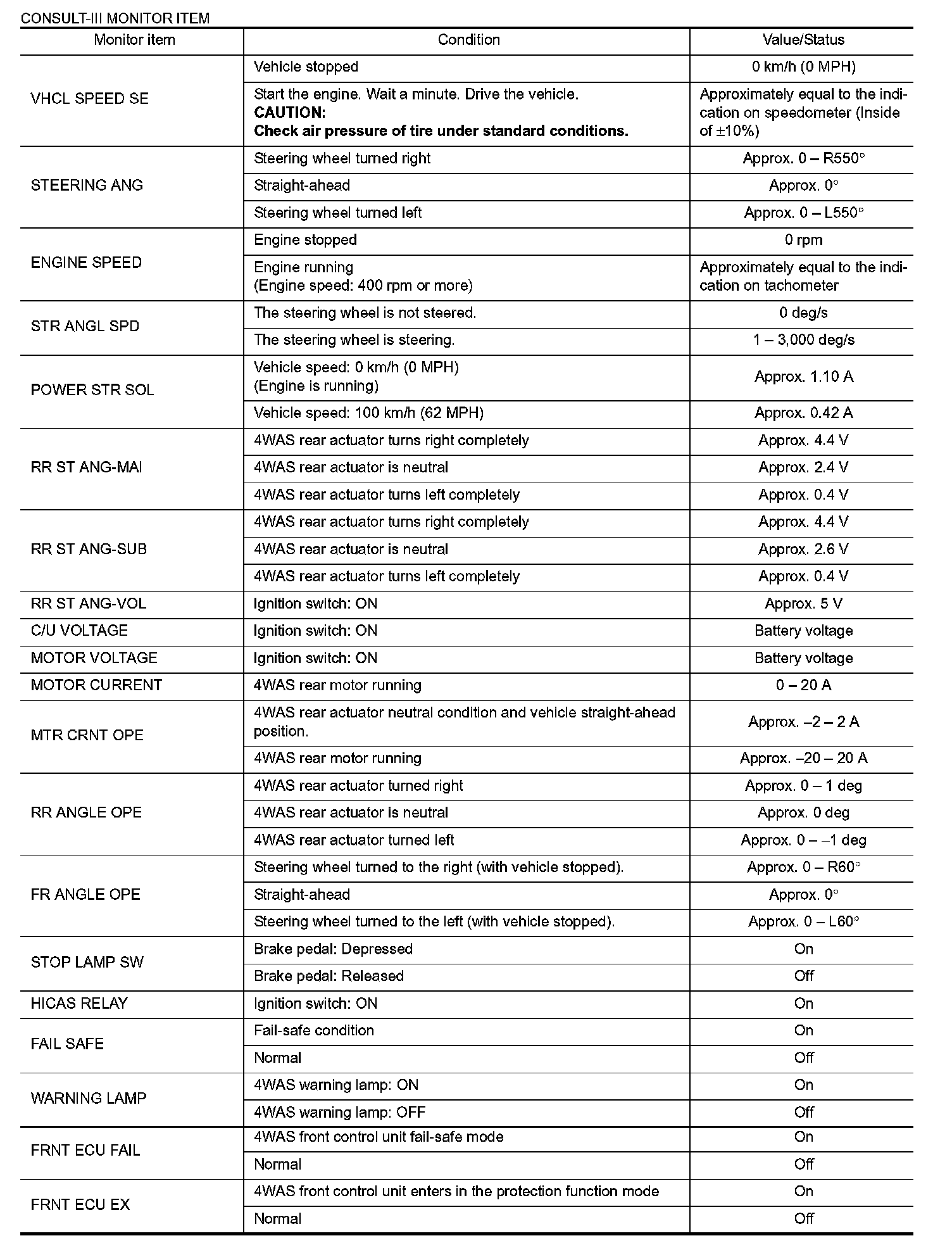

VALUES ON THE DIAGNOSIS TOOL






TERMINAL LAYOUT

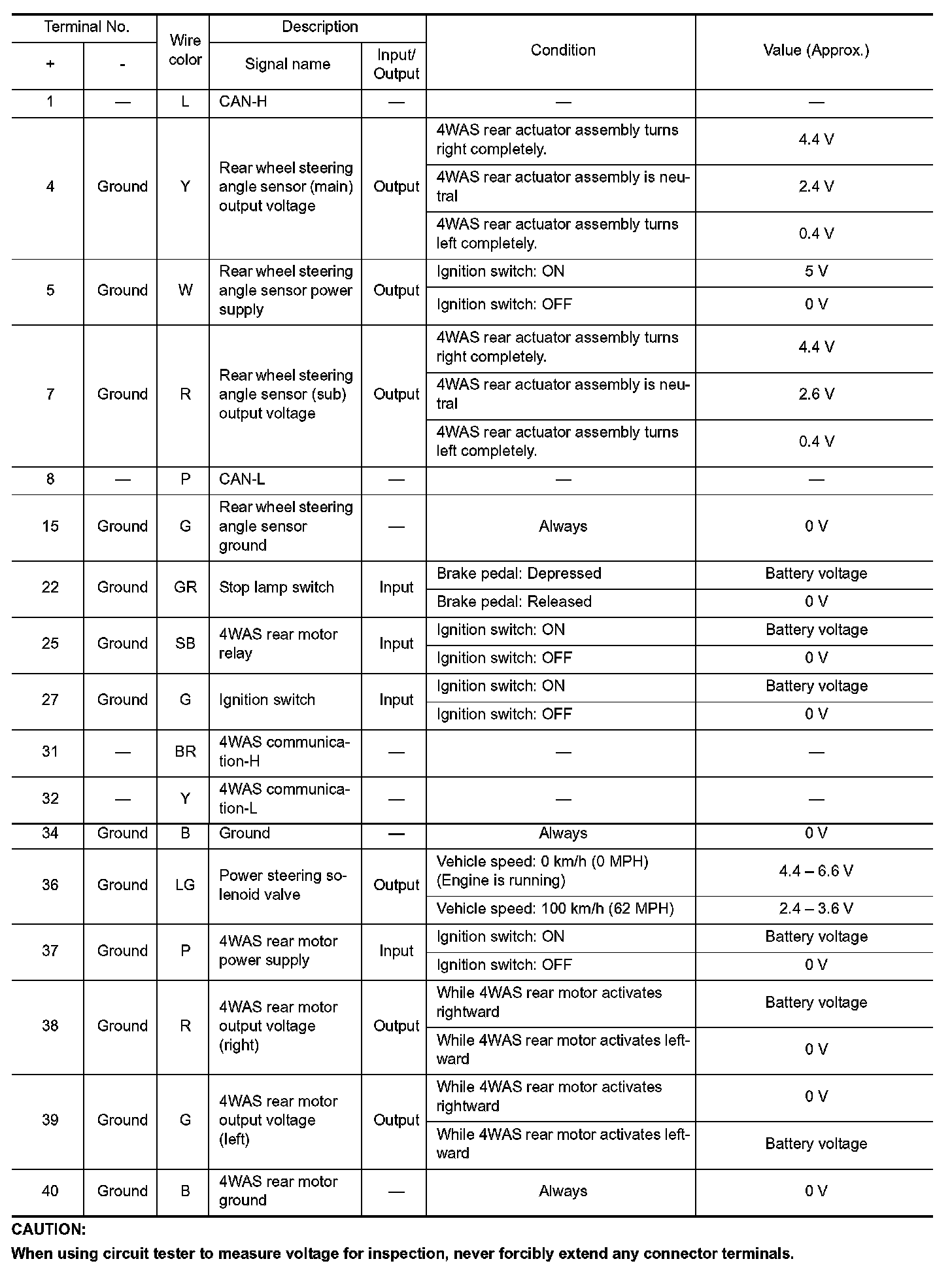

PHYSICAL VALUES
