Cylinder Head Assembly





SERVICE DATA AND SPECIFICATIONS (SDS)


Cylinder Head

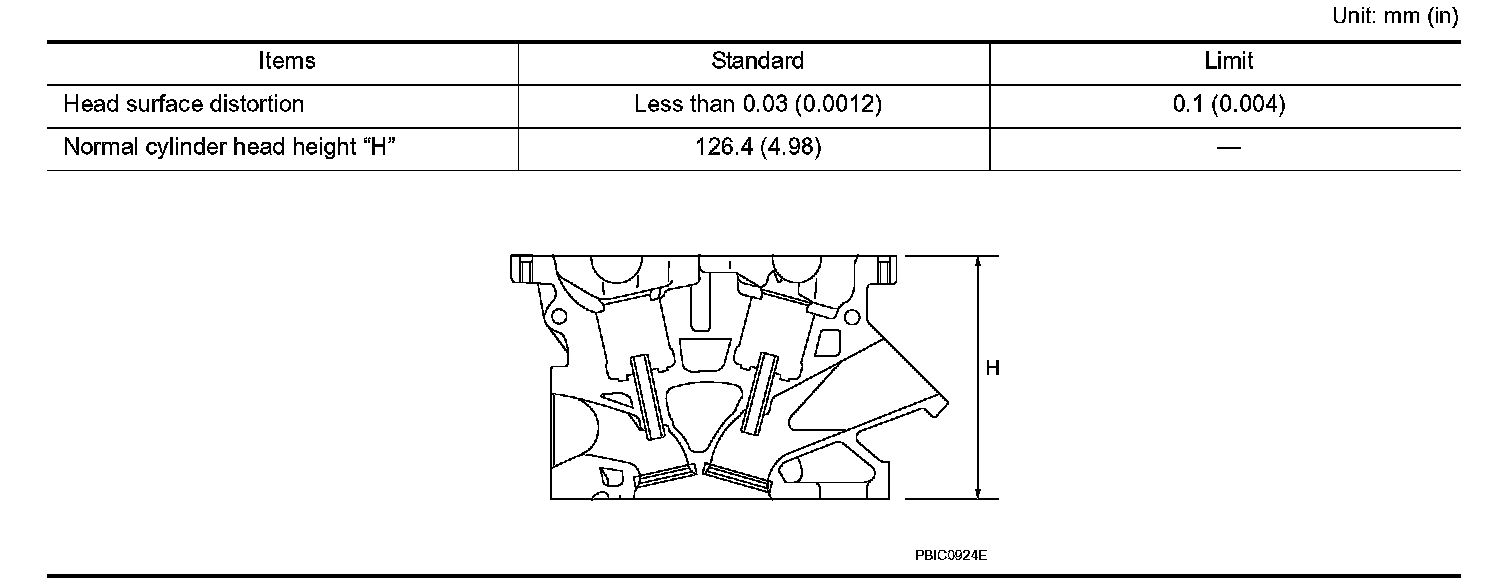

CYLINDER HEAD

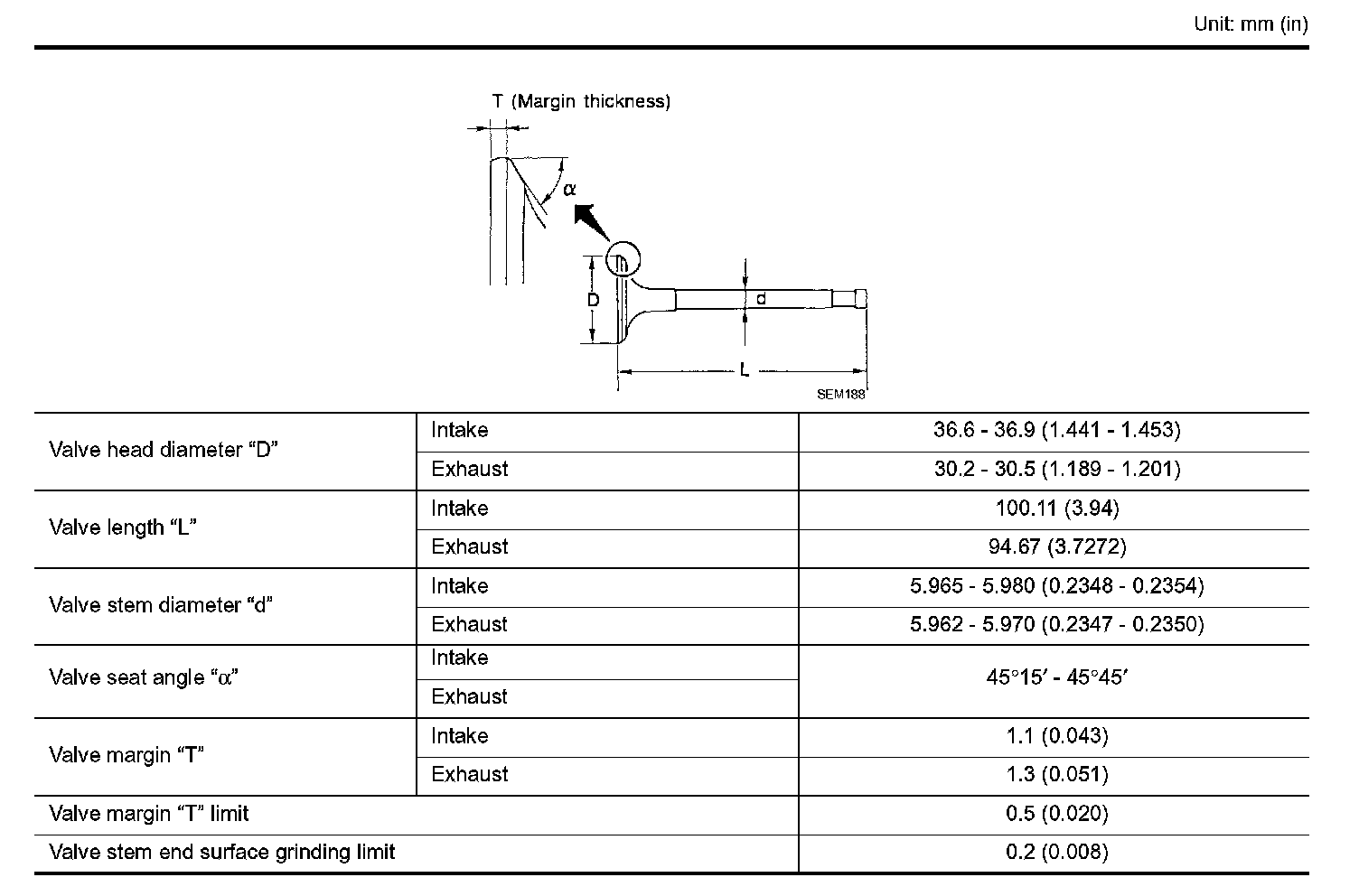

VALVE DIMENSIONS

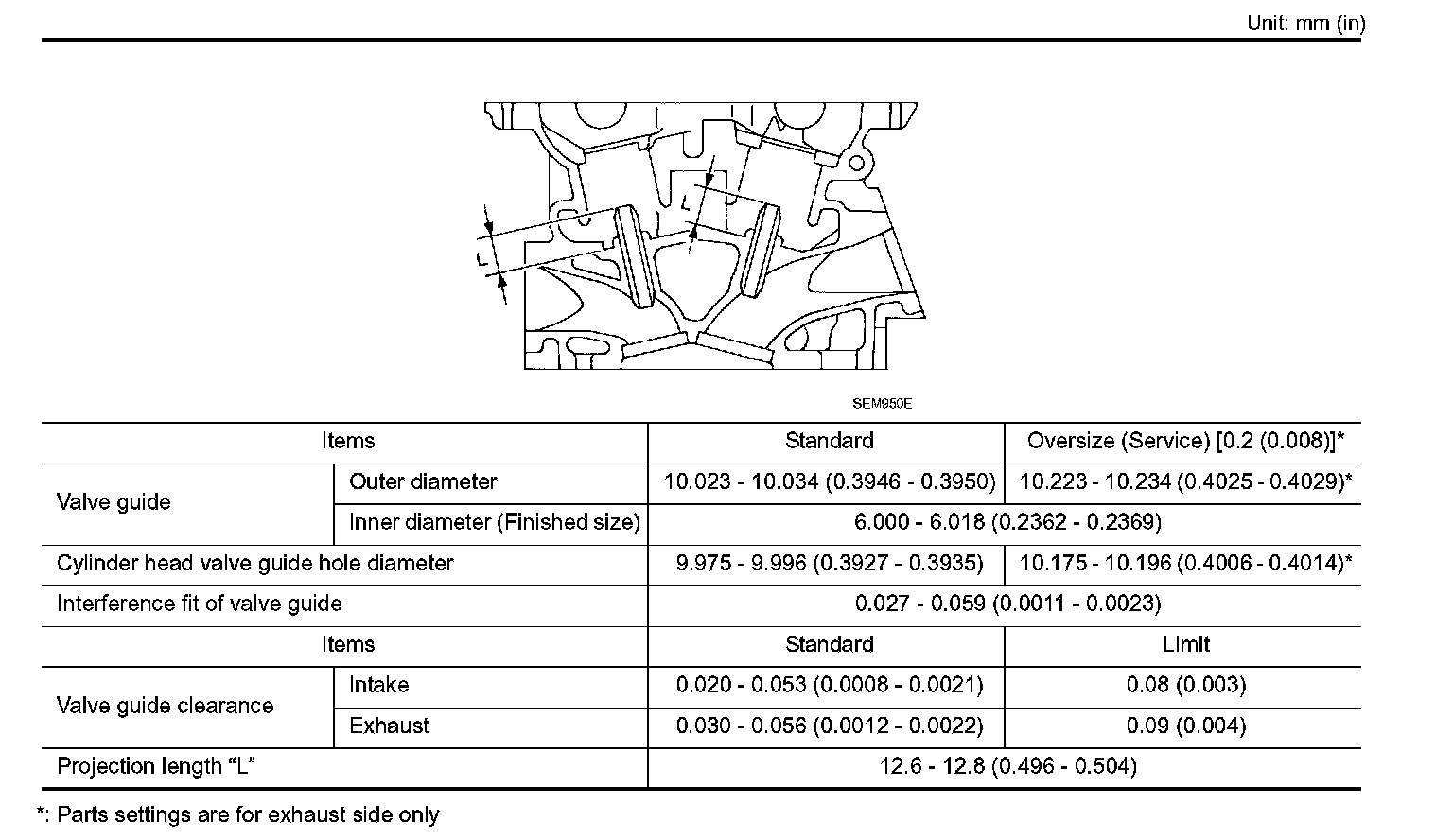

VALVE GUIDE

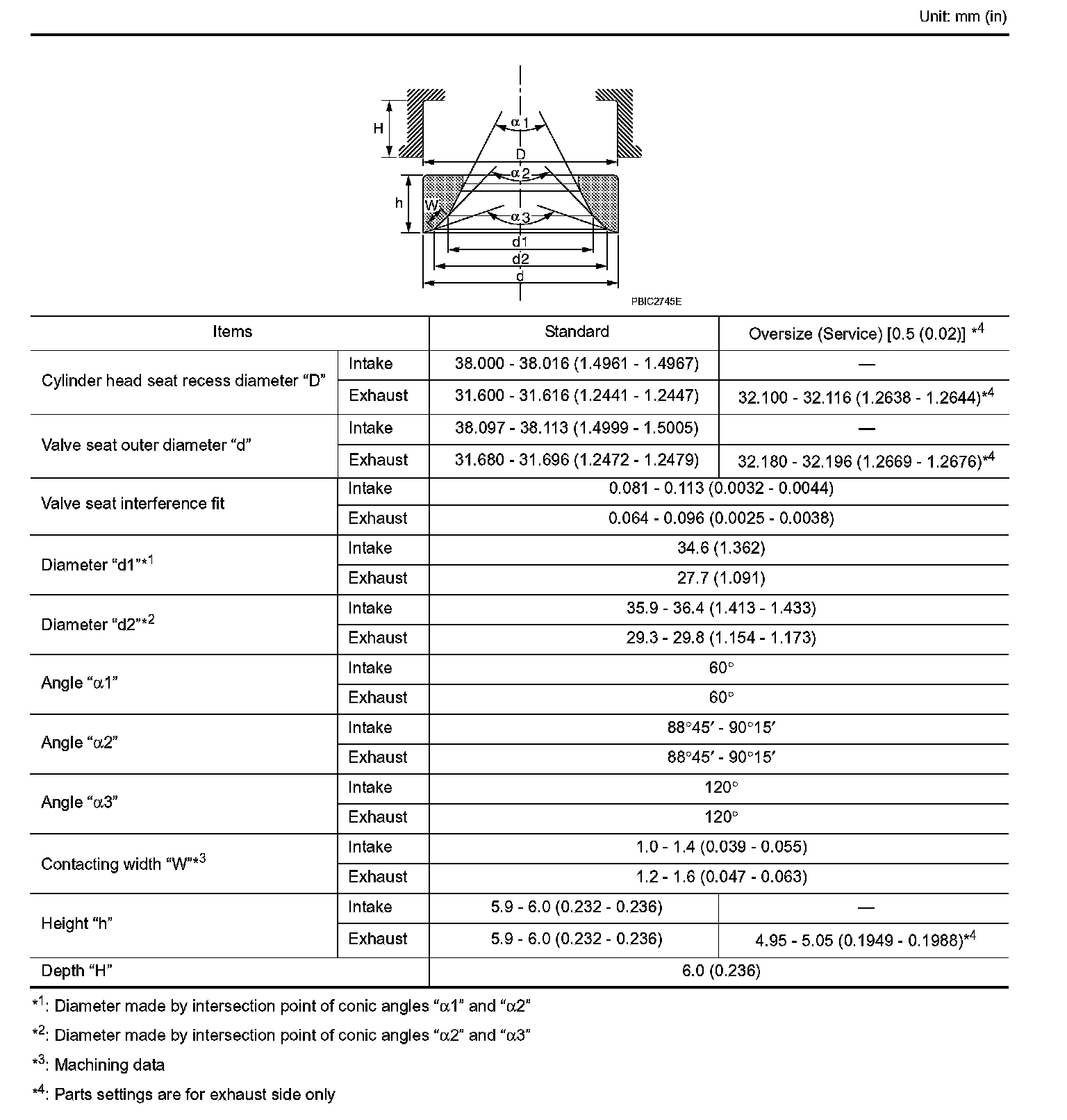

VALVE SEAT

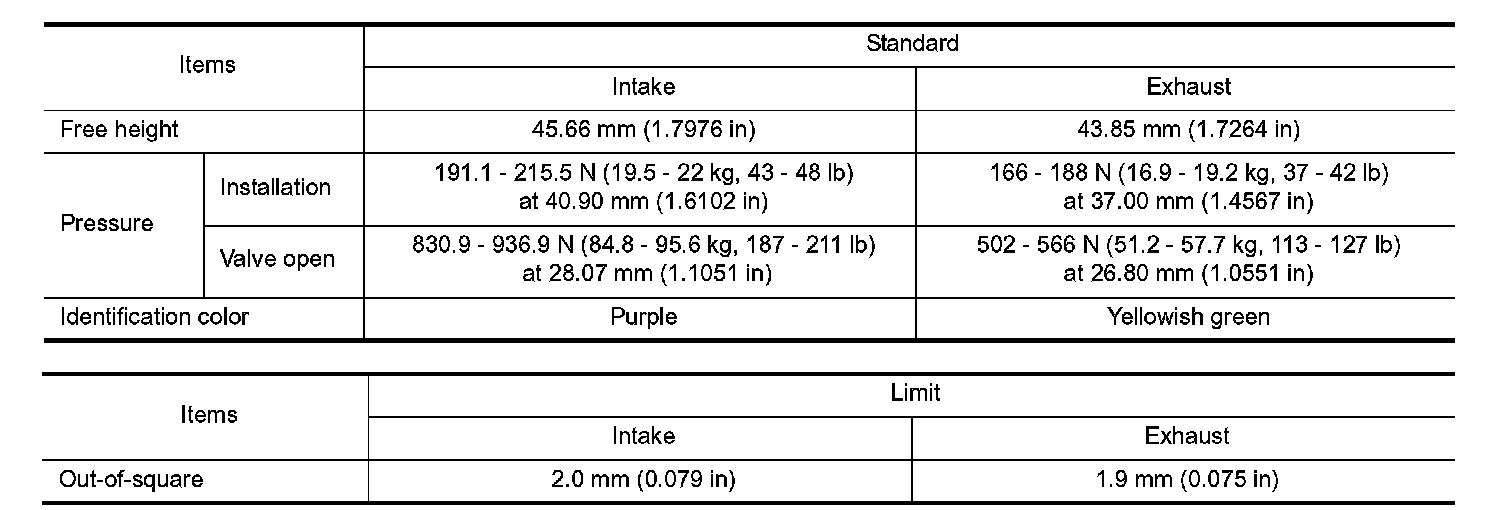

VALVE SPRING
