Home >> Infiniti >> 2010 >> G37x Sedan AWD V6-3.7L (VQ37VHR) >> Repair and Diagnosis >> Restraints and Safety Systems >> Air Bag Systems >> Air Bag Control Module >> Locations

Air Bag Control Module: Locations





PASSENGER SEAT BELT WARNING SYSTEM

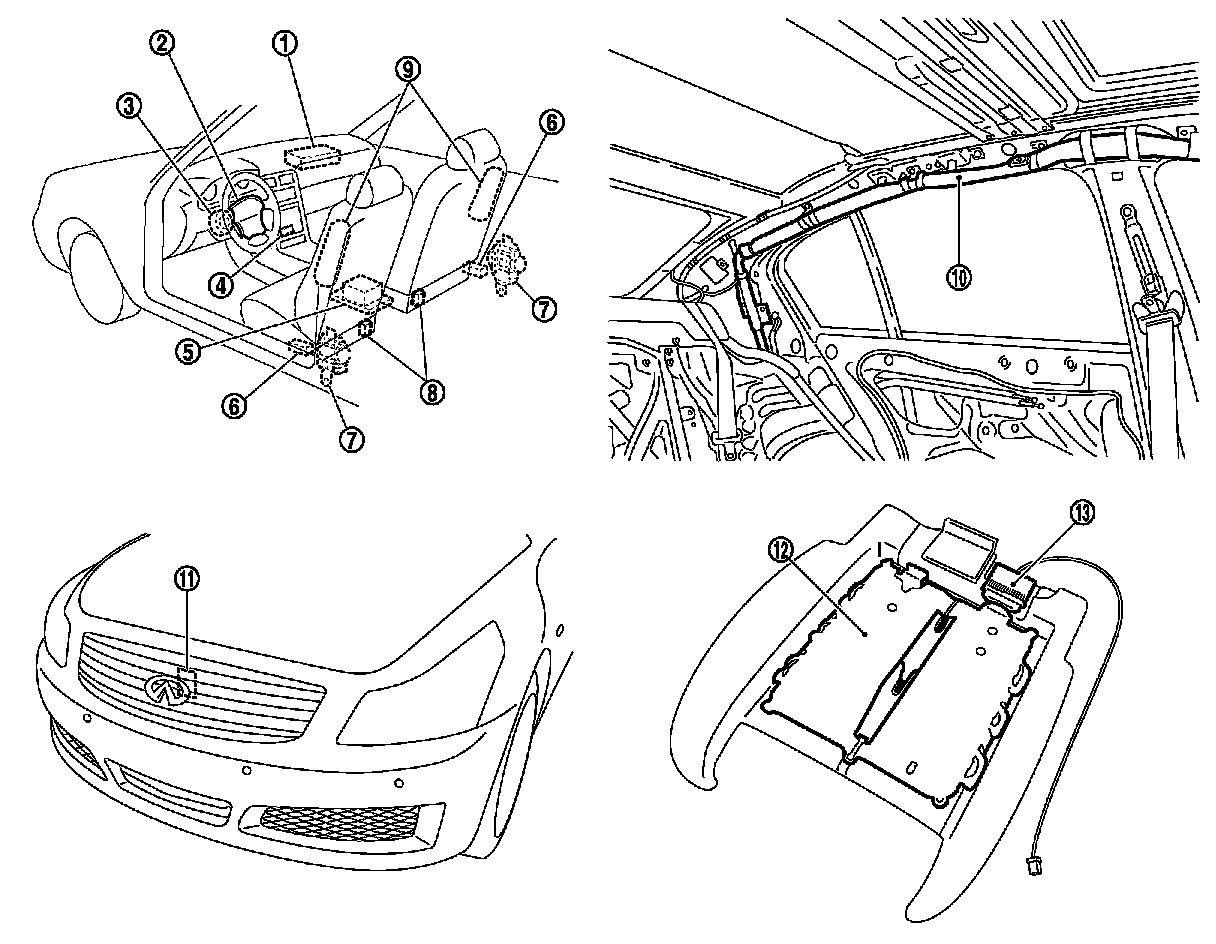

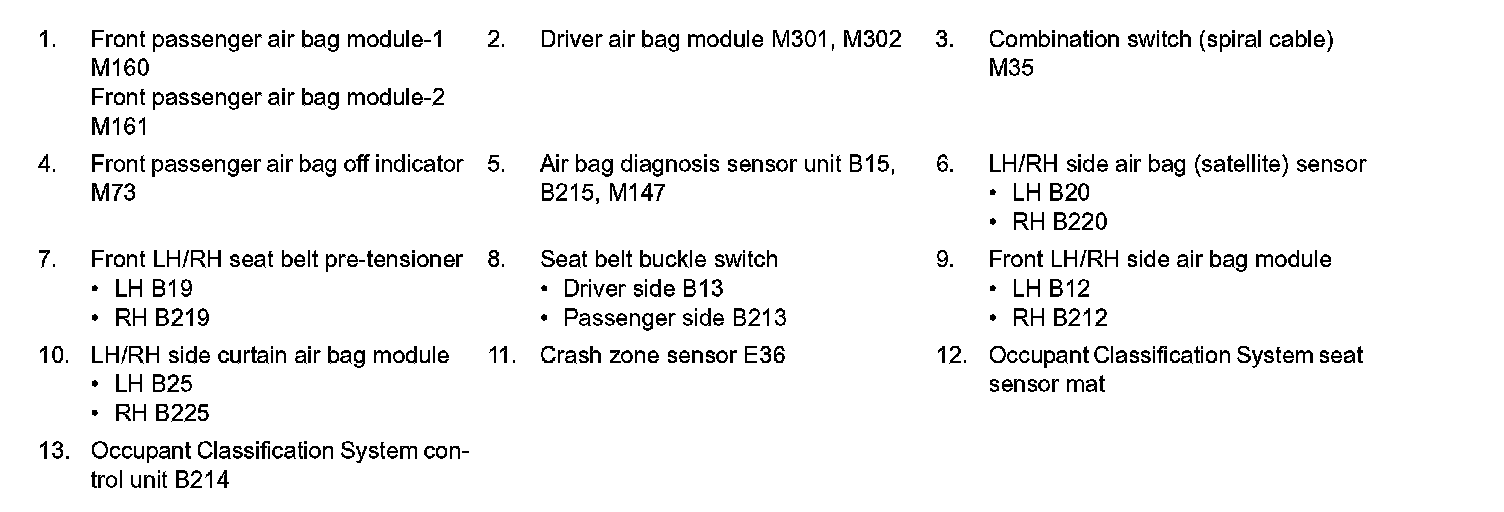

Component Parts Location
