Accelerator Pedal Position Sensor: Locations

LINE PRESSURE CONTROL

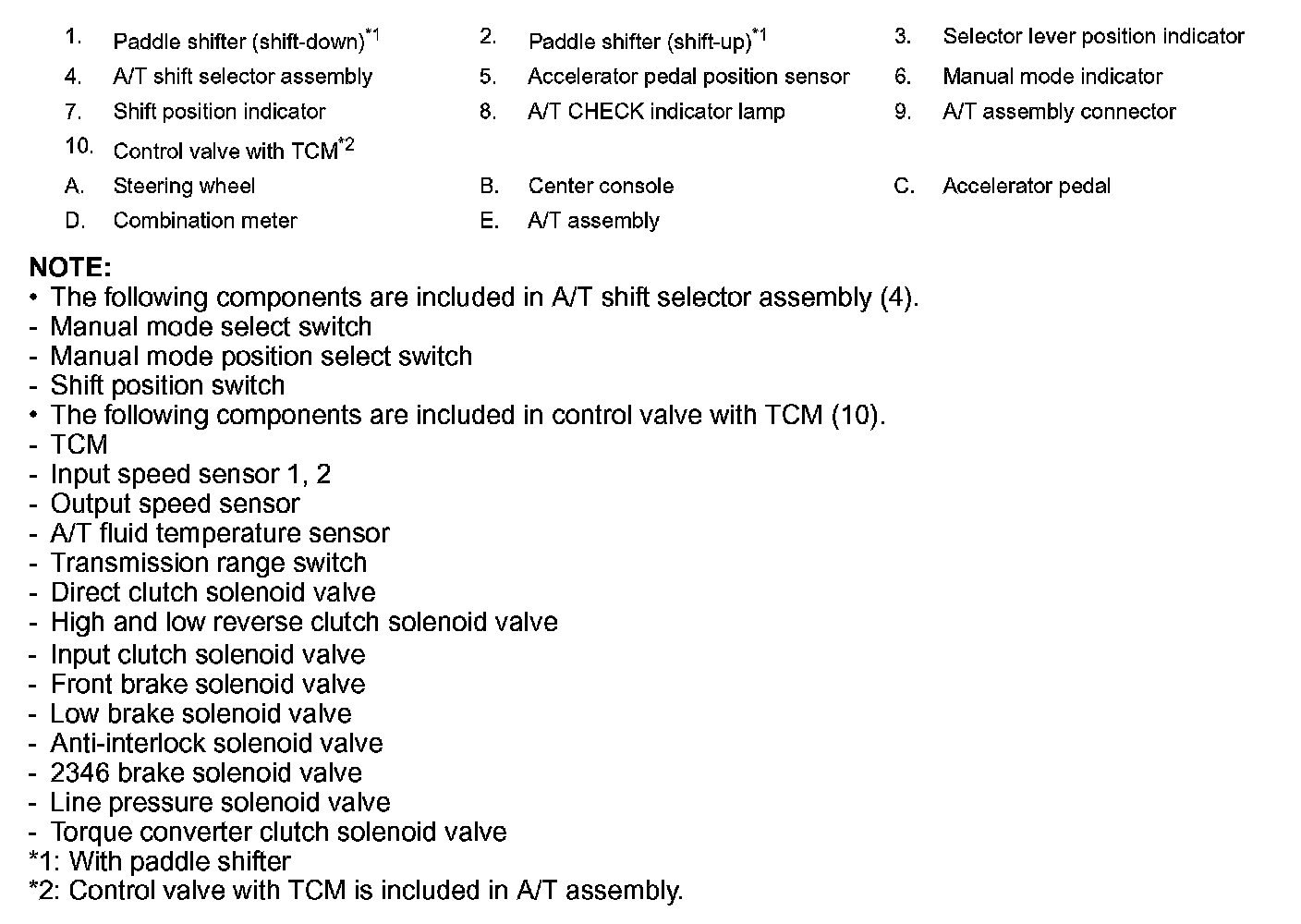

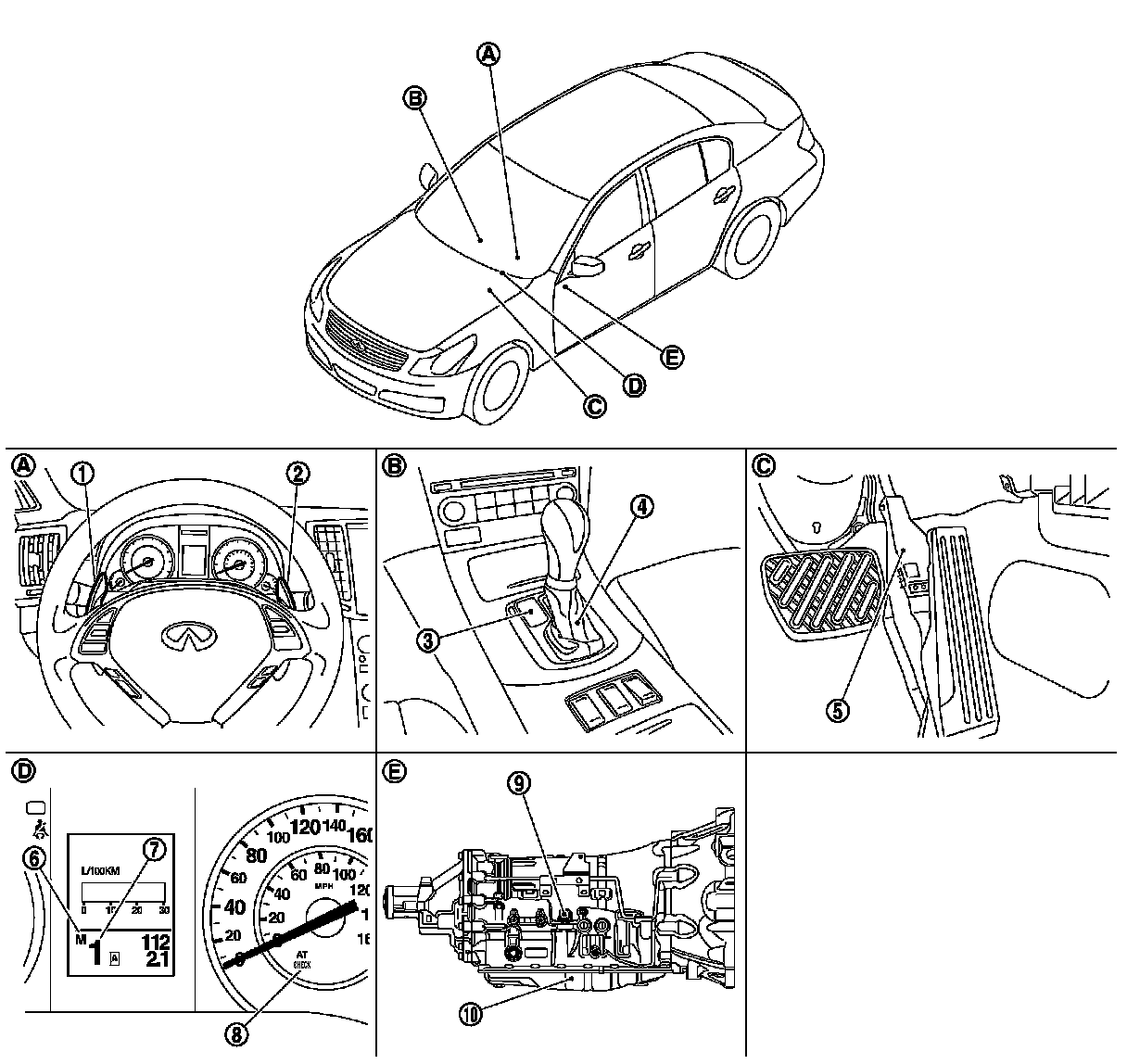

Component Parts Location












NOTE:
- The following components are included in A/T shift selector assembly (4).
- Manual mode select switch
- Manual mode position select switch
- Shift position switch
- The following components are included in control valve with TCM (10).
- TCM
- Input speed sensor 1, 2
- Output speed sensor
- A/T fluid temperature sensor
- Transmission range switch
- Direct clutch solenoid valve
- High and low reverse clutch solenoid valve
- Input clutch solenoid valve
- Front brake solenoid valve
- Low brake solenoid valve
- Anti-interlock solenoid valve
- 2346 brake solenoid valve
- Line pressure solenoid valve
- Torque converter clutch solenoid valve
*1: With paddle shifter
*2: Control valve with TCM is included in A/T assembly.
