System Diagram
>>
Automatic Drive Positioner Control System
Automatic Drive Positioner Control System
AUTOMATIC DRIVE POSITIONER CONTROL UNIT

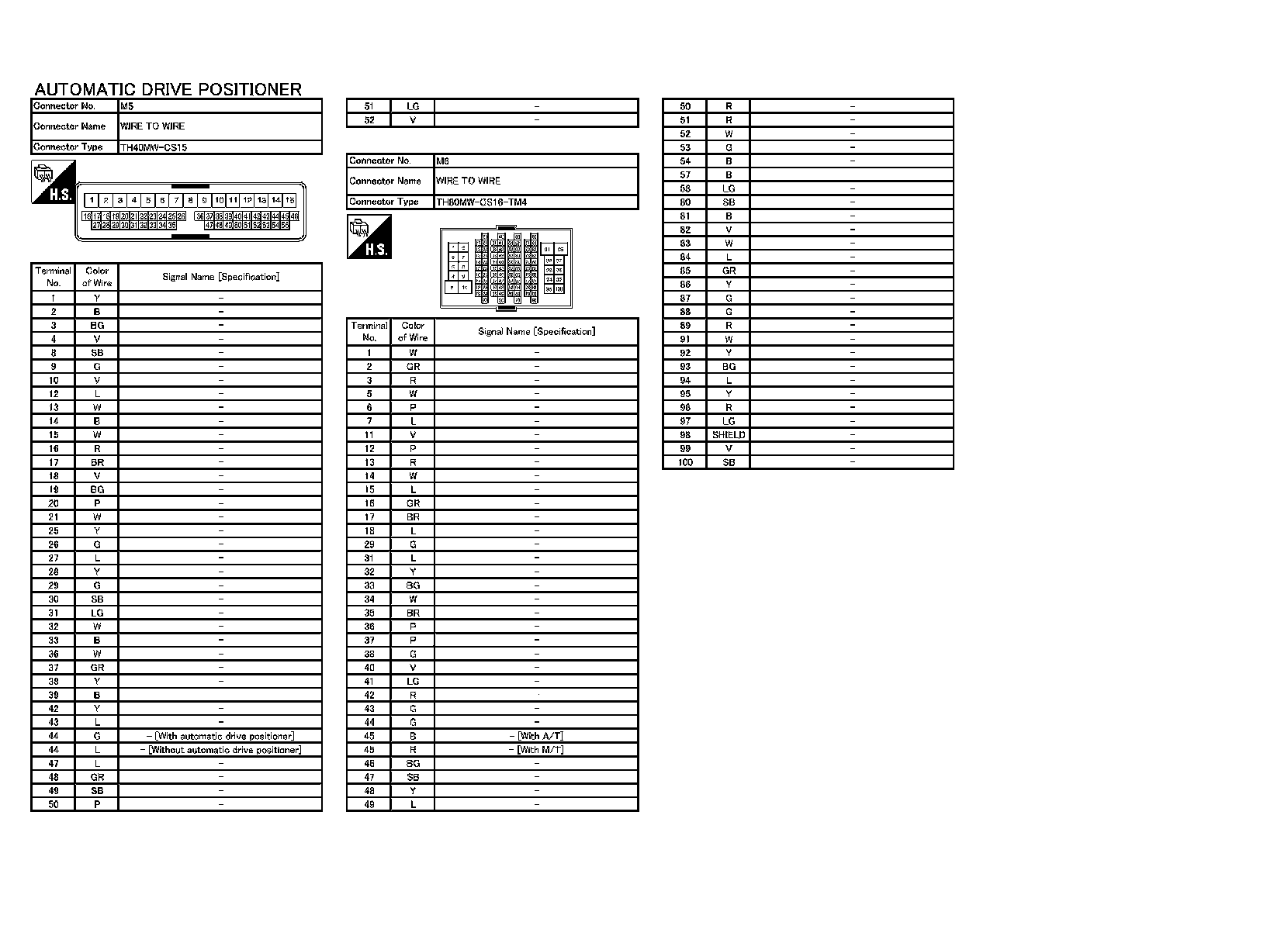

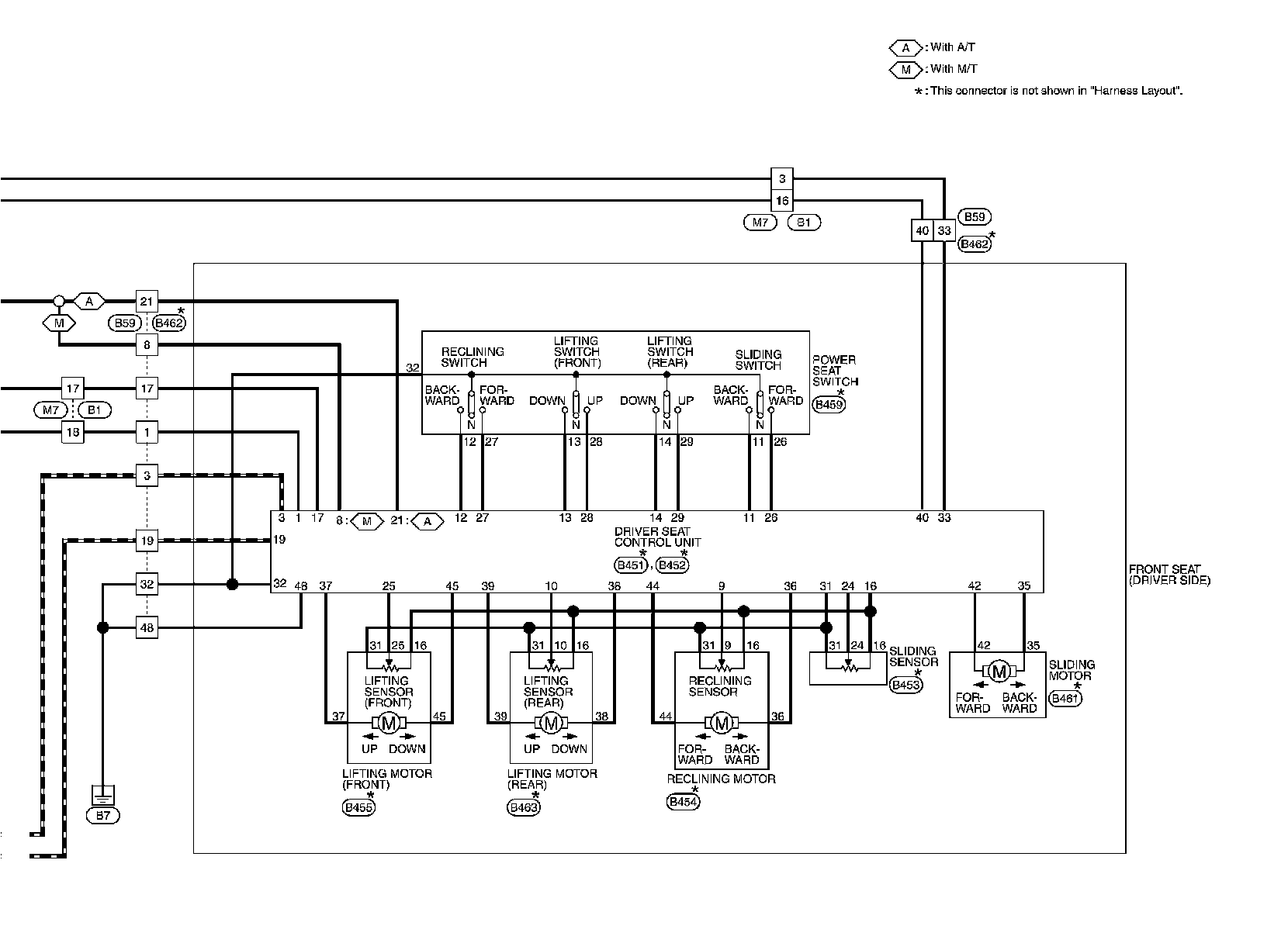

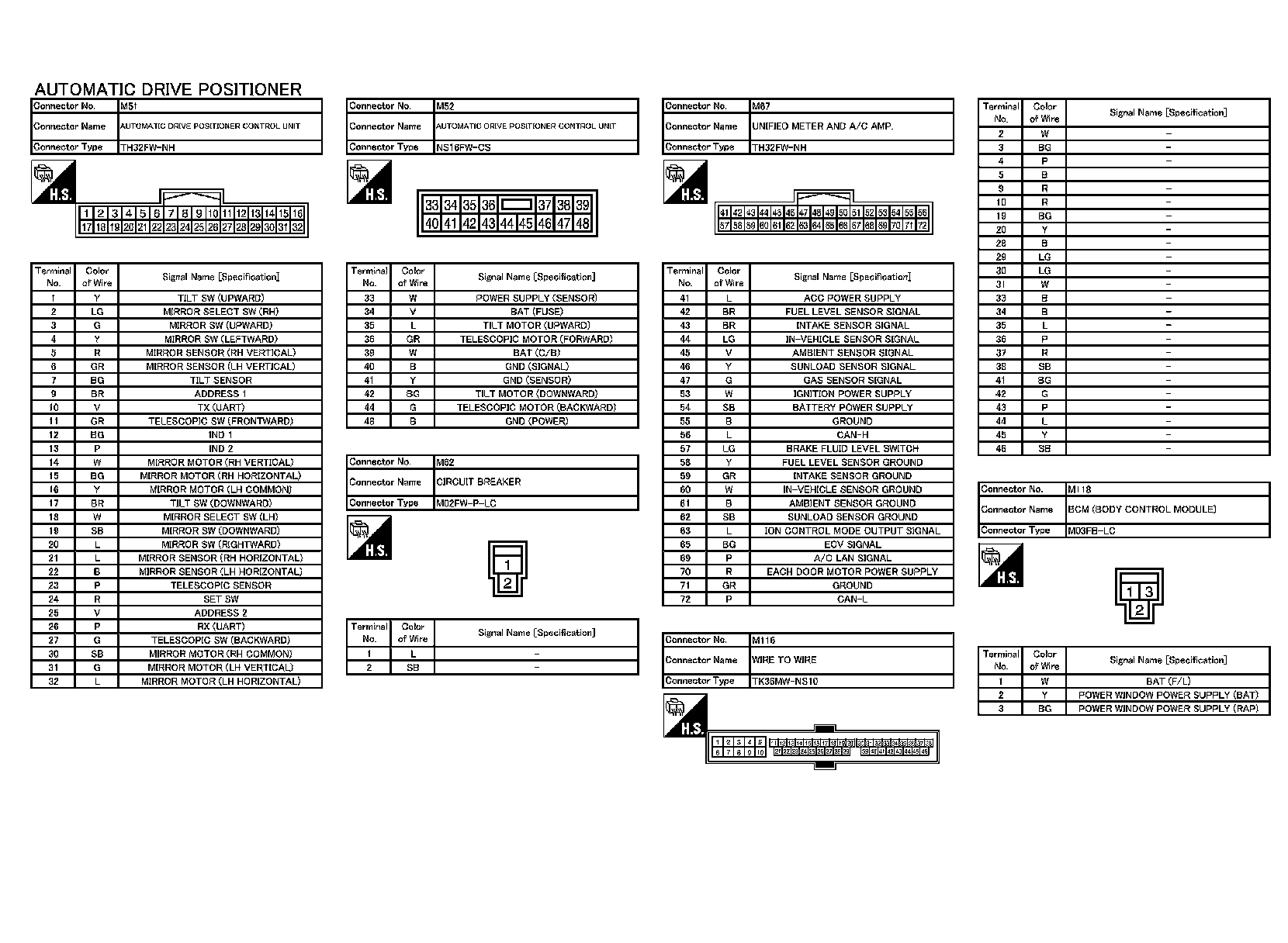

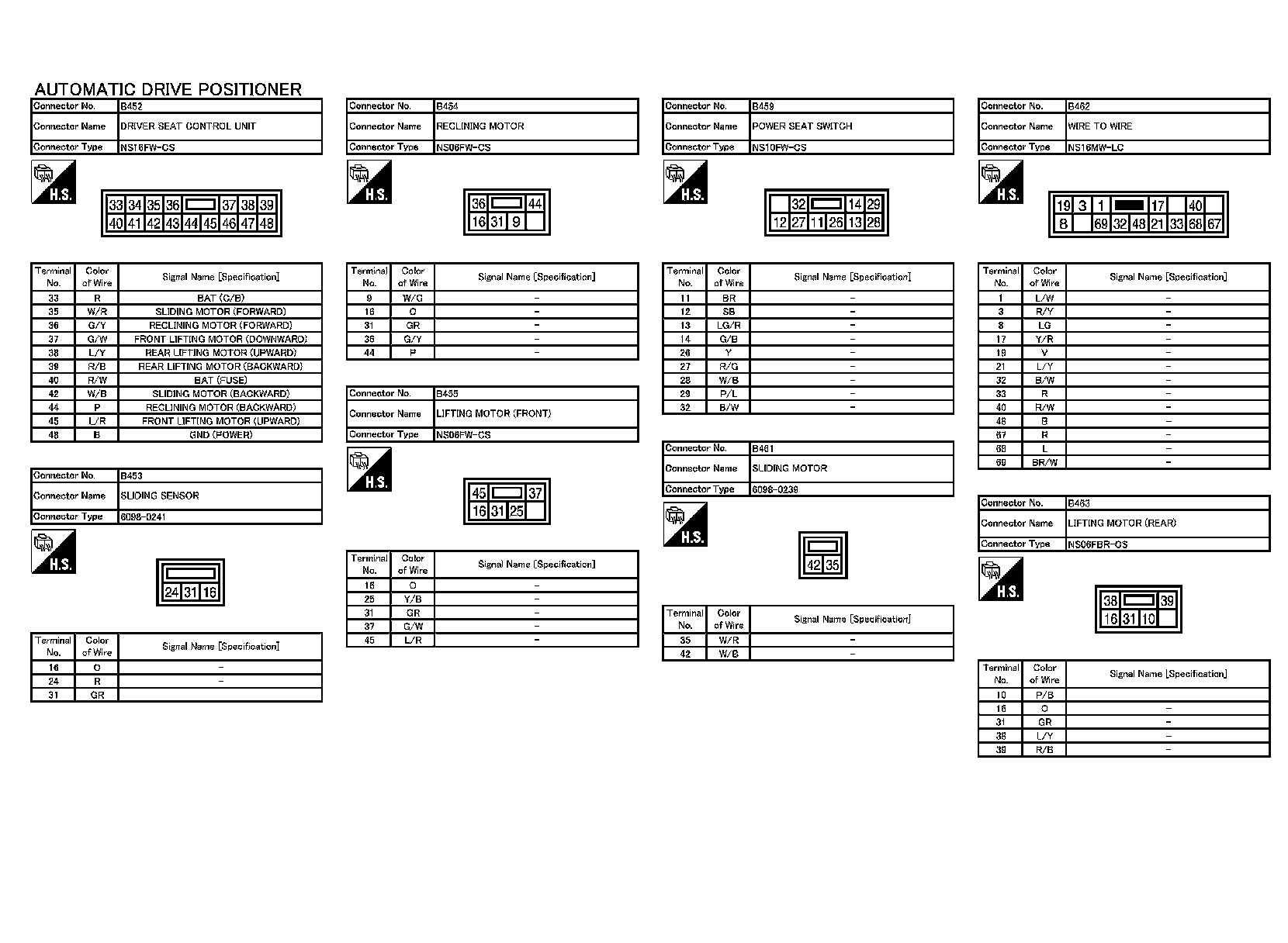

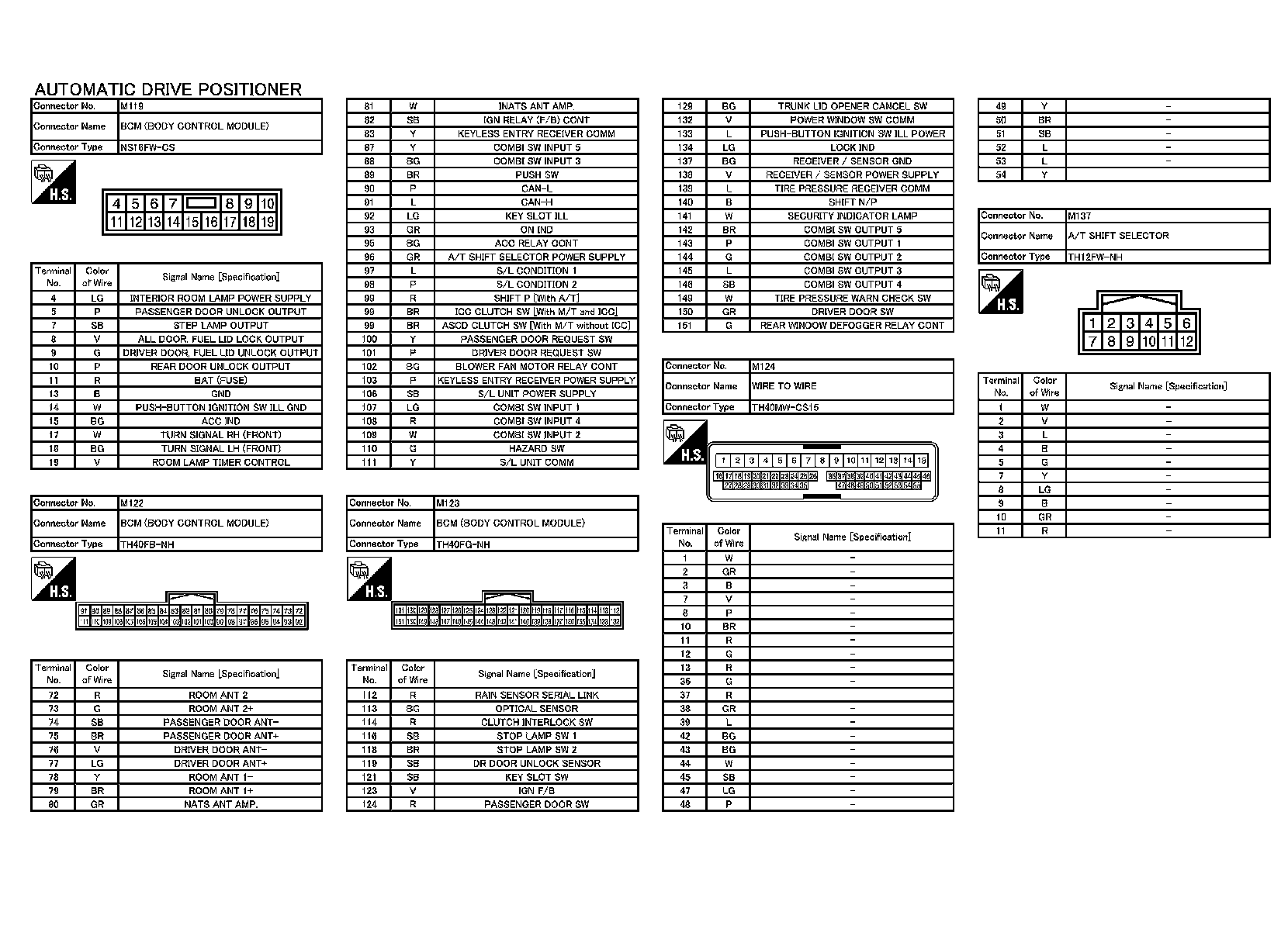

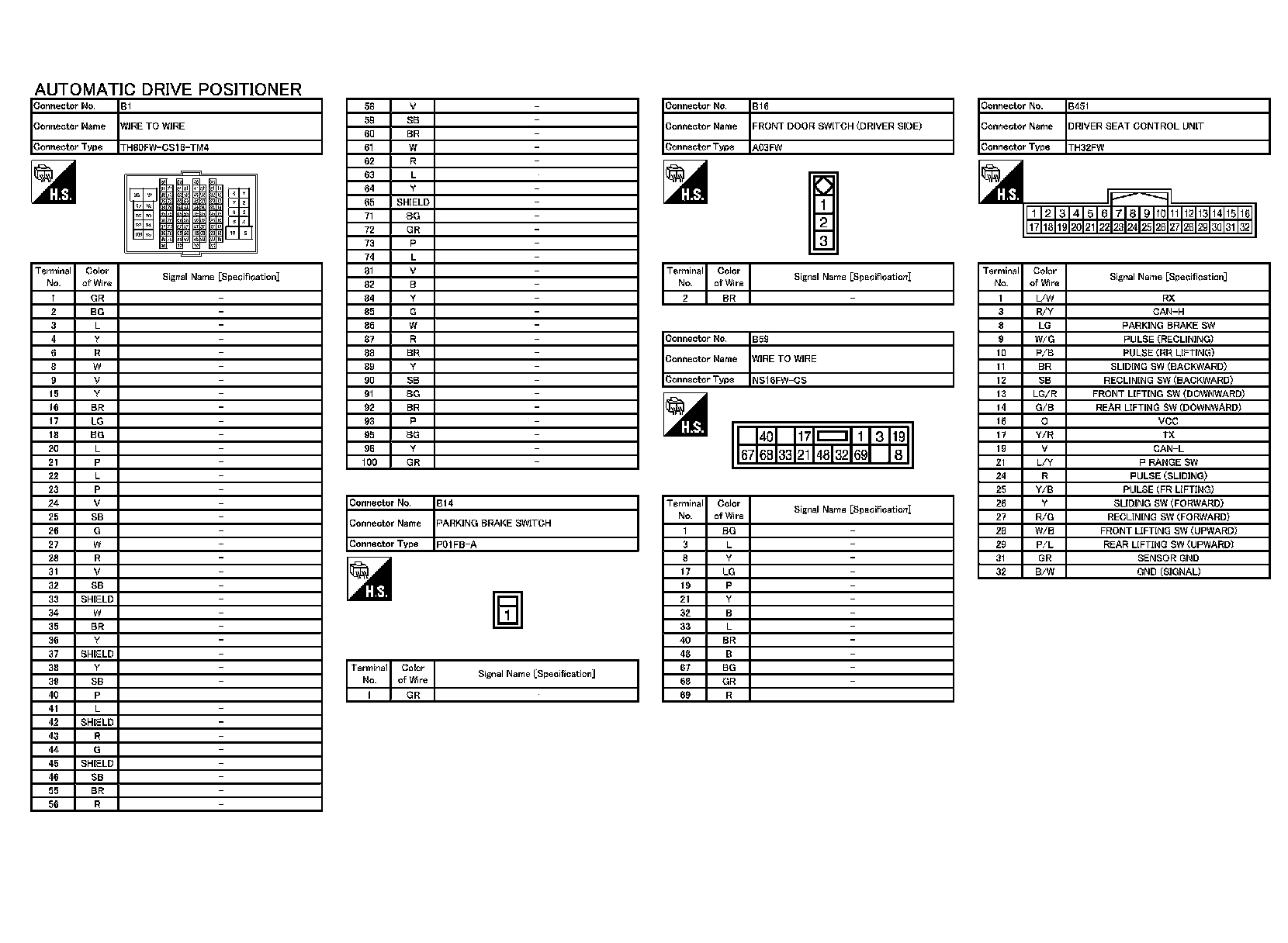

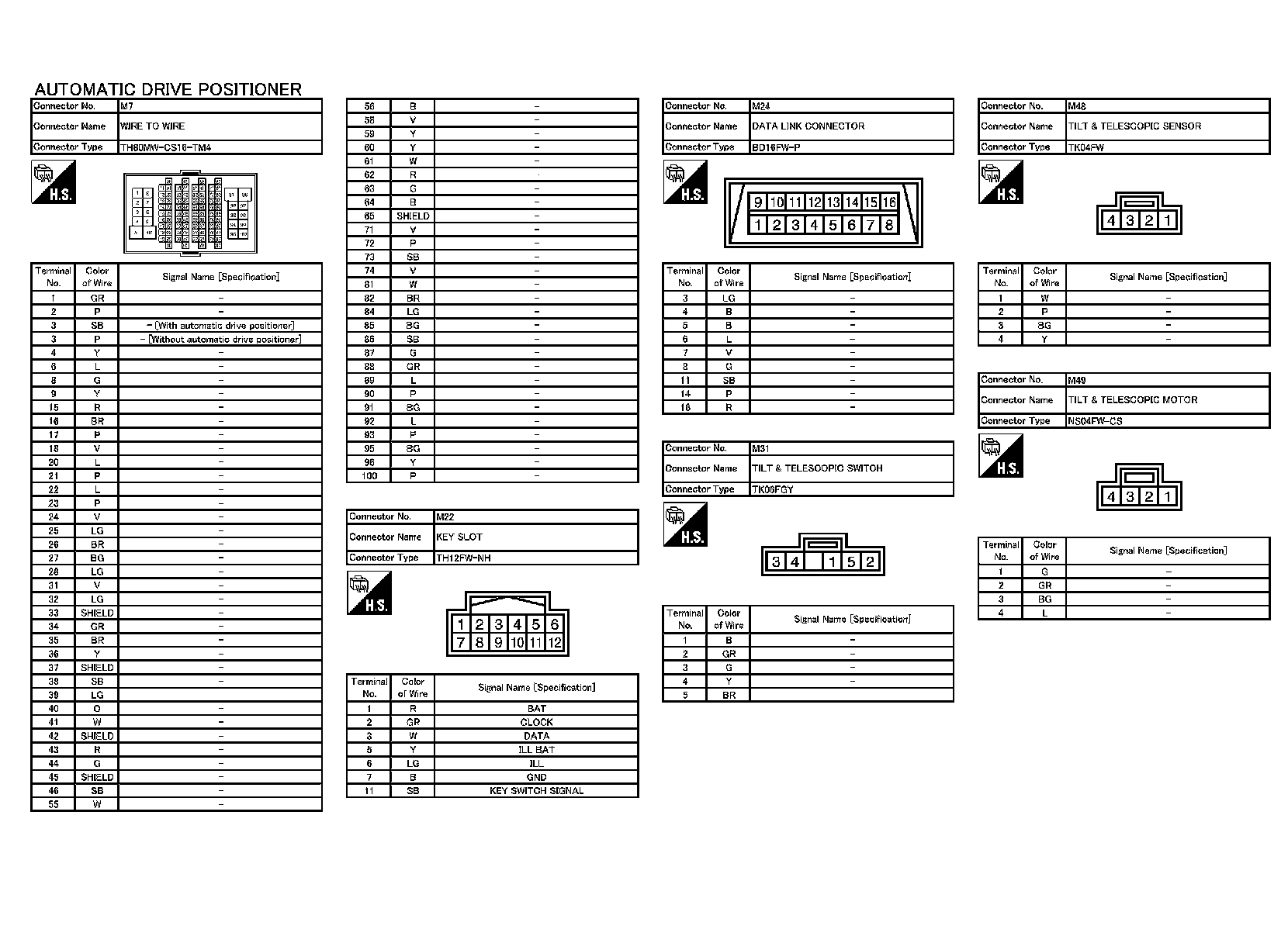

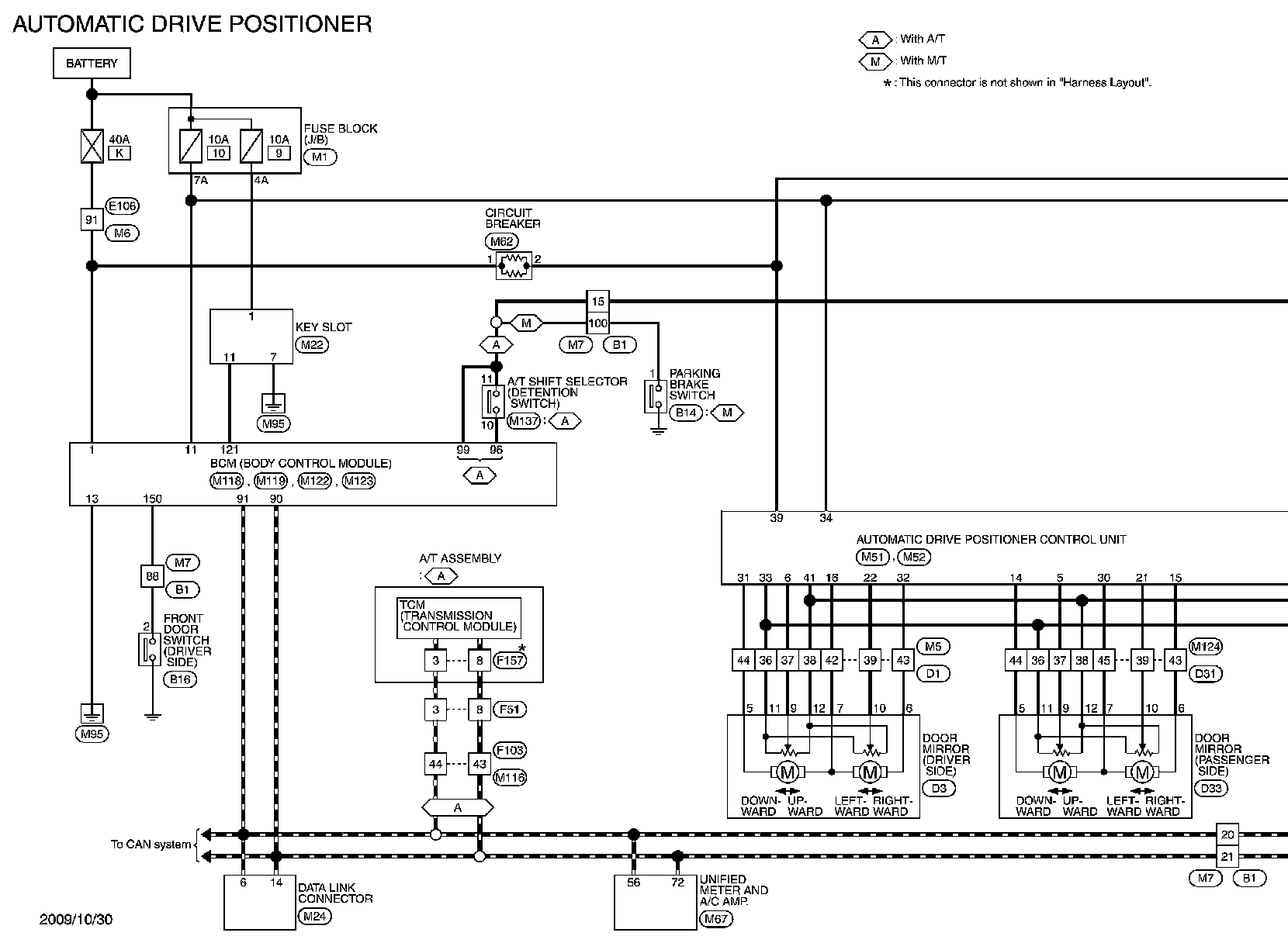

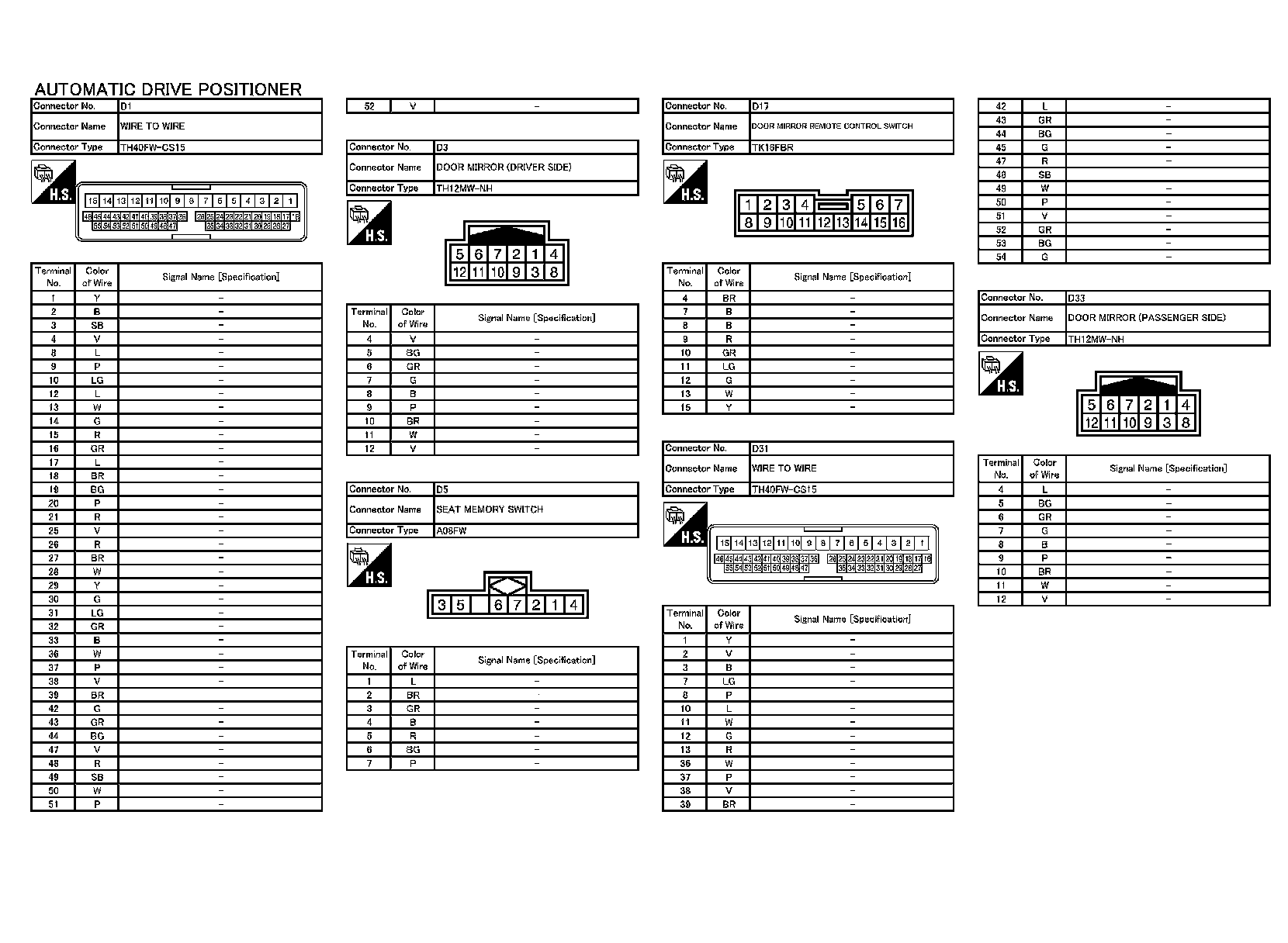

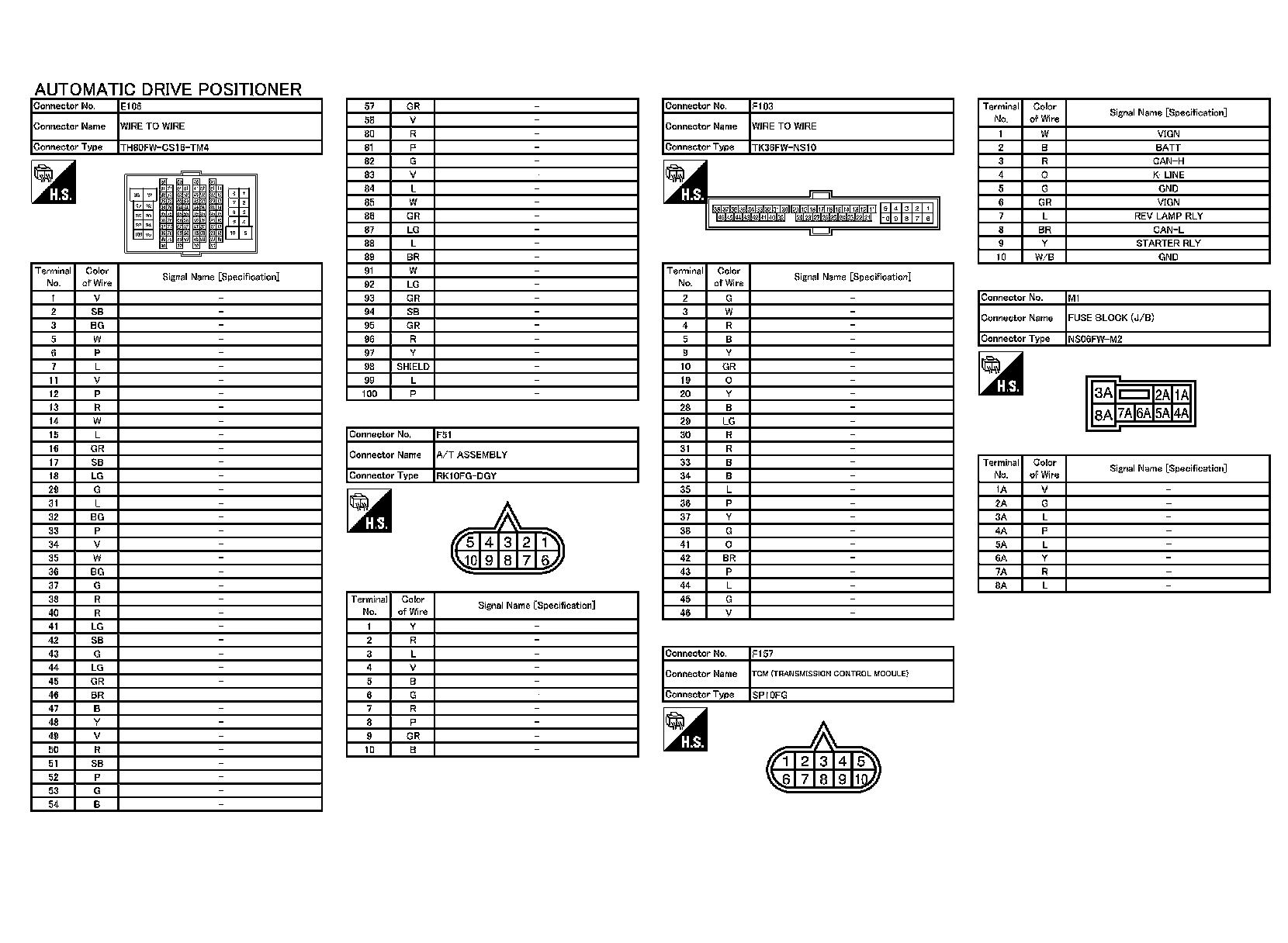

Wiring Diagram - AUTOMATIC DRIVE POSITIONER CONTROL SYSTEM -
