Removal and Installation

HEATED SEAT SWITCH


Removal and Installation


REMOVAL

CAUTION:
When removing and installing, use shop cloths to protect from damage.
1. Remove the console body assembly. Refer to A/T Models

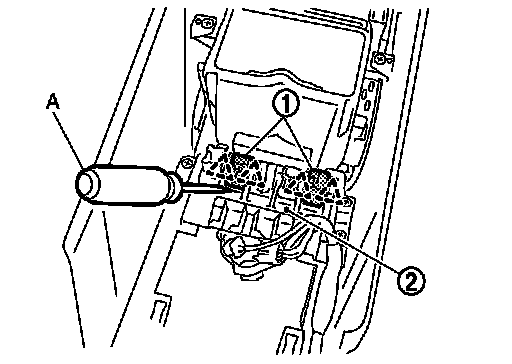

2. Remove heated seat switch (1) from switch bracket (2) with flat-bladed screwdriver (A).

triangle: pawl


NOTE:
The same procedure is performed for passenger side.

INSTALLATION
Install in the reverse order of removal.
