Driver Side





HEATED SEAT CONTROL UNIT


DRIVER SIDE : Reference Value

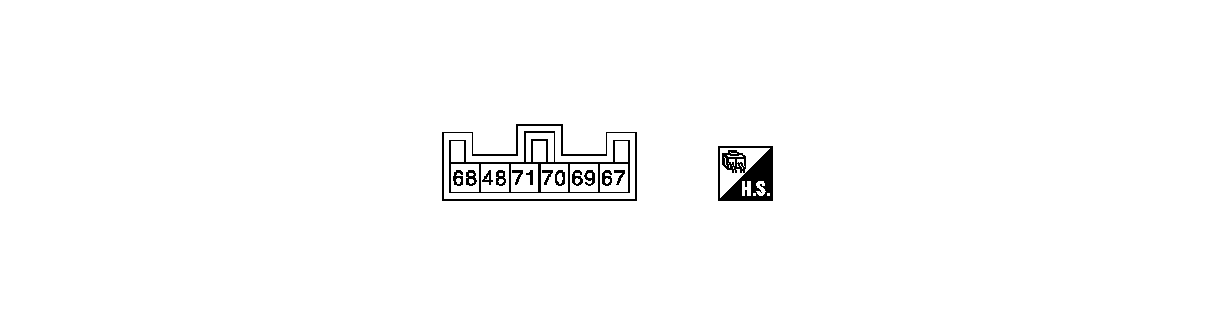

TERMINAL LAYOUT

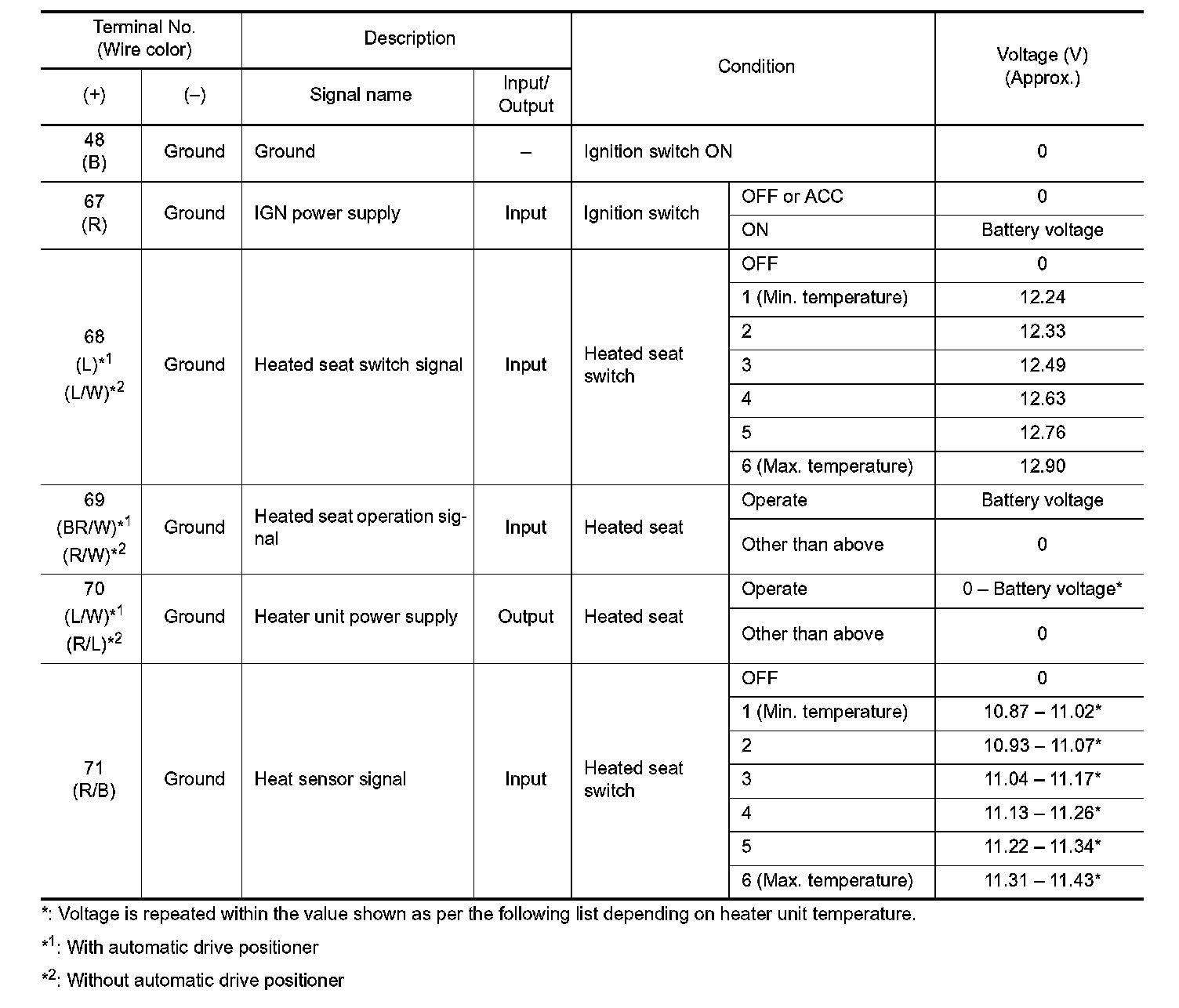

PHYSICAL VALUES
