G37x Coupe AWD V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Heating and Air Conditioning
>>
Refrigerant Pressure Sensor / Switch
>>
Service and Repair
>>
Heater and Air Conditioning Control System
>>
Exploded View
Exploded View

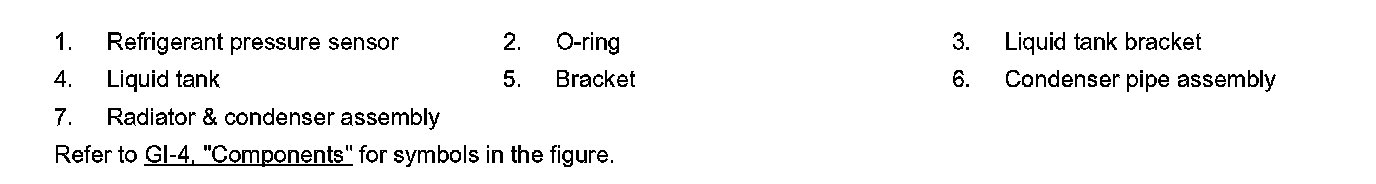

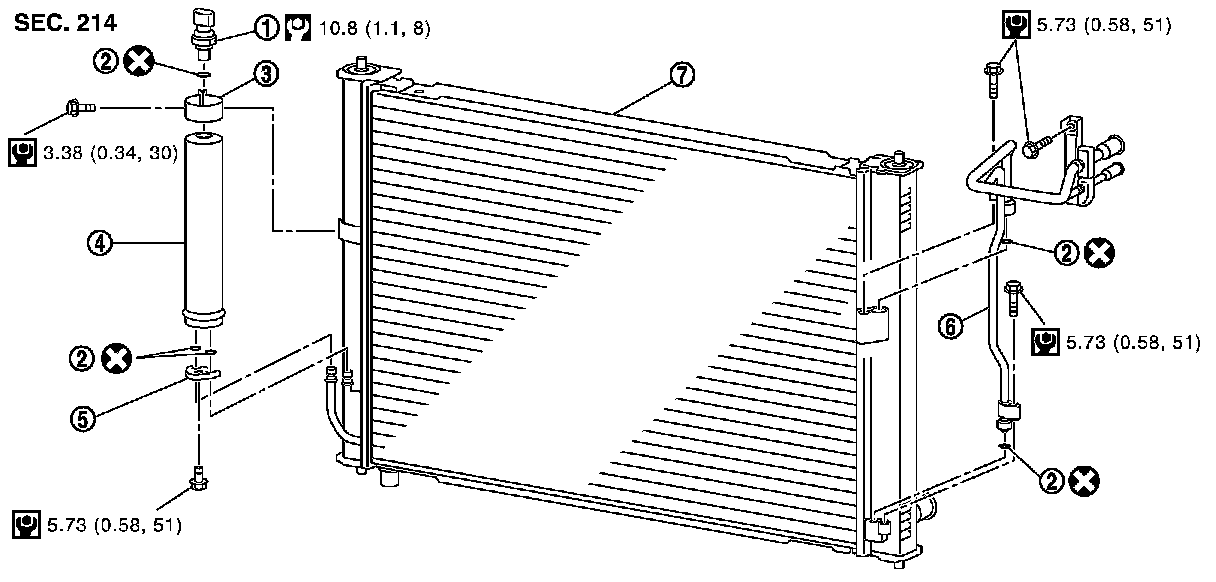

REFRIGERANT PRESSURE SENSOR
Exploded View
