Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2010
>>
G37x Coupe AWD V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Accessories and Optional Equipment
>>
Navigation System
>>
Testing and Inspection
>>
Pinout Values and Diagnostic Parameters
>>
Display Unit
Display Unit
DISPLAY UNIT
Reference Value

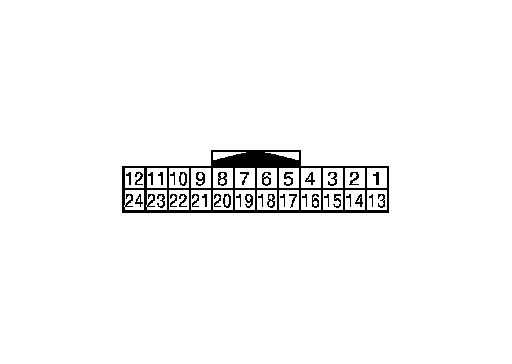

TERMINAL LAYOUT

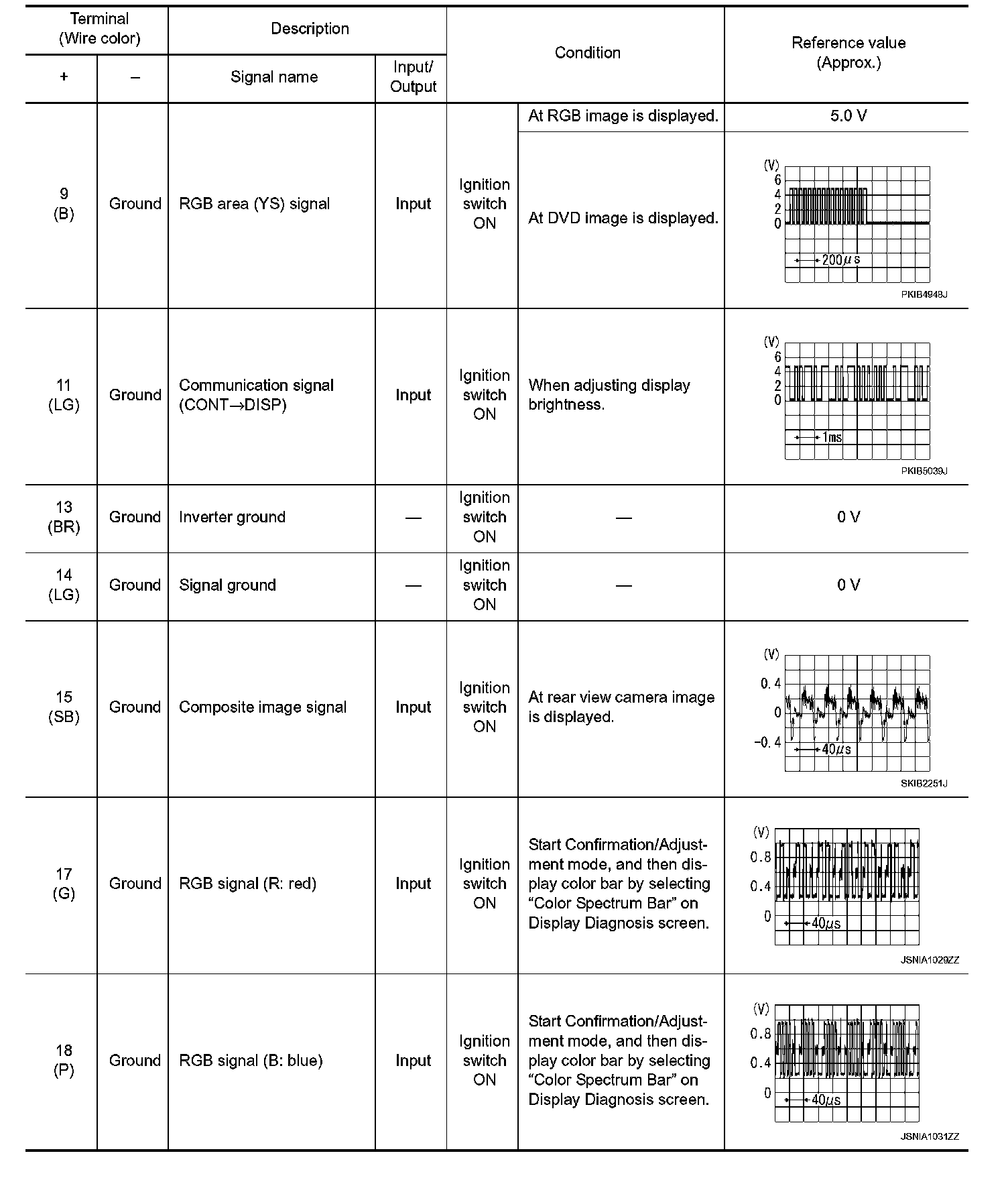

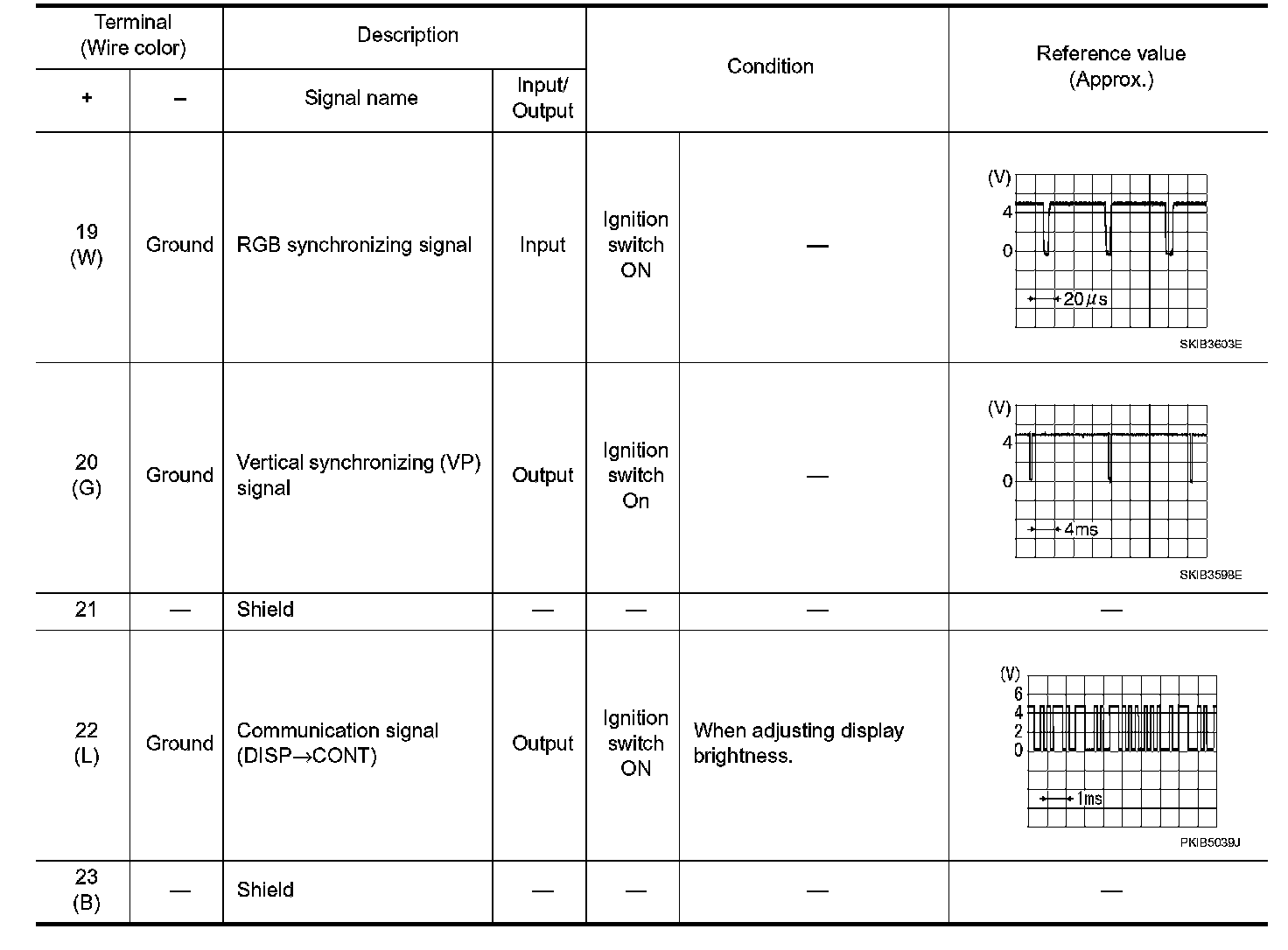

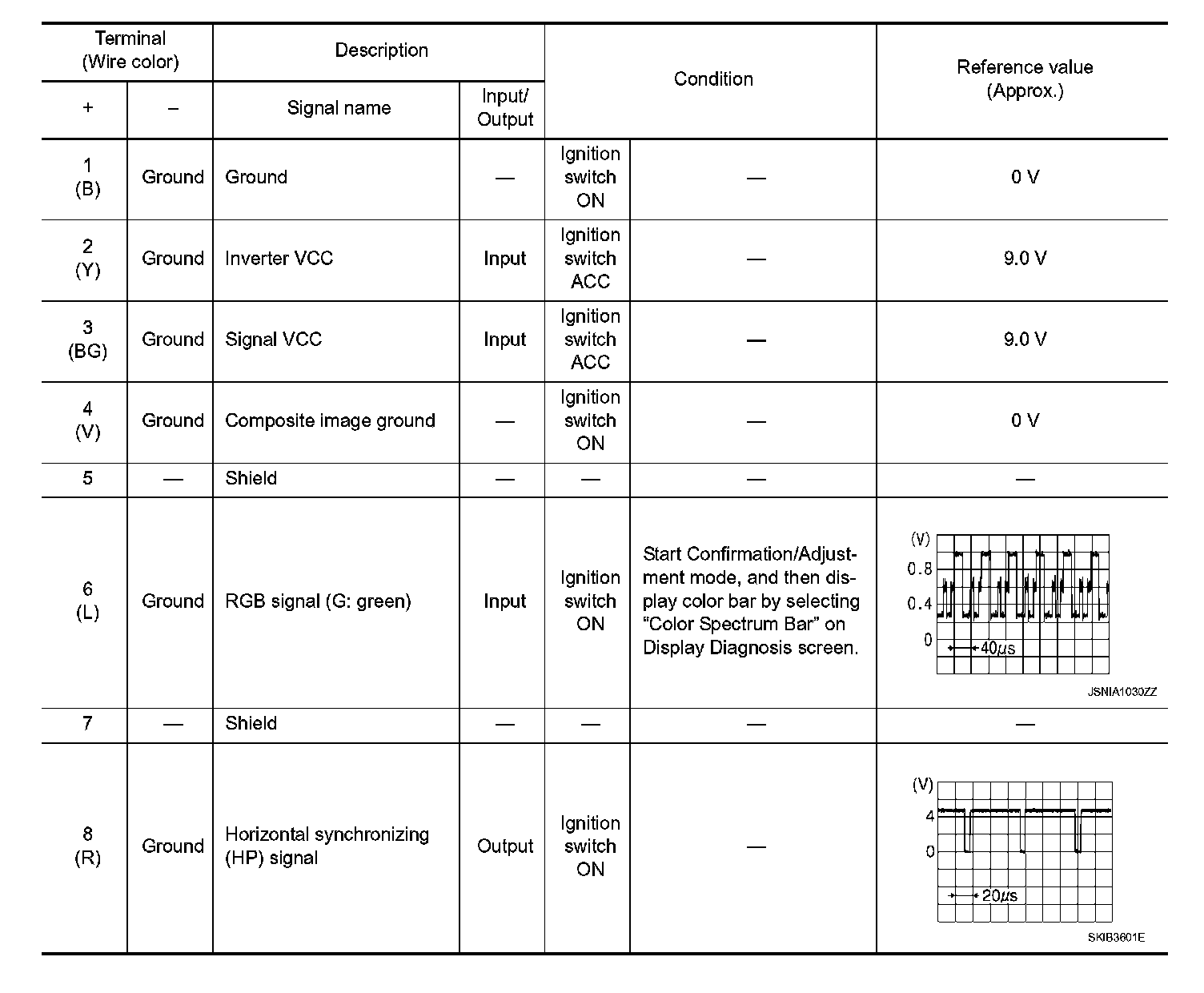

PHYSICAL VALUES
