Home
>>
Infiniti
>>
2010
>>
G37 Coupe V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Transmission and Drivetrain
>>
Automatic Transmission/Transaxle
>>
Transmission Cooler
>>
Service and Repair
>>
Removal and Replacement
>>
Exploded View
Exploded View

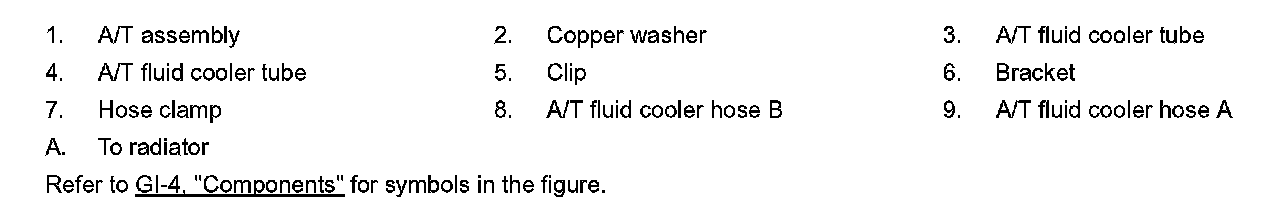

FLUID COOLER SYSTEM

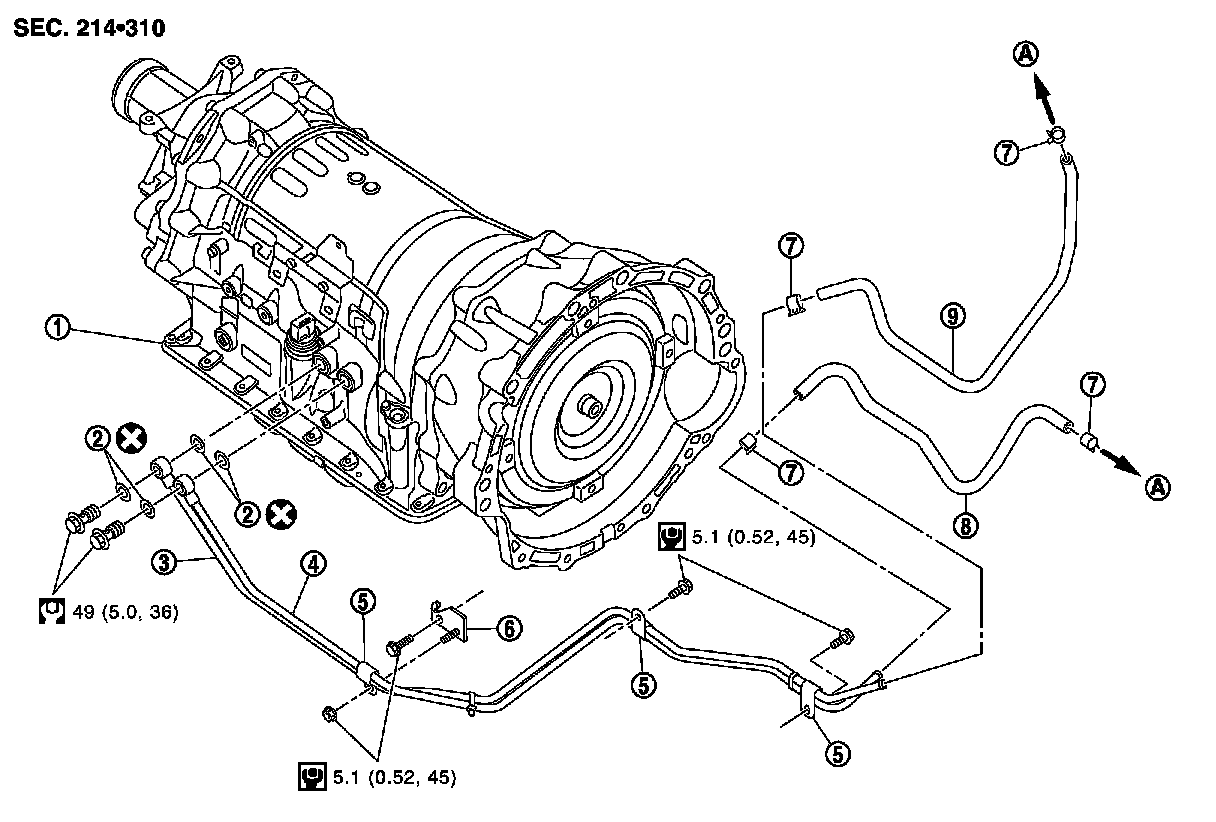

2WD 2WD : Exploded View
