Front Control Unit





4WAS FRONT CONTROL UNIT


Reference Value

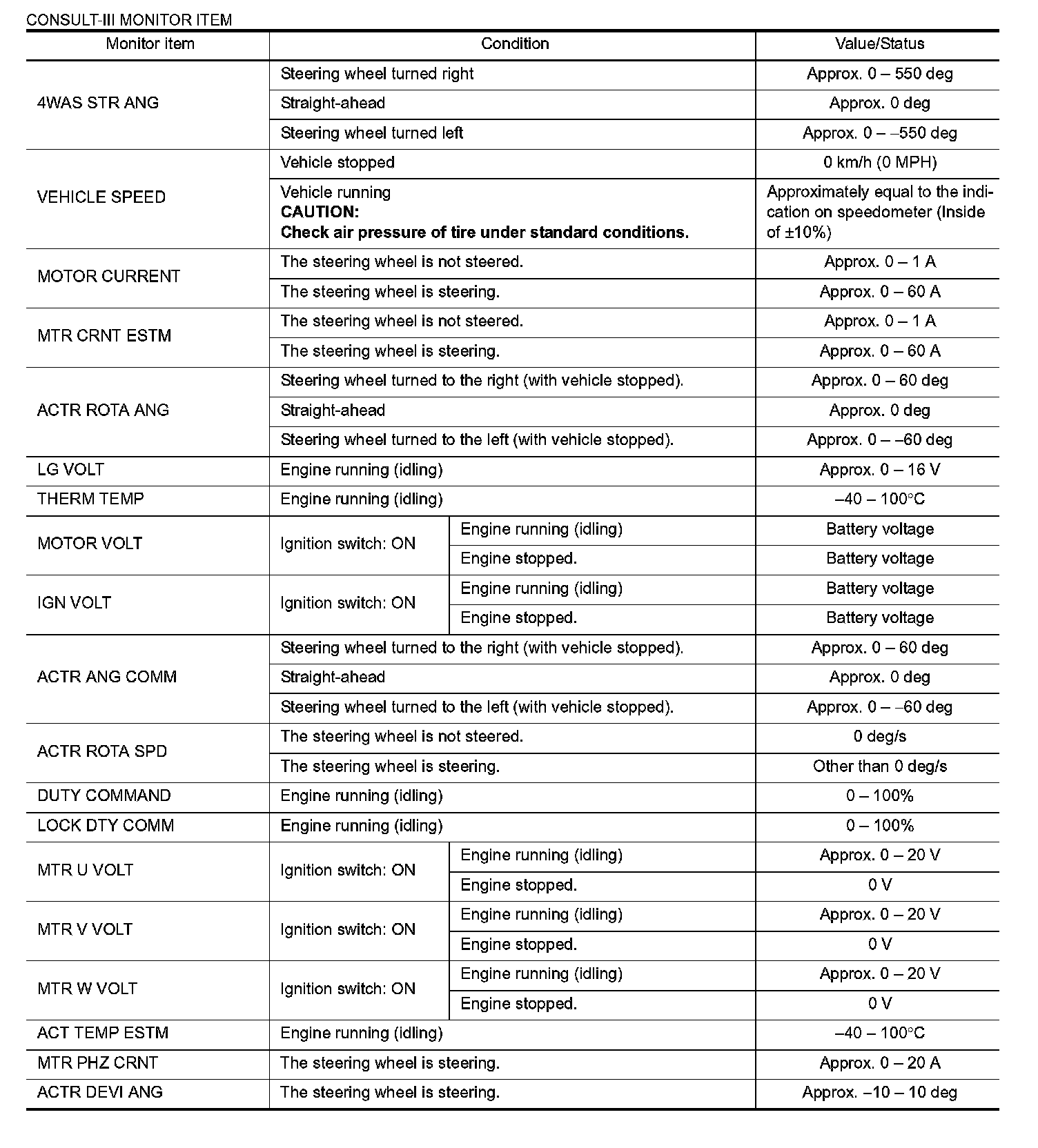

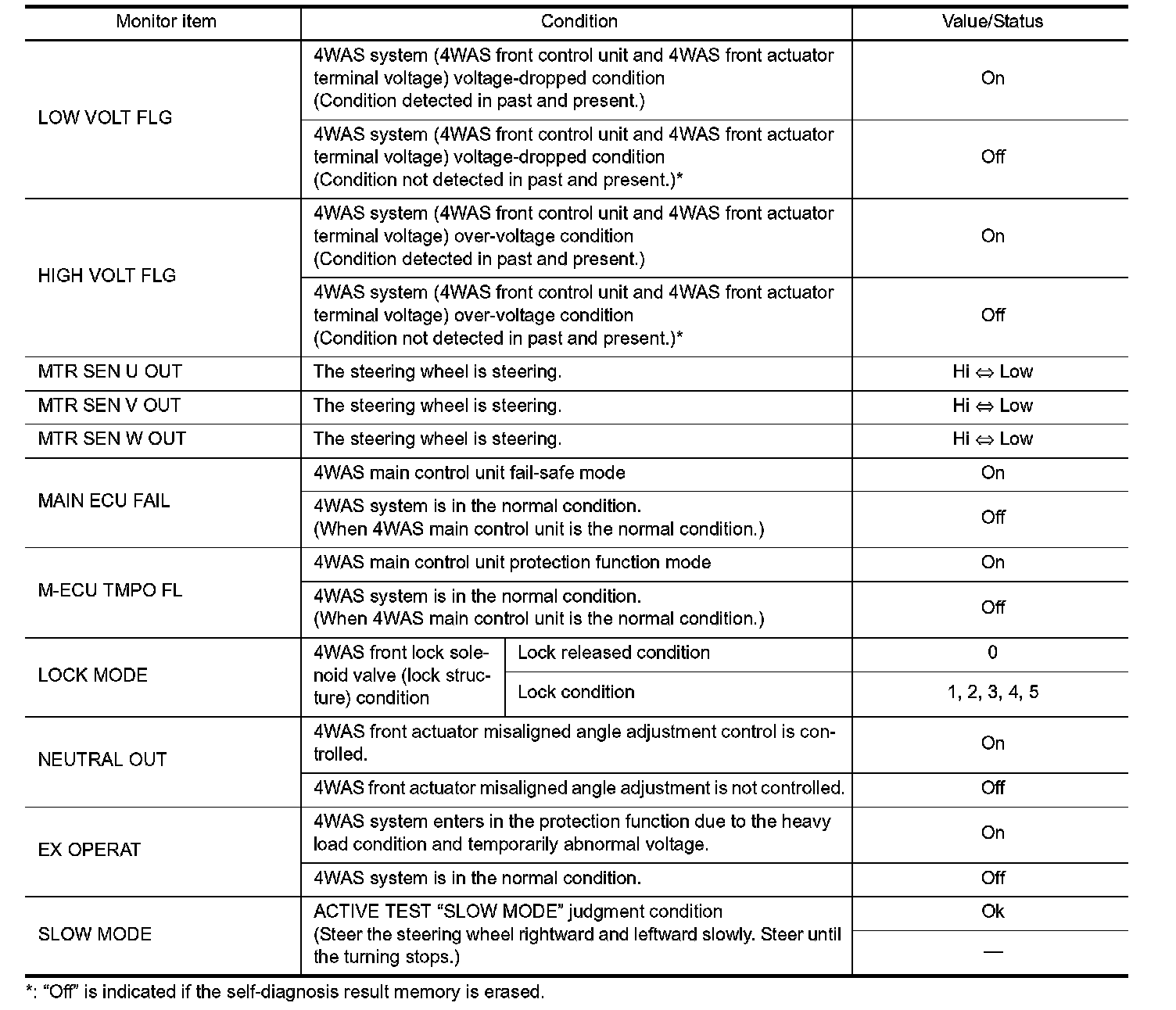

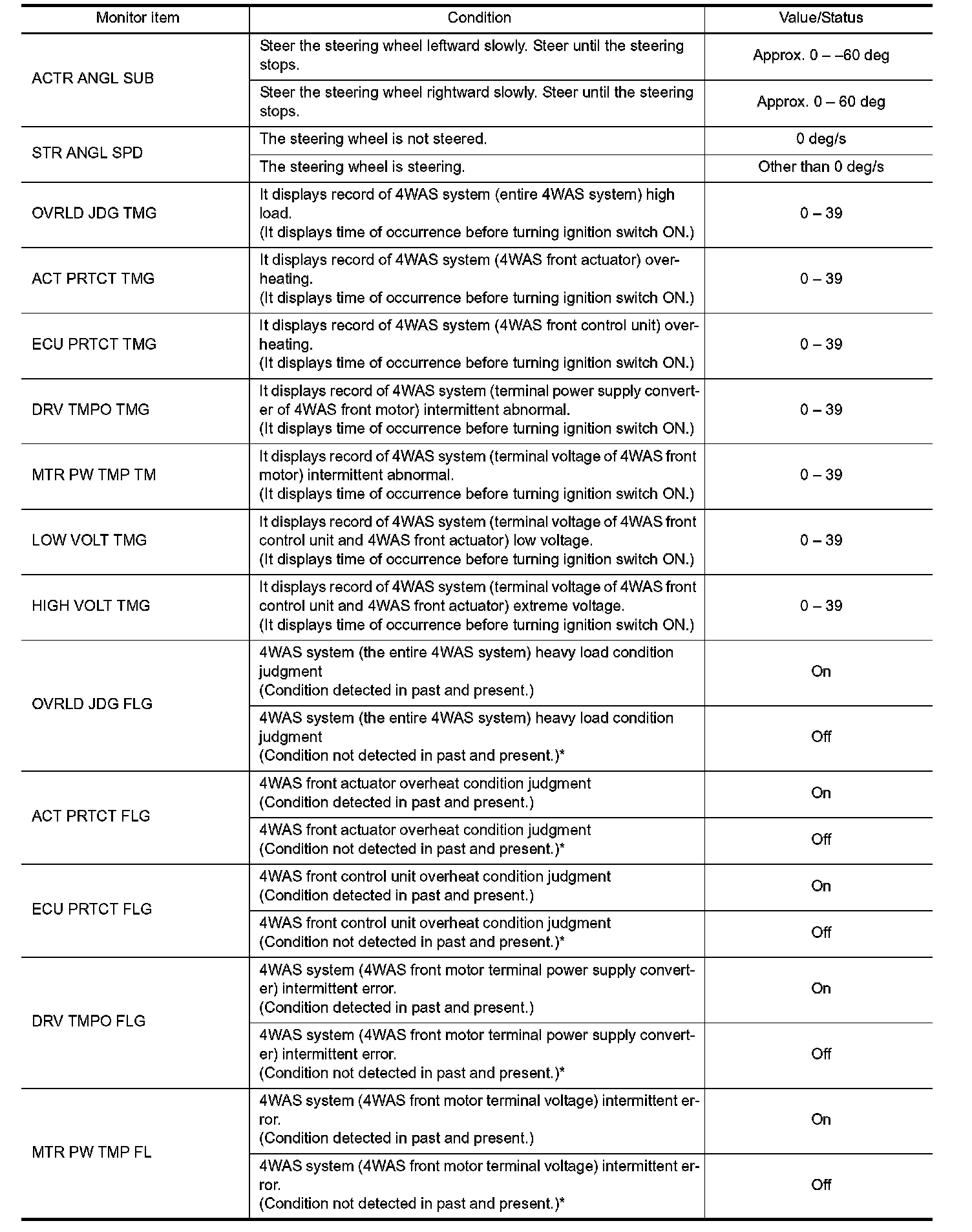

VALUES ON THE DIAGNOSIS TOOL

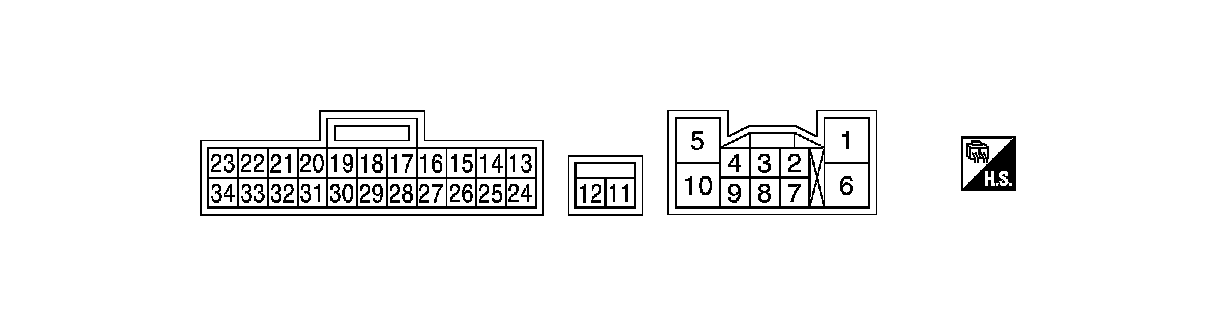

TERMINAL LAYOUT

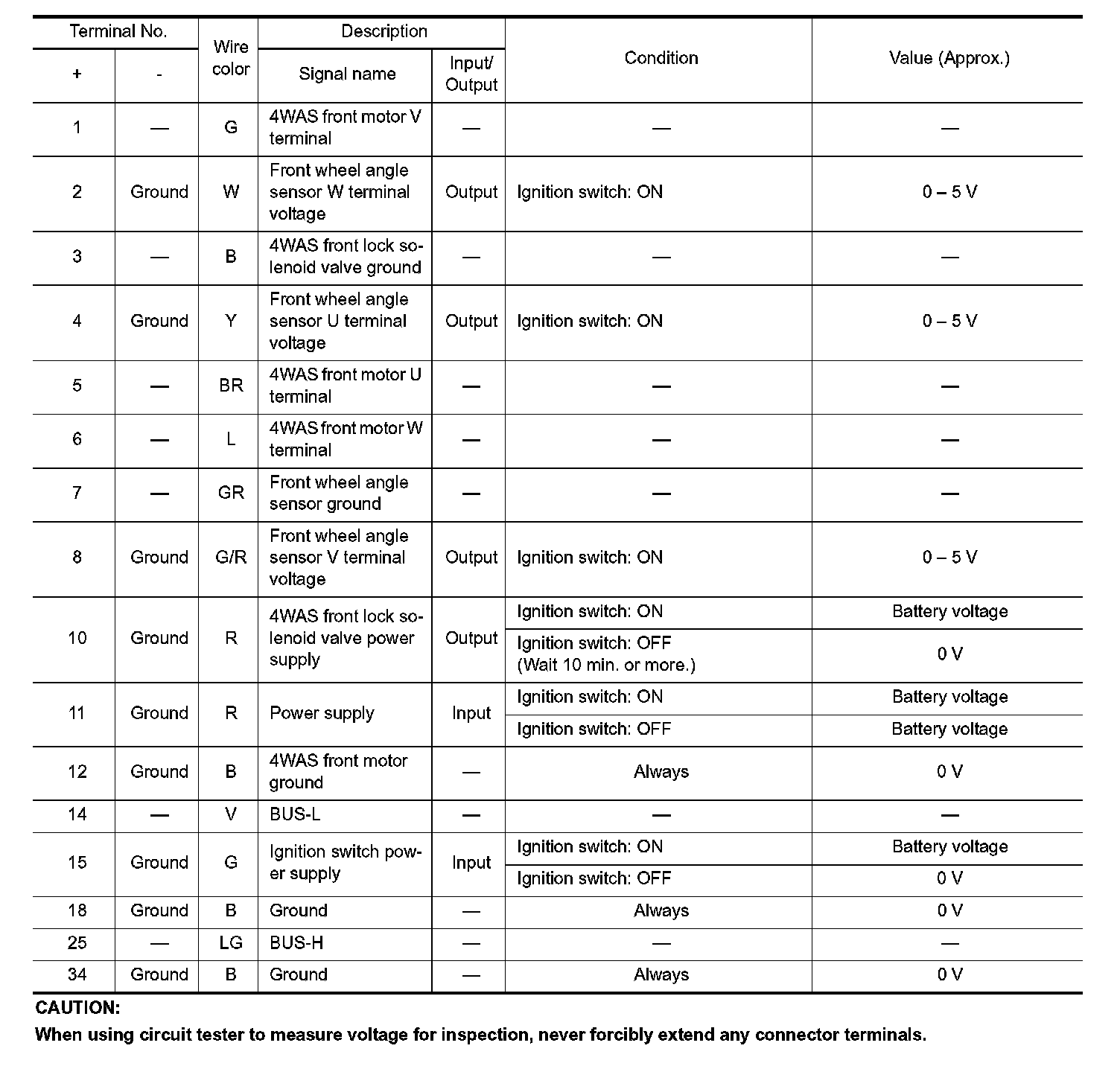

PHYSICAL VALUES
