Curiosii for ever!
: Car repair manuals for everyone.
Home
>>
Infiniti
>>
2010
>>
G37 Convertible V6-3.7L (VQ37VHR)
>>
Repair and Diagnosis
>>
Wiper and Washer Systems
>>
Wiper Motor Linkage
>>
Service and Repair
>>
Exploded View
Exploded View

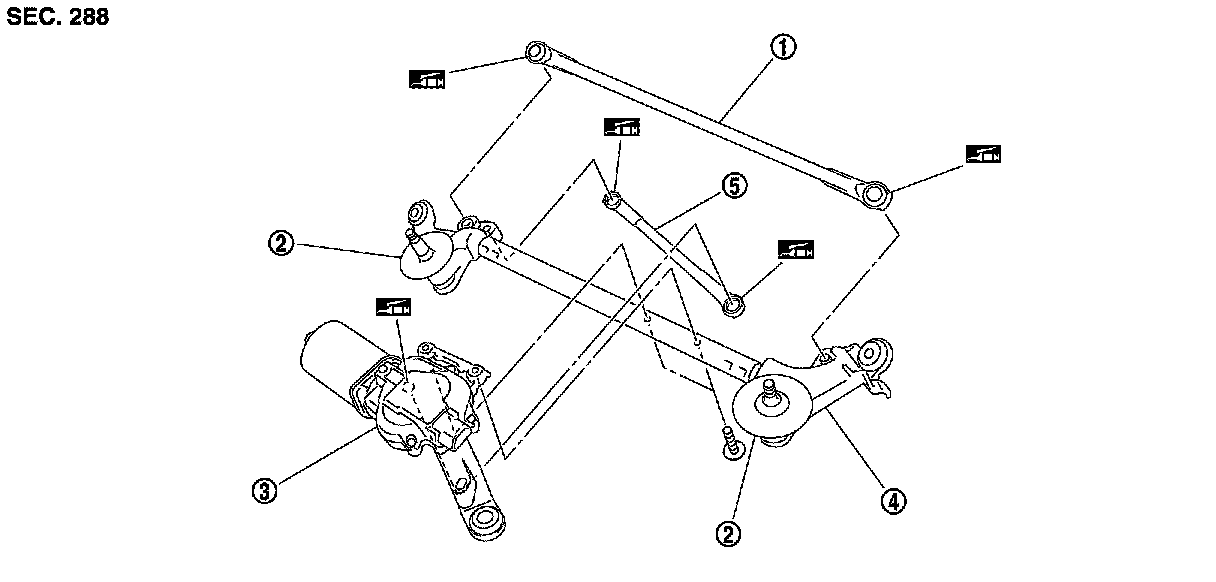

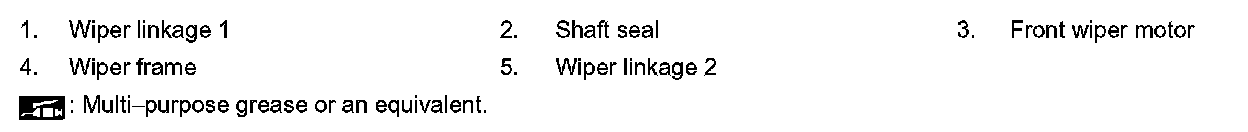

FRONT WIPER DRIVE ASSEMBLY
Exploded View
REMOVAL VIEW
DISASSEMBLY VIEW
