Front Fog Lamp System
>>

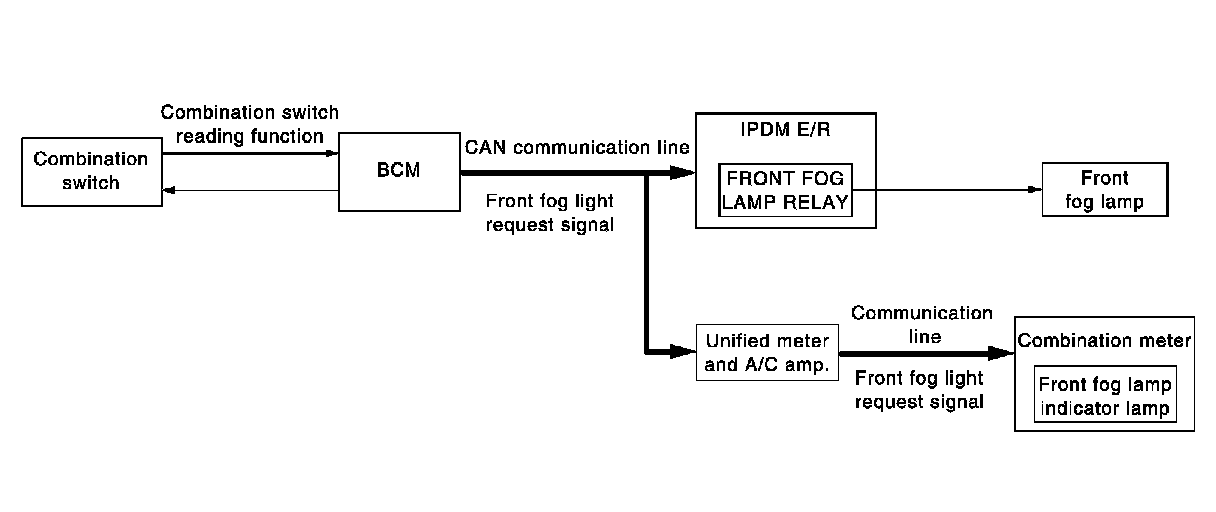

System Diagram
System Diagram
SYSTEM
FRONT FOG LAMP SYSTEM : System Diagram
